Product Introduction

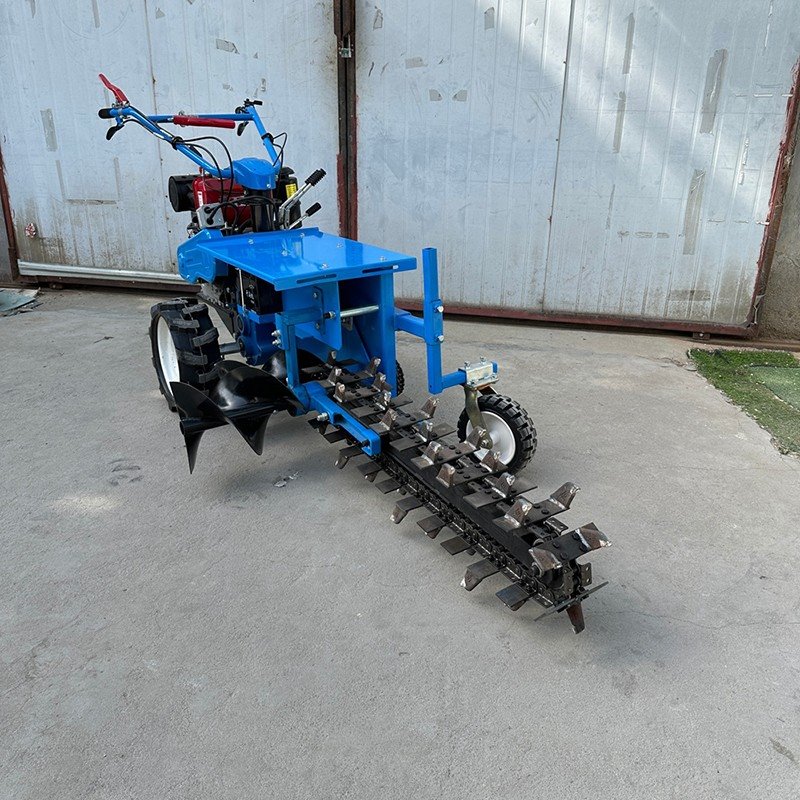

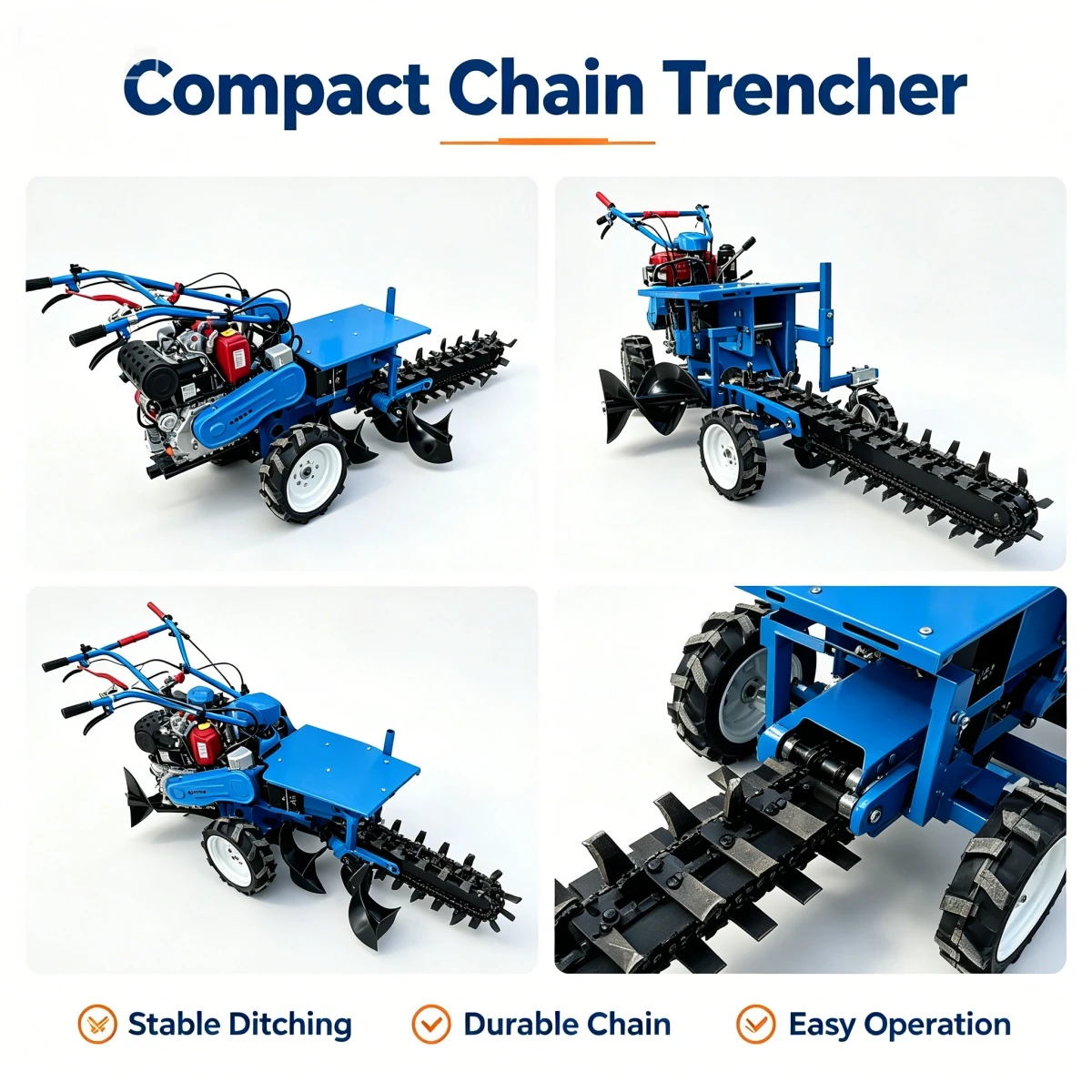

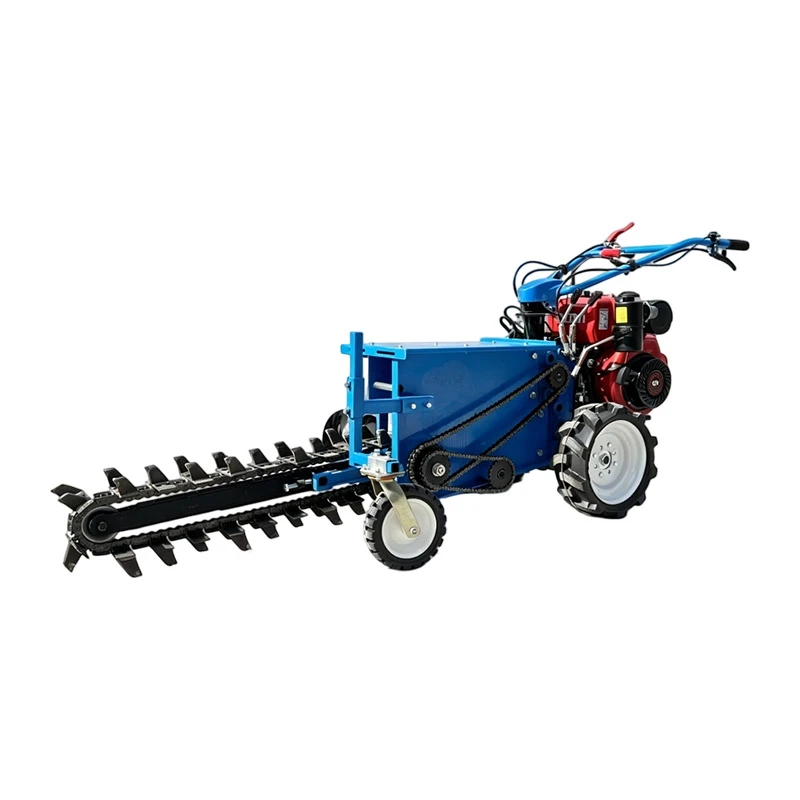

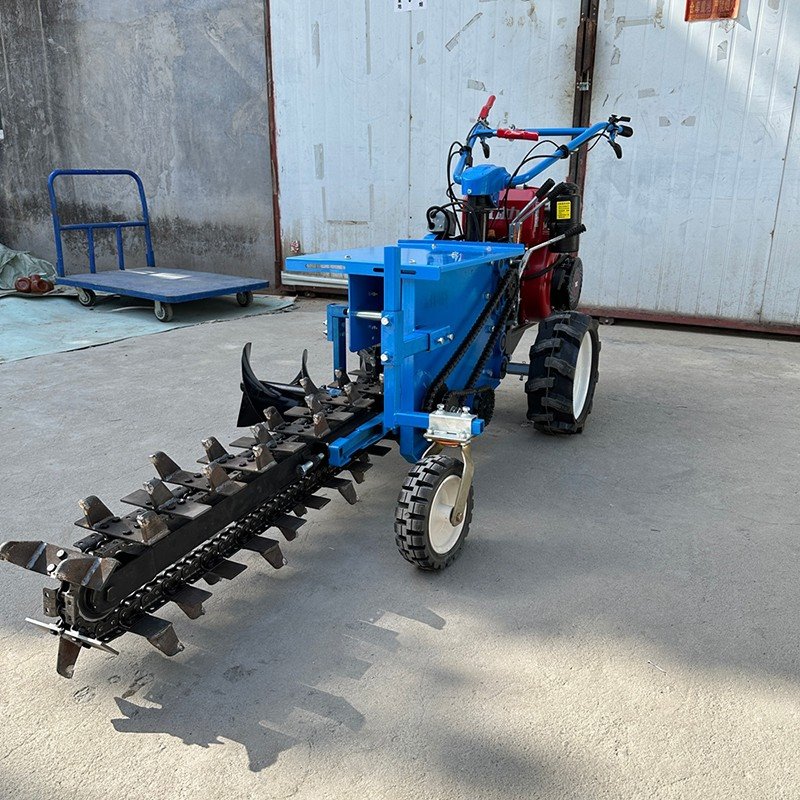

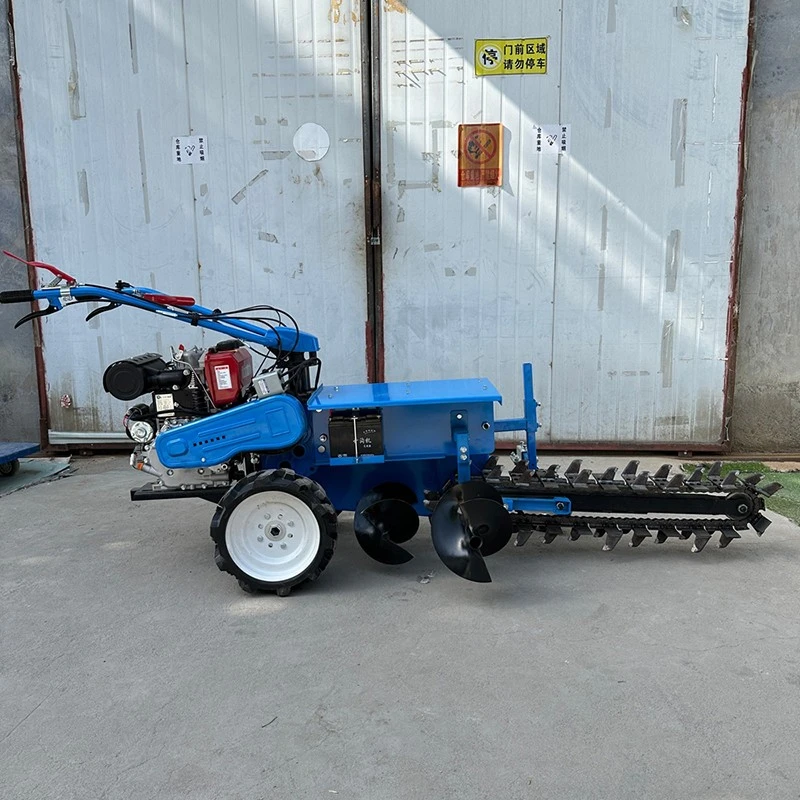

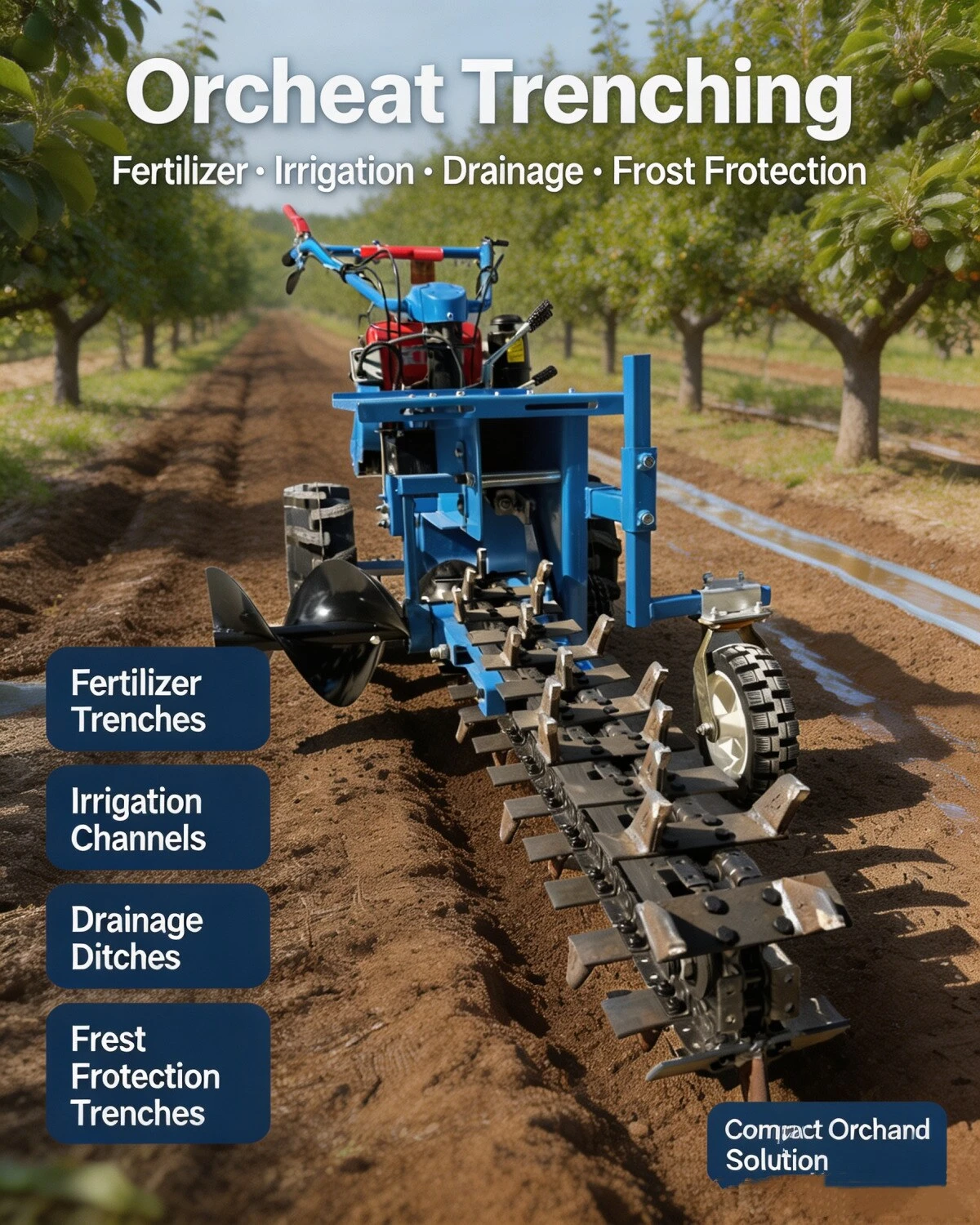

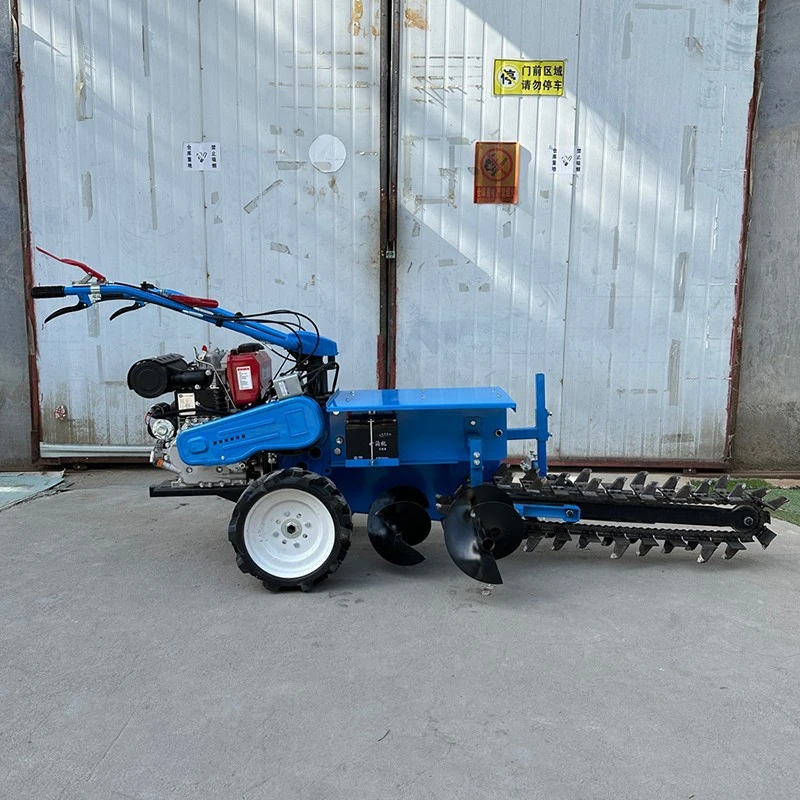

This orchard hand operated trenching machine is a self-walking compact digging device specially optimized for fruit grove management and small rural construction works. It requires no supporting tractor and only needs one operator to complete trenching work through adjustable hand control handles. As a flexible hand-held ditching machine, it handles narrow row spacing between fruit trees without damaging root systems; as a robust chain ditching machine, its continuous alloy chain cutting system creates neat vertical narrow trenches in soft loam, sandy soil and mild hard clay. This orchard hand operated trenching machine is driven by a 195 air-cooled diesel engine with electric one-key startup, featuring multi-speed forward and reverse walking design, widely used for orchard fertilization ditches, farm irrigation channels, residential cable laying and greenhouse drainage slotting tasks. Its slim body design makes it the ideal excavation equipment for confined plots where large tractor trenchers cannot access.
Material & Structural Specifications

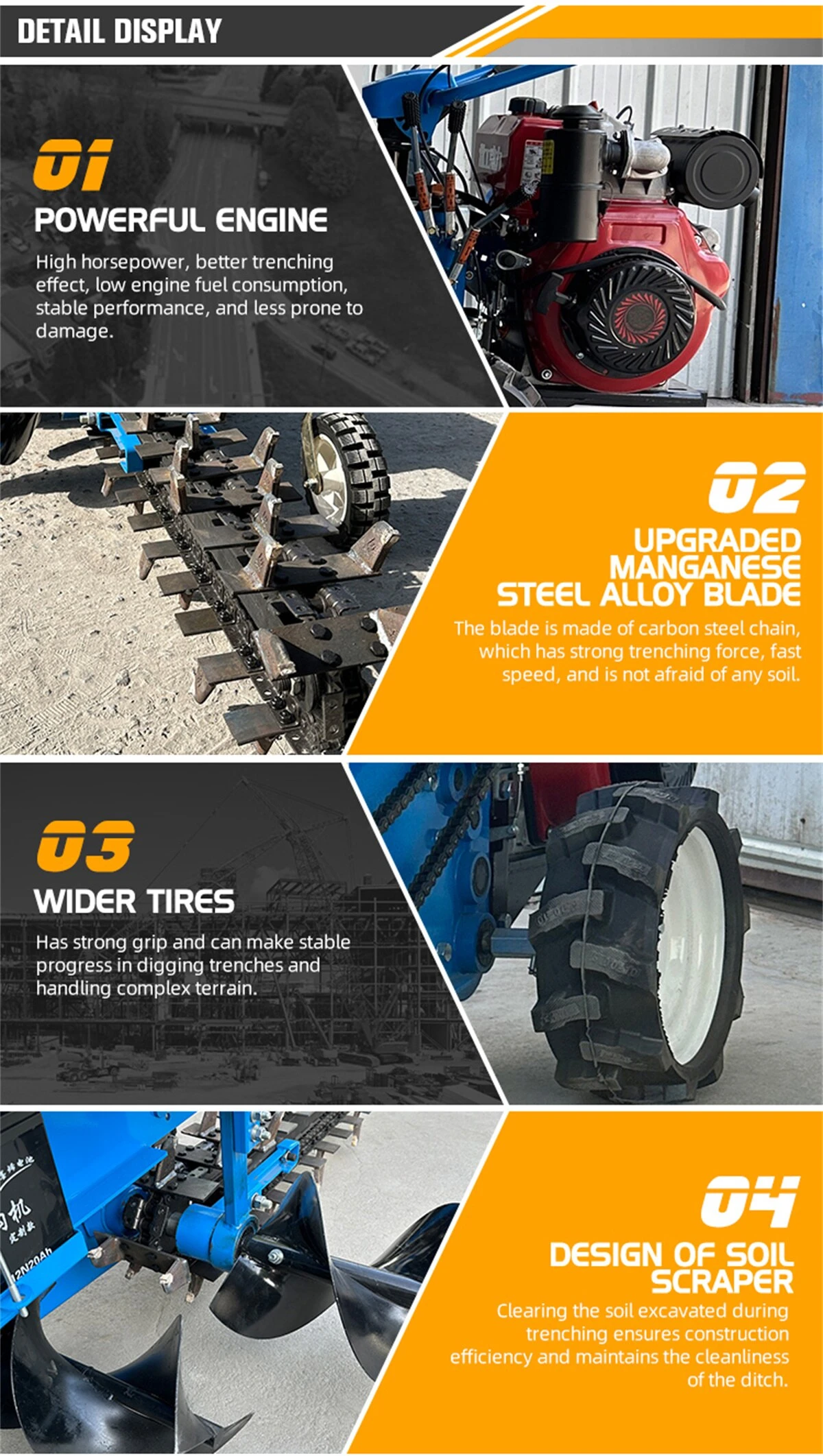

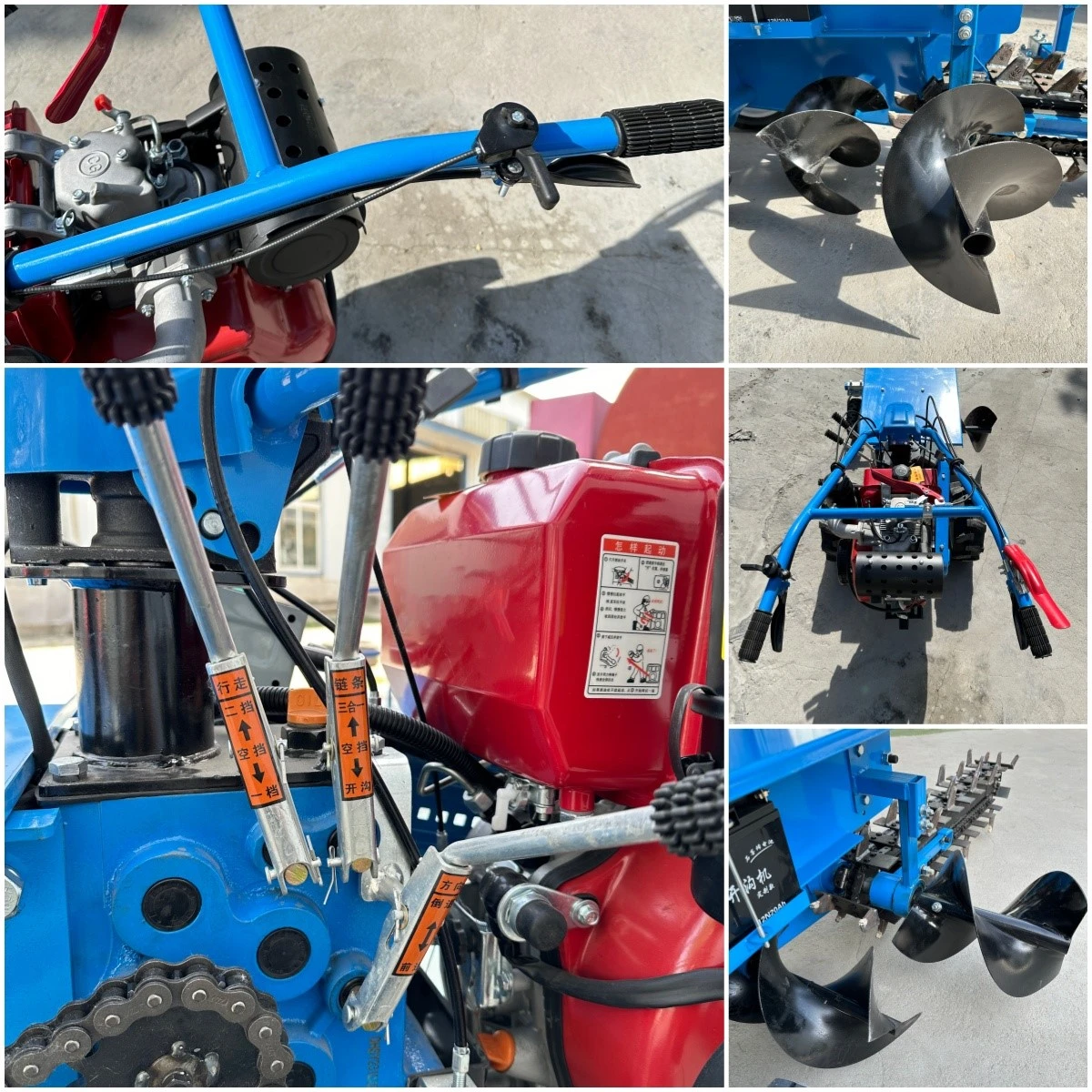

The whole machine frame is constructed from thickened high-strength carbon steel plate, processed by laser cutting and full penetration welding to avoid frame deformation under heavy digging loads. The core digging assembly adopts national standard manganese steel drive chain, paired with individually replaceable tungsten alloy steel cutting teeth that deliver outstanding wear and impact resistance against soil and small gravel. The internal transmission part uses a fully sealed cast steel gearbox with dust and waterproof design, matched with anti-aging rubber oil pipelines to adapt to all outdoor field working environments. All connecting fasteners are galvanized bolts to prevent rust after long-term exposure to damp farm soil. The side spiral soil throwing blades evenly disperse excavated soil on both sides of the trench to avoid backfilling.

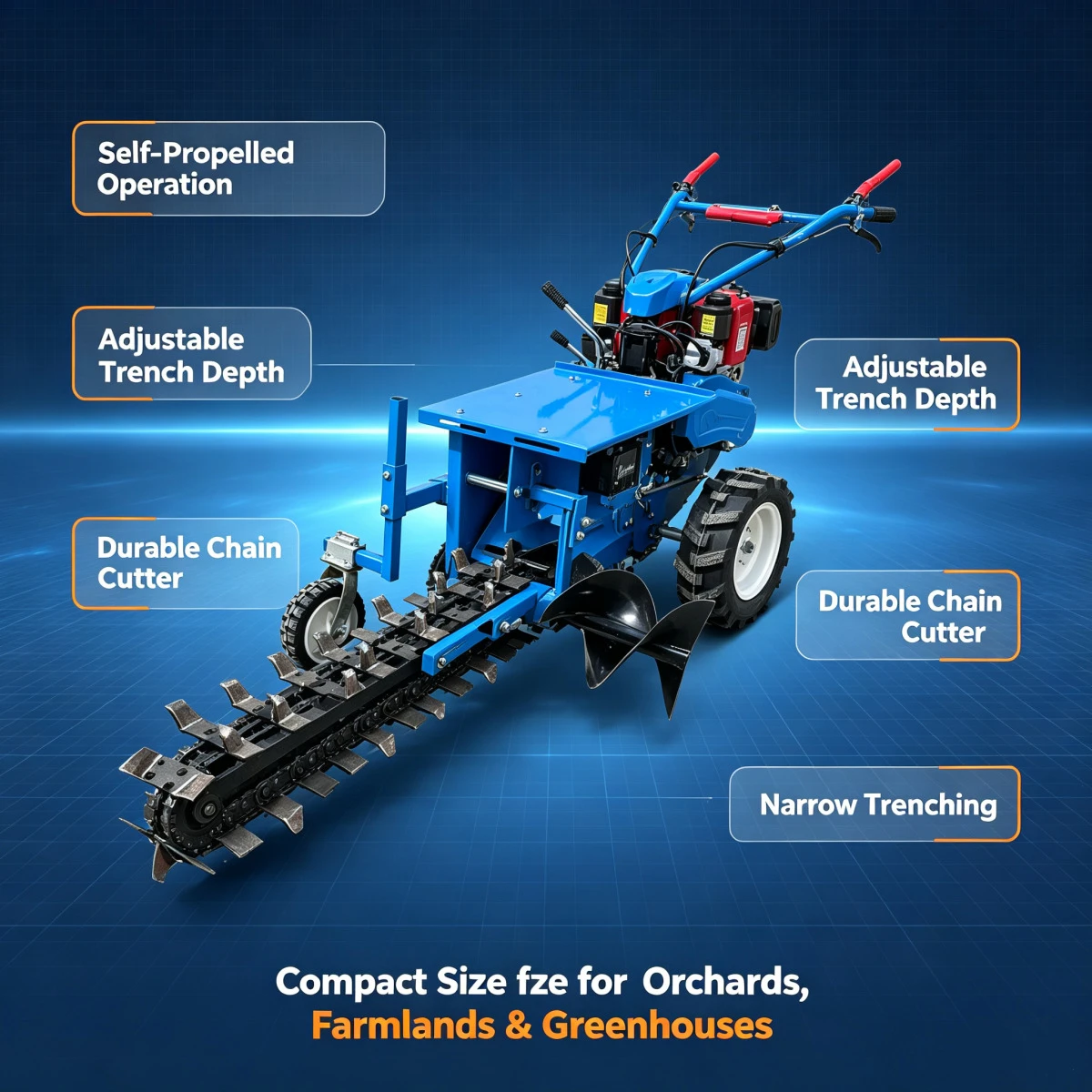

Core Competitive Advantages
Narrow Site Passability: Compact body structure easily navigates tight orchard rows, courtyard gardens and scattered small farm plots with limited operating space.
Single-Person Independent Operation: Built-in self-propelled walking system eliminates tractor rental fees and extra labor, greatly cutting construction costs for small contractors and fruit growers.
Low Maintenance Cost: Bolt-fixed cutting teeth can be replaced separately at low cost; daily maintenance only needs chain tightening and engine oil replacement, repairable at local rural service shops.
Stable Continuous Operation: Sealed gearbox effectively blocks mud and debris, lowering failure rates during long-hour non-stop field excavation.
Customizable Trench Sizes: Single and double chain configurations provide multiple width and depth combinations to match fertilization, pipeline and drainage projects.

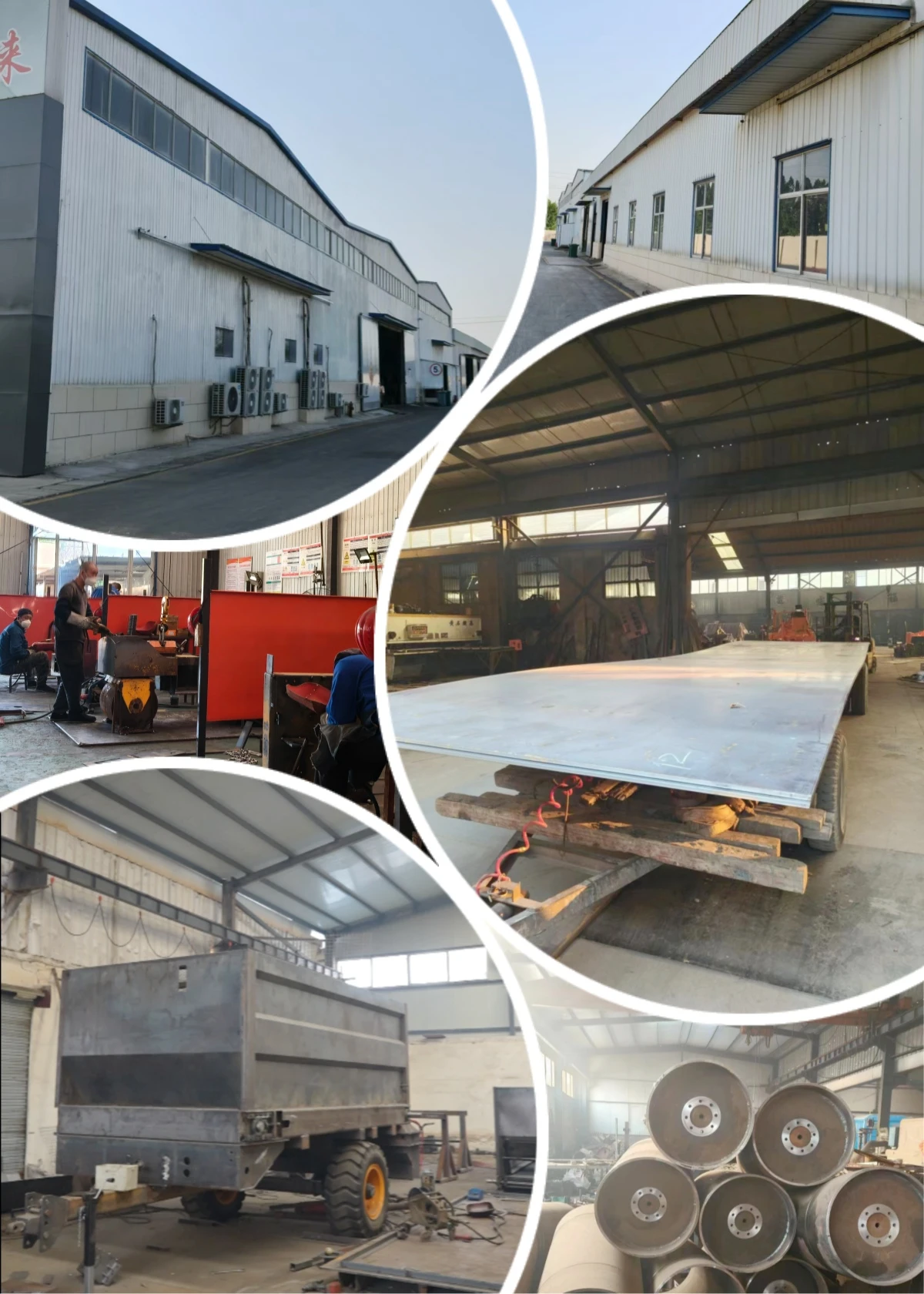

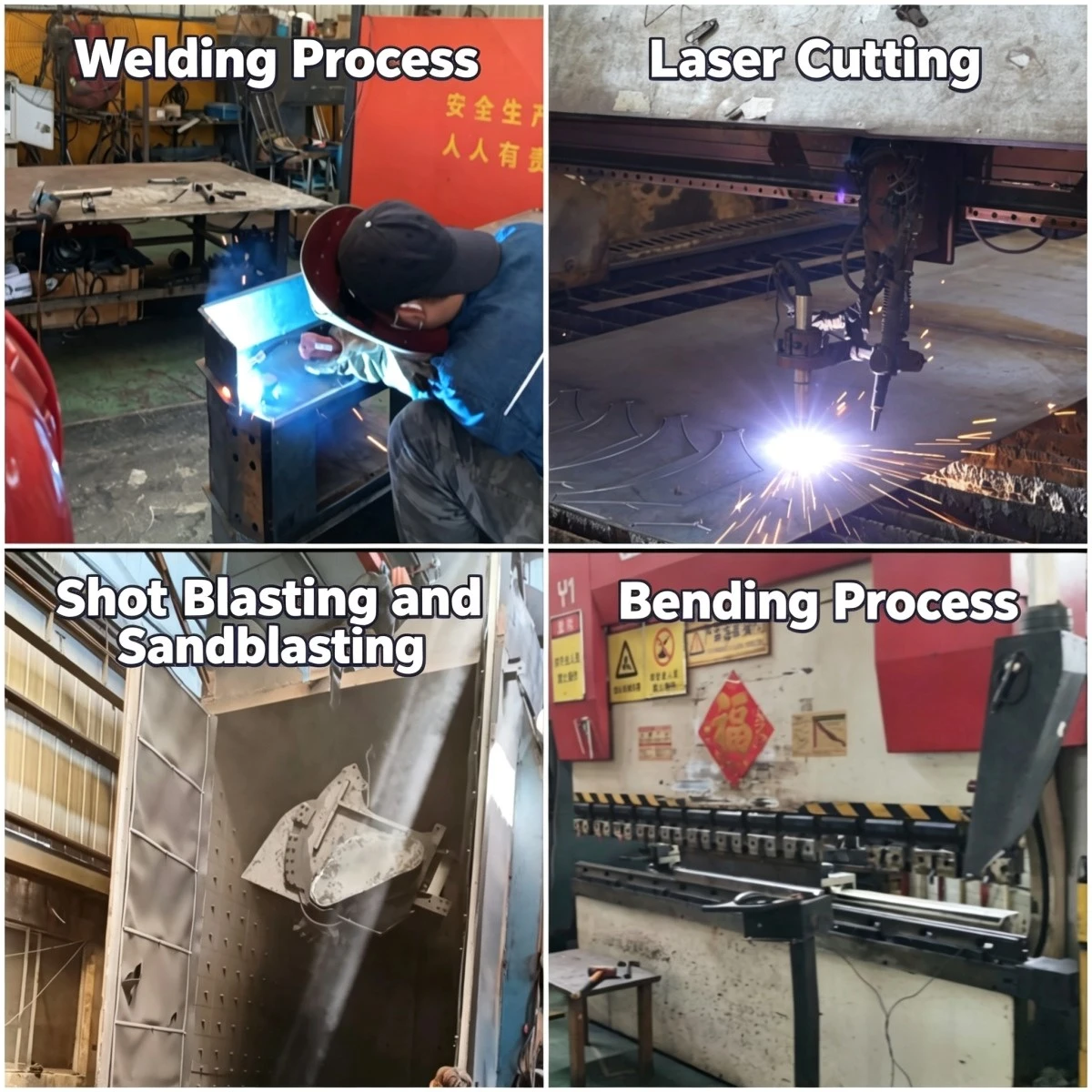

Standardized Manufacturing Process
Every orchard hand operated trenching machine goes through four strict standardized production procedures to guarantee stable quality for bulk importers:
Laser Cutting
Precise blanking for all steel components to eliminate dimensional errors.
01
CNC Bending
Automated bending for brackets to maintain structural rigidity under heavy load.
02
Shot Blasting & Sandblasting
Full surface rust removal to enhance paint adhesion and anti-corrosion service life.
03
Full Seam Welding
Certified welders complete seamless welding on all stress-bearing joints to prevent cracking in harsh soil conditions.
04
FAQ
1.What power unit drives this orchard trenching equipment?
A: It is equipped with a 9.2KW 195 air-cooled diesel engine, supported by a 12V 20A battery for convenient electric startup.
2.How many walking gears does this self-propelled trencher offer?
A: It comes with 2 forward gears, neutral gear and 2 reverse gears for flexible speed adjustment on uneven farm terrain.
3.What maximum digging depth can single chain models reach?
A: Single chain versions can dig up to 1.2 meters deep with a 10cm wide cutting chain.
4.Is this machine suitable for rocky hard soil orchards?
A: It works well on soft soil and mild clay; large hard stones need manual clearing in advance to protect alloy cutting teeth.
5.What are the net weights of single and double chain models?
A: Single chain machine weighs 280kg, double chain model weighs 300kg for stable wide trench digging.
6.Are spare cutting teeth provided with bulk container orders?
A: A full set of free spare alloy teeth is included for FCL bulk purchases to support on-site quick replacement.
7.What main application scenarios fit this chain ditching machine?
A: Fruit tree fertilization furrows, farm irrigation channels, community fiber optic cable laying, greenhouse drainage and small municipal pipeline projects.
8.What after-sales technical support can we get after purchasing?
A: Core engine and gearbox enjoy a 12-month factory warranty, plus 24/7 multilingual online video troubleshooting guidance.
