Product Description

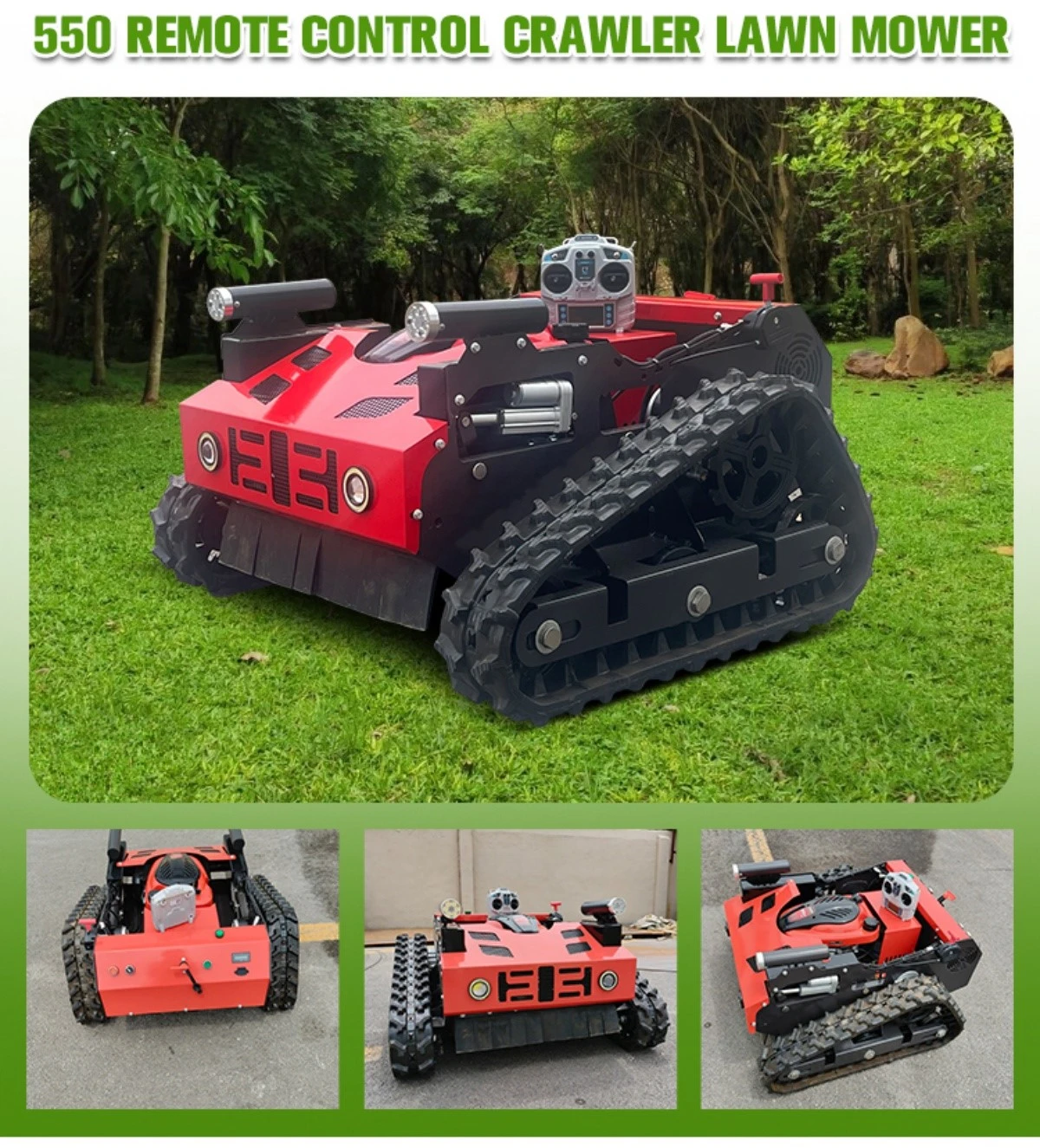

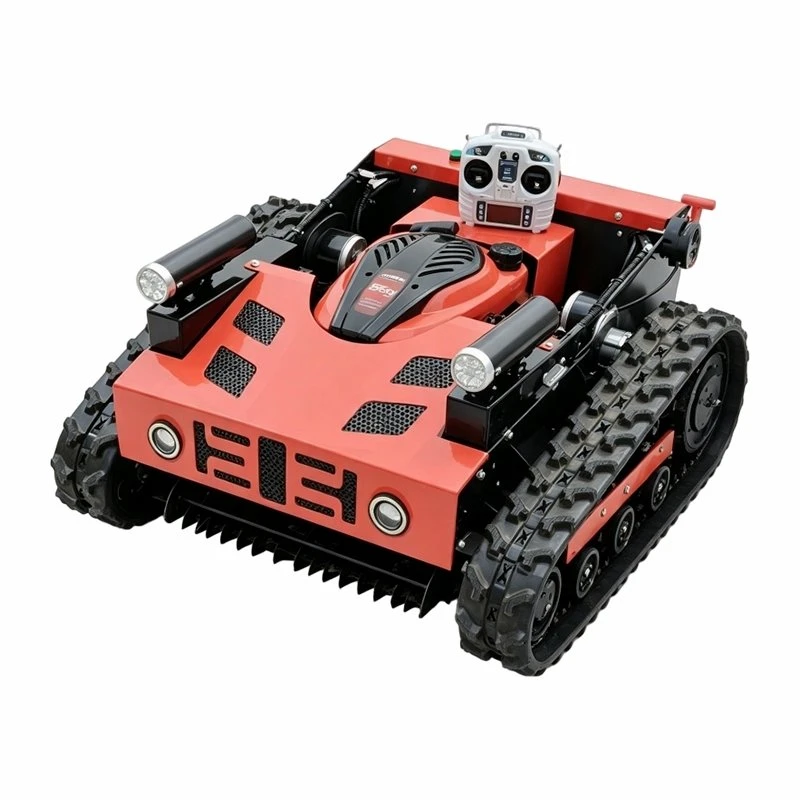

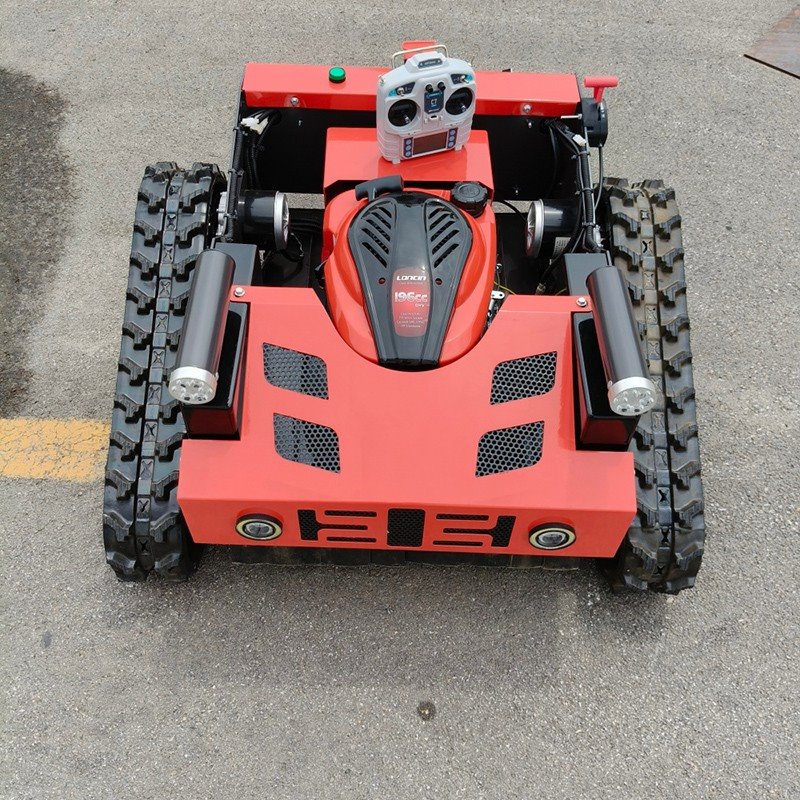

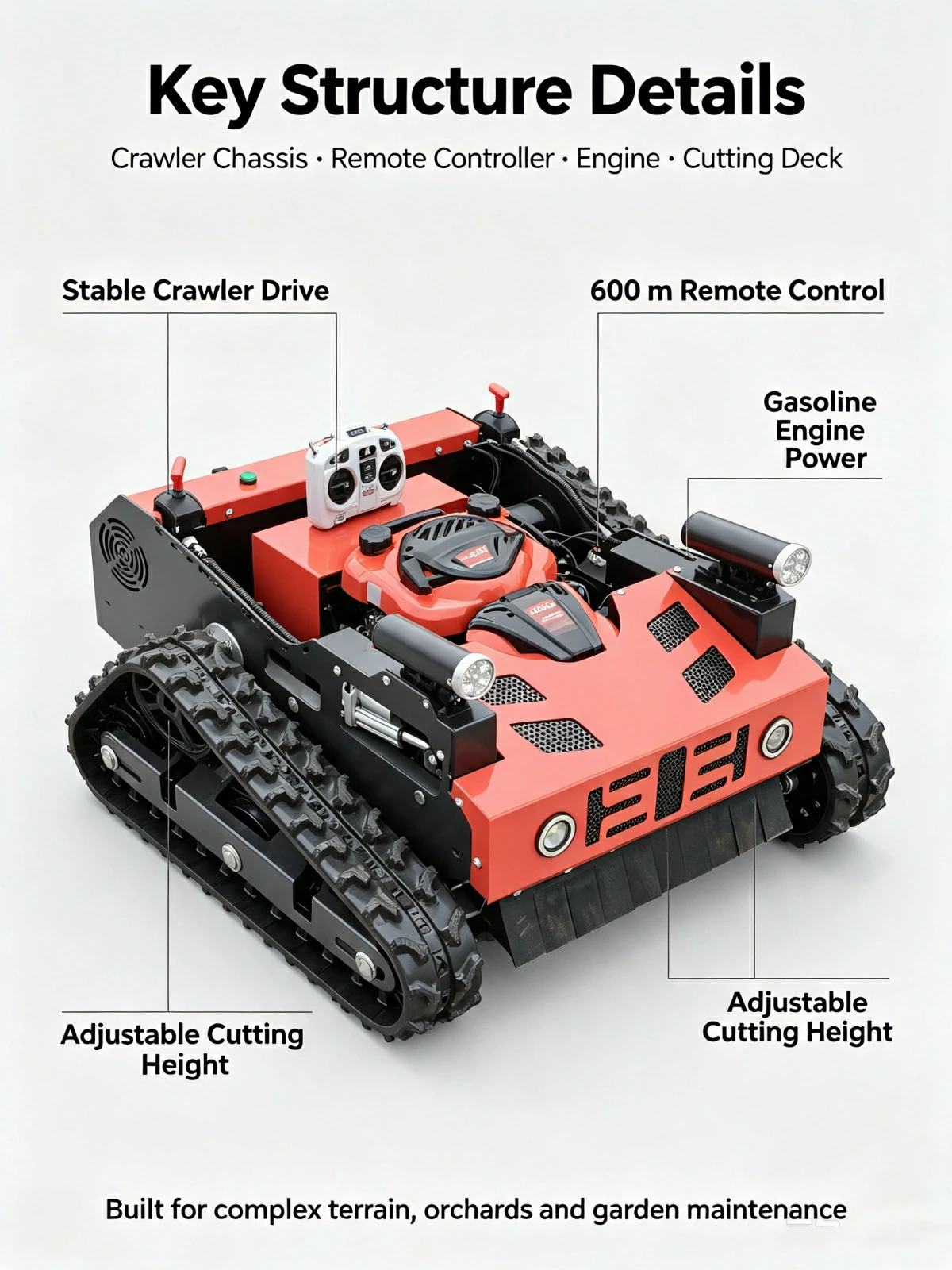

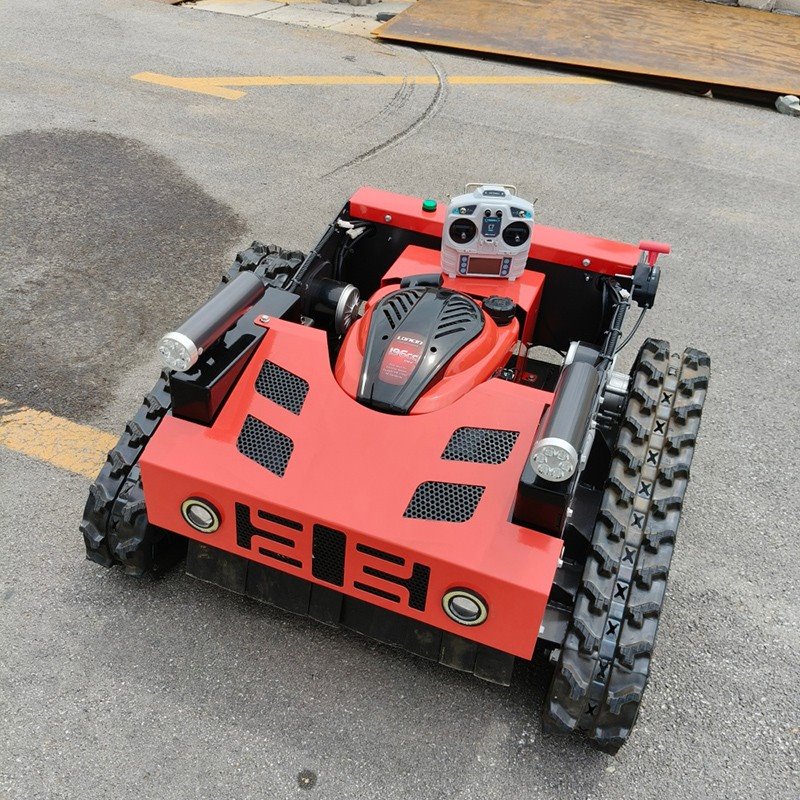

This intelligent tracked lawn maintenance machine adopts a split power layout. The crawler chassis relies on electric motors for travelling, while the cutting disc is driven by a reliable gasoline engine. Operators can control all operations remotely, keeping away from steep, dangerous terrain. Recognized as a professional remote control crawler mower, it supports remote lifting of cutter discs to adjust grass cutting height freely. It can serve as a steep slope land reclamation mower for hilly wasteland trimming, an orchard grass shredder to clear weeds beneath fruit trees, and a flexible mountain weeder for rugged highland areas. Working as a fully automatic mower, it also acts as a forage crushing mower for rough grass treatment and a courtyard greening mower for landscape maintenance projects. The 550 crawler remote mower stands out with extraordinary climbing capacity to handle complex terrain inaccessible to conventional wheeled mowers.

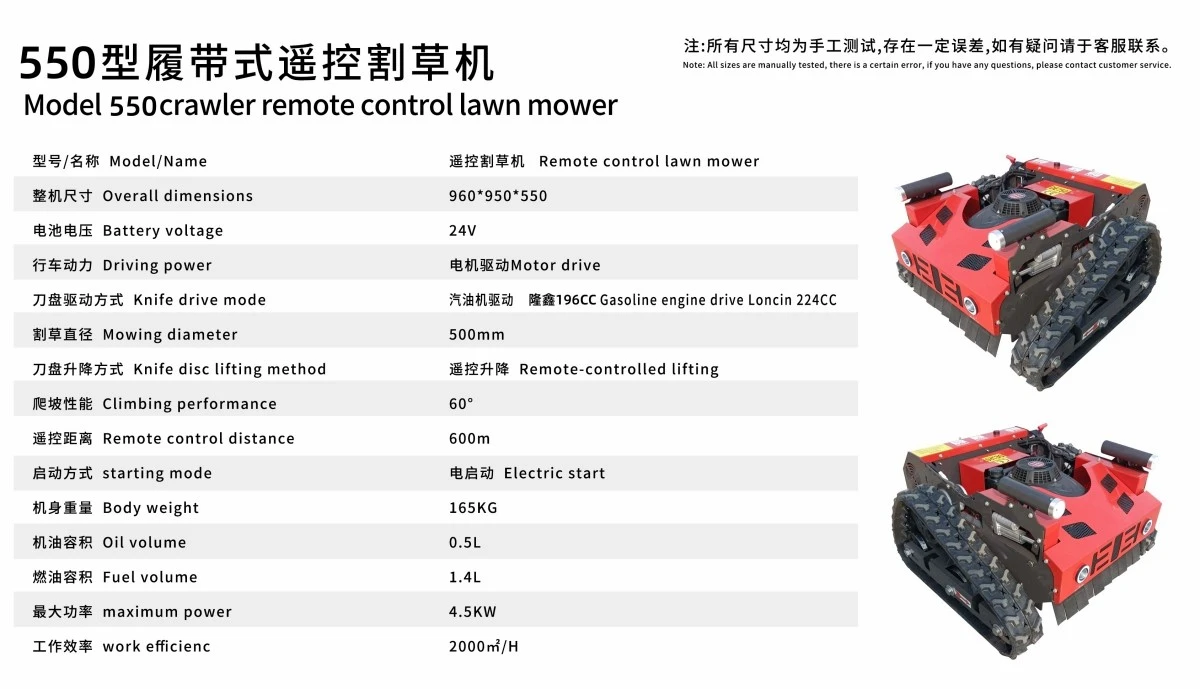

Technical Parameters
|
Item |
Specification |
|
Overall Dimensions |
960950550 mm |
|
Battery Voltage |
24V |
|
Travel Drive |
Motor drive |
|
Cutter Drive |
Loncin 224CC gasoline engine |
|
Mowing Diameter |
500 mm |
|
Cutter Lifting Mode |
Remote-controlled lifting |
|
Max Climbing Capacity |
60° |
|
Remote Control Distance |
600 m |
|
Starting Method |
Electric start |
|
Machine Weight |
165 KG |
|
Engine Oil Volume |
0.5 L |
|
Fuel Tank Capacity |
1.4 L |
|
Max Power |
4.5 KW |
|
Working Efficiency |
2000 ㎡/H |
Material Characteristics

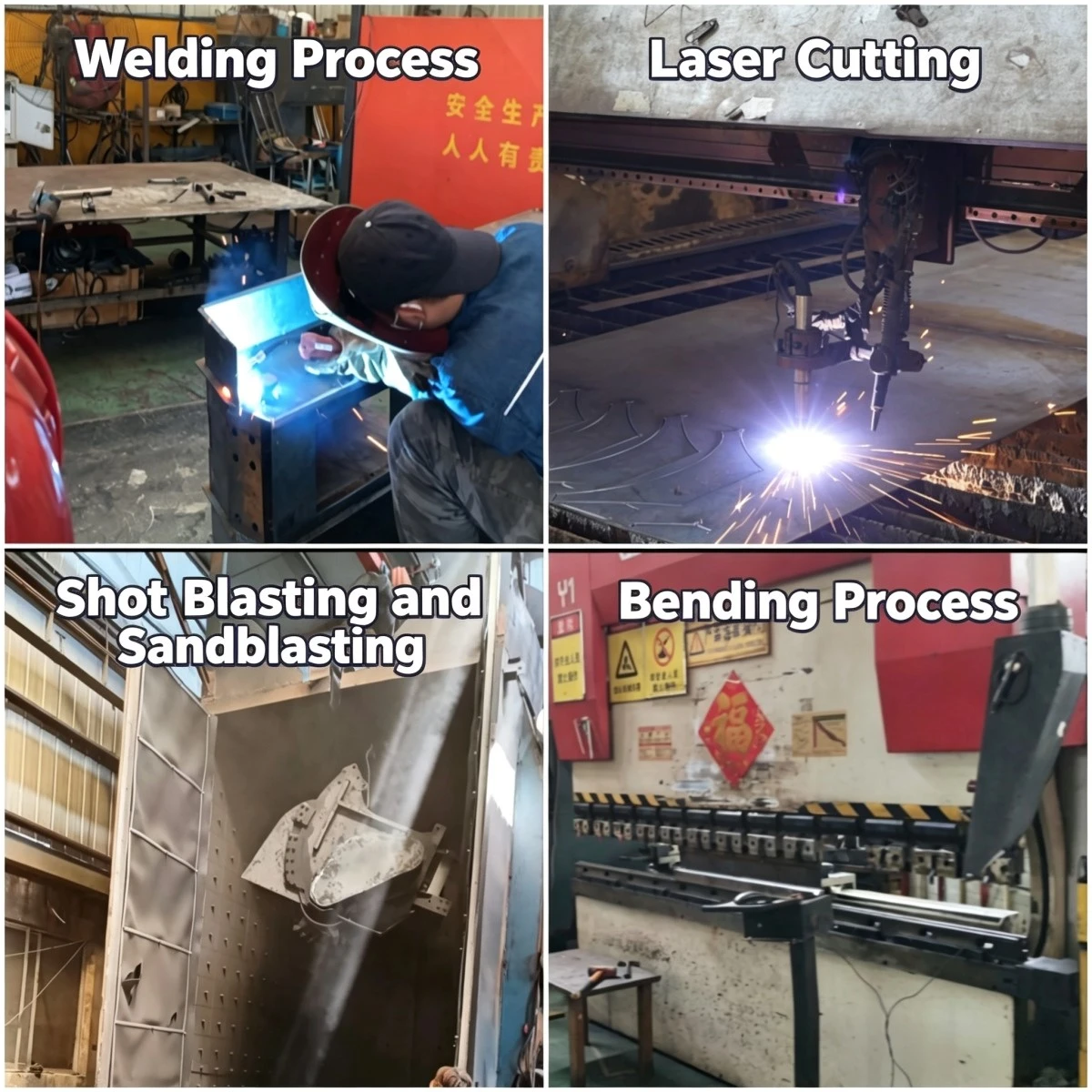

The main frame is constructed with thickened high-strength steel plate, effectively resisting collision and torsion during field operation. Wear-resistant rubber tracks offer strong ground adhesion while avoiding severe damage to cultivated soil. Key transmission components are made of alloy steel to extend service life under continuous heavy workload. The outer shell undergoes anti-rust treatment and industrial spraying to resist erosion by rain, dew and weeds. Sealed electrical component cabins effectively prevent dust and moisture intrusion.
Application Fields

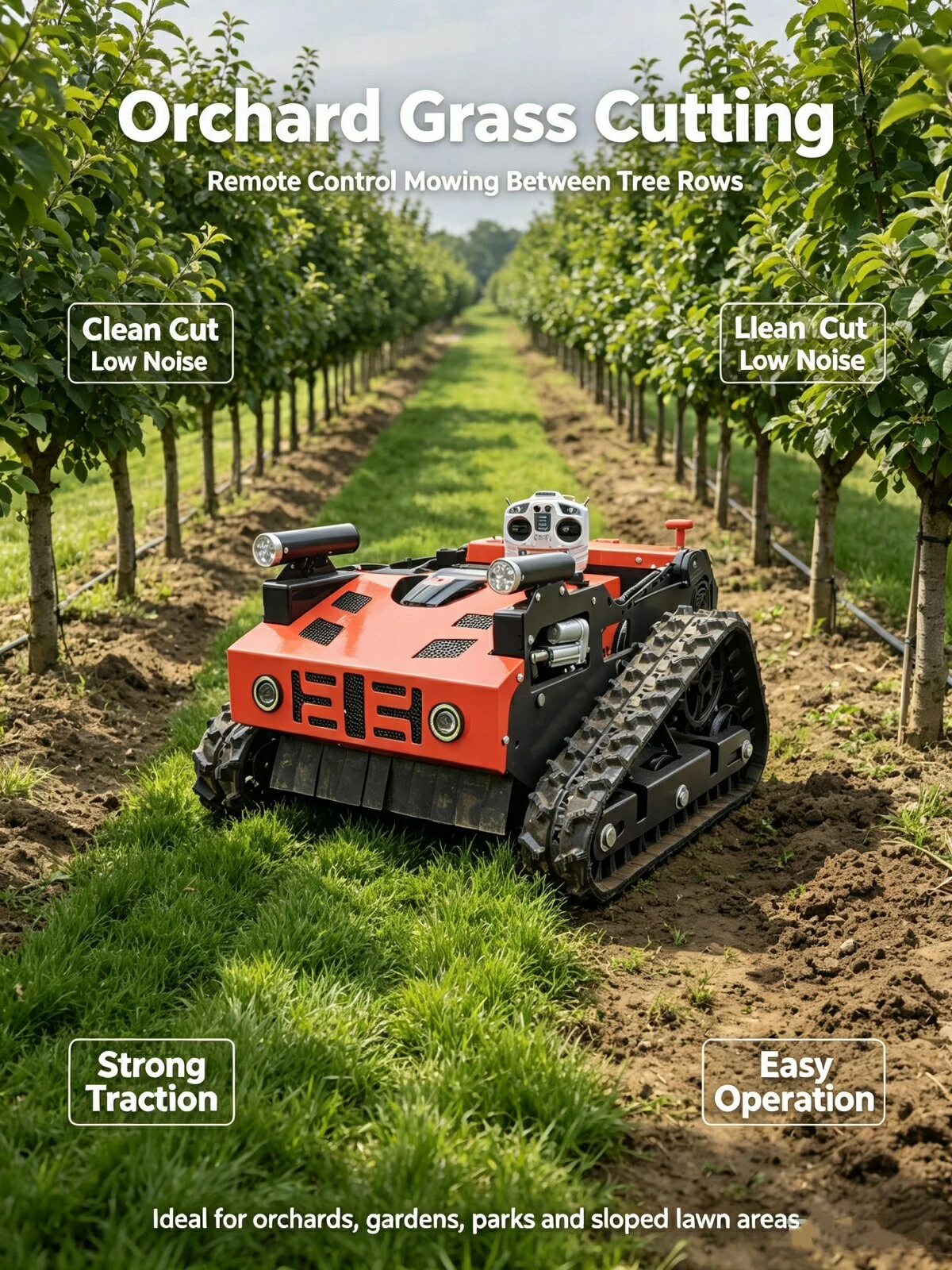

The machine is widely applied in mountain orchards, slope protection green belts, hilly wasteland renovation, villa courtyards and reservoir bank vegetation management. It efficiently cuts weeds, crushes wild grass and maintains green belts. Its outstanding 60° climbing capability makes it the preferred equipment for terraced farms and mountainous areas where manual mowing is high-risk and labor-intensive.
Company After-sales Service
Each 550 crawler remote mower comes with a comprehensive English operation manual and maintenance guide. Our professional technical team provides remote online guidance for installation, commissioning, and routine maintenance. We offer rapid supply of various wear parts, including cutting blades, tracks, and engine components. Furthermore, we actively follow up on customer feedback to assist users in resolving operational issues during peak mowing seasons.
Common Fault Solutions
Cutter disc fails to rotate
Check whether the engine throttle is properly adjusted; inspect belt tightness and remove entangled weeds on blades.
01
Crawler slips seriously on slopes
Clean mud and debris on rubber tracks; check track tension and adjust it to standard tightness.
02
Unresponsive remote signal
Ensure the controller battery is fully charged; avoid operating beyond the 600-meter remote control range.
03
Engine difficult to start
Check fuel volume and fuel quality; clean air filter and inspect spark plug for carbon accumulation.
04
Cutter cannot lift up
Examine the remote lifting actuator, check wire connections and clear mechanical jamming obstacles.
05
