Product Introduction

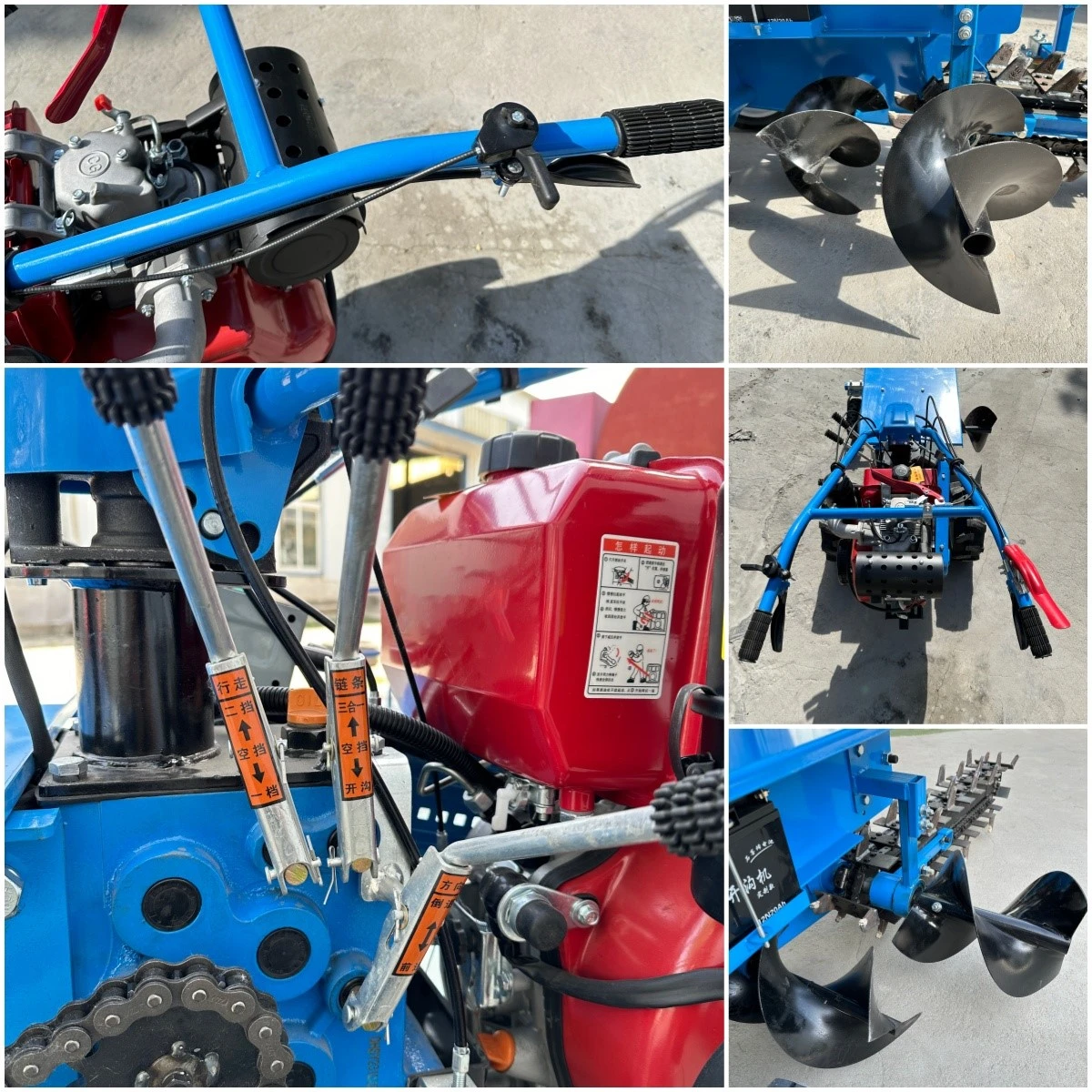

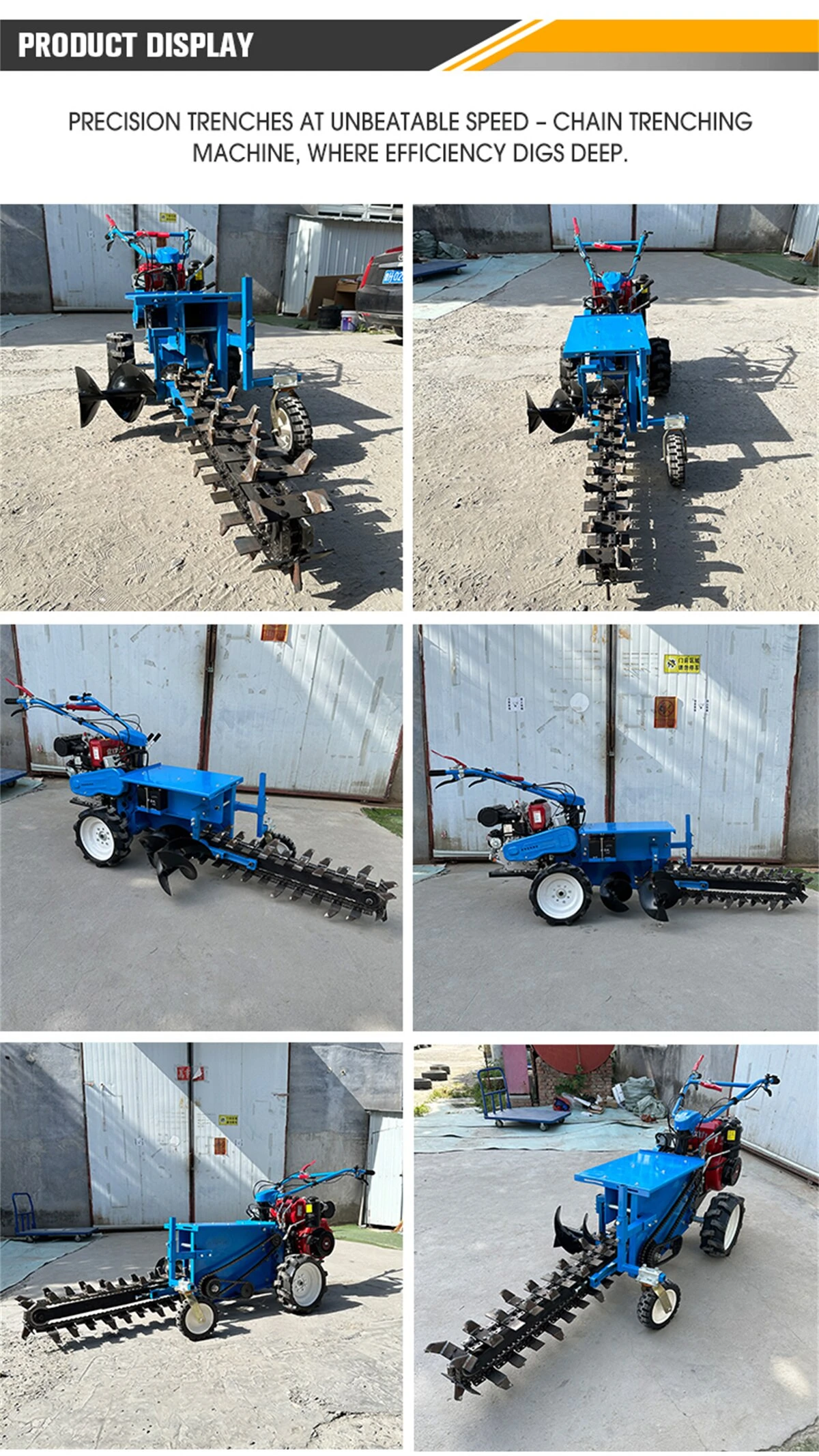

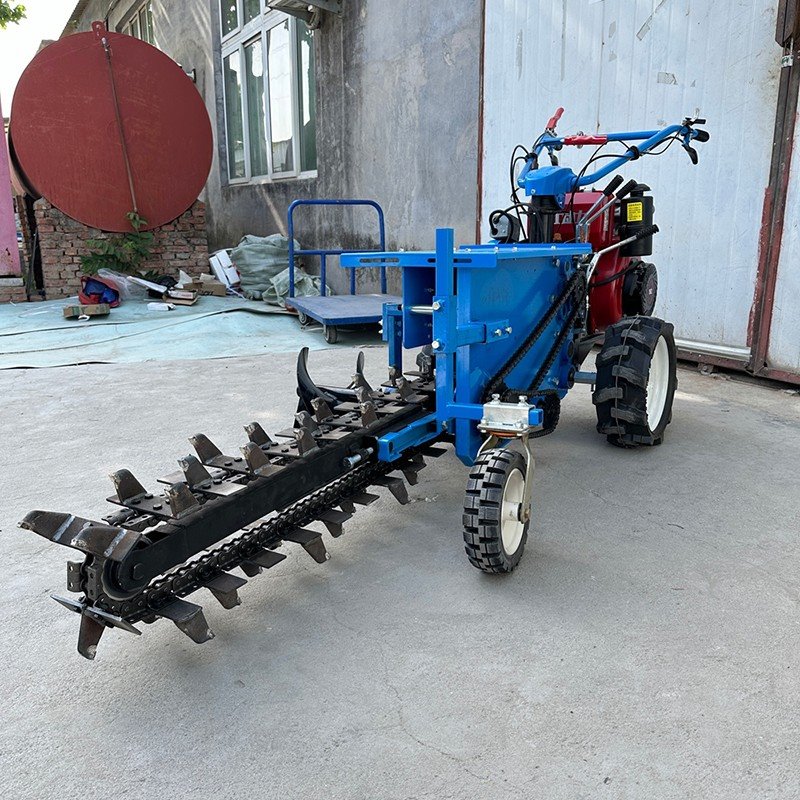

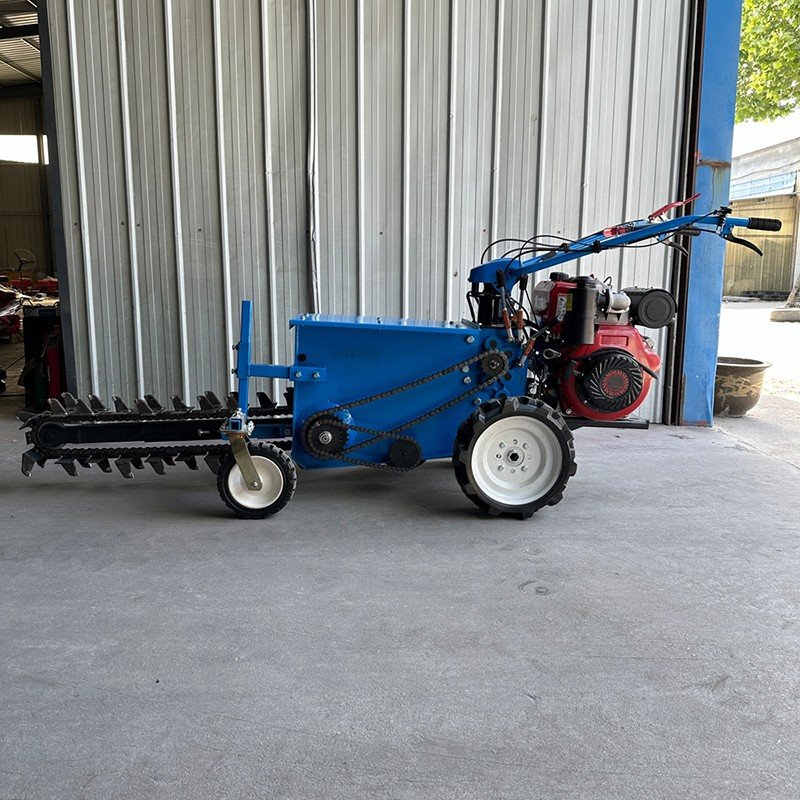

This gasoline hand-held trencher is a lightweight self-propelled digging machine built for small-scale agriculture, landscaping and residential pipeline construction. Unlike bulky tractor-mounted trenchers, this handheld gasoline trencher runs on a stable air-cooled gasoline power unit, fully controlled by a single operator via ergonomic hand levers without extra traction equipment. It acts as a practical hand Gasoline Ditcher for narrow farm plots and backyard garden drainage works. Classified as a compact small gasoline trencher, it also serves as a multi-purpose agricultural Handheld Ditcher for orchard fertilization furrows, greenhouse irrigation channels and shallow cable burial tasks. The replaceable alloy chain cutting assembly creates clean vertical narrow trenches on sand, loam and mild hard soil, perfectly fitting tight spaces like fruit tree rows, villa courtyards and mini farmland inaccessible to large excavation machinery.
Detailed Technical Parameter Table
|
Parameter Item |
Single Chain Model |
Double Chain Model |
|
Power Unit |
195 air-cooled gasoline engine, 9.2KW rated power |
195 air-cooled gasoline engine, 9.2KW rated power |
|
Electric Start System |
12V 20A storage battery for one-key startup |
12V 20A storage battery for one-key startup |
|
Walking Gear Settings |
2 forward speeds, neutral, 2 reverse speeds |
2 forward speeds, neutral, 2 reverse speeds |
|
Whole Machine Net Weight |
280kg |
300kg |
|
Trench Size Range |
Width 10–20cm, max depth 0.8–1.2m |
Width 25–40cm, max depth 0.5–0.6m |
|
Clutch Structure |
Belt tension clutch with fully sealed gearbox |
Belt tension clutch with fully sealed gearbox |
Premium Material Specification

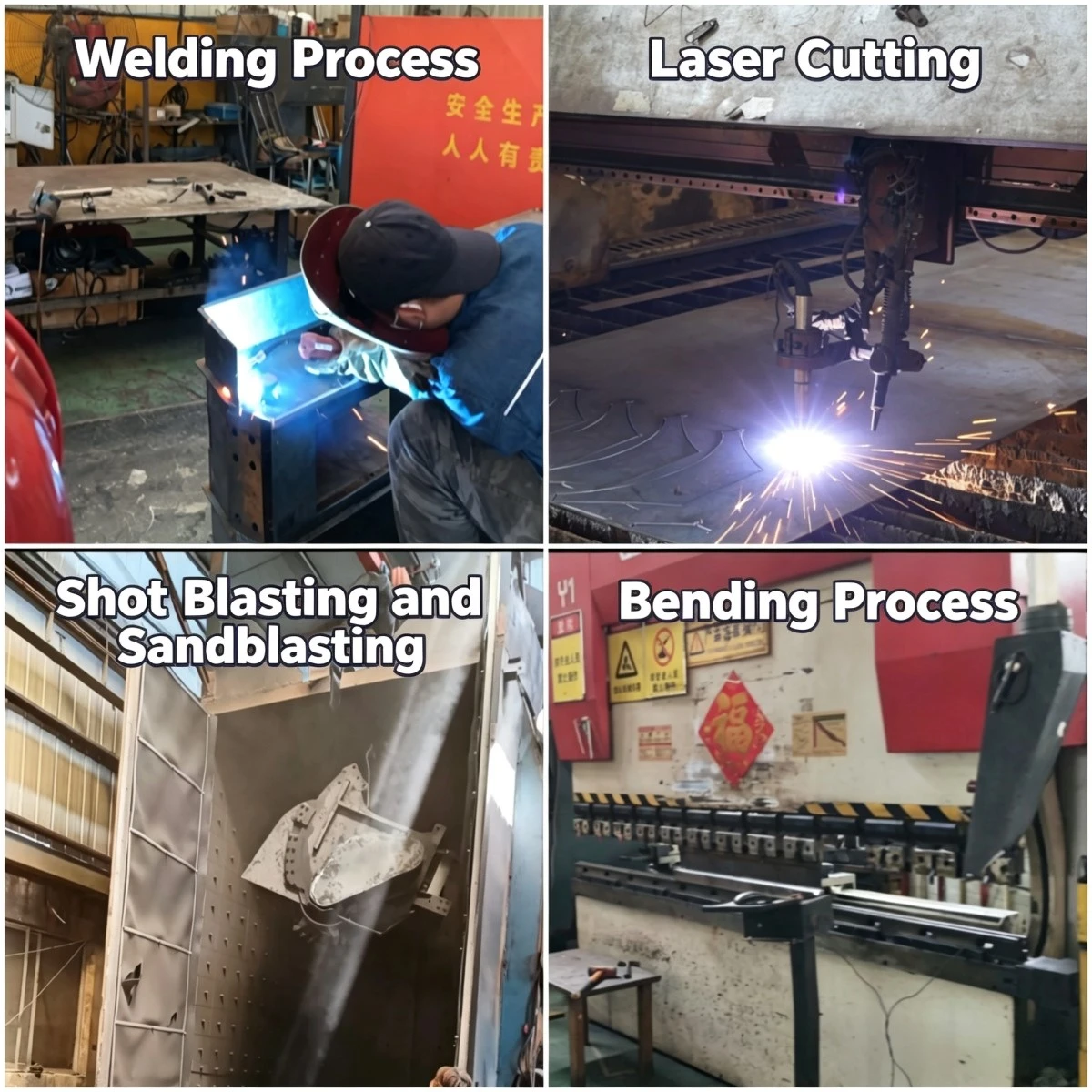

The main frame adopts thickened high-strength carbon steel plate, processed by laser cutting and seamless welding to resist bending deformation under heavy digging loads. The drive chain is made of standard manganese steel with strong anti-impact performance, while each digging tooth is cast from wear-resistant alloy steel, able to withstand long-term friction with soil and small gravel. Internal transmission gearbox uses cast steel housing, paired with anti-aging rubber hydraulic pipelines that adapt to all outdoor weather conditions. All connecting bolts are galvanized to avoid rust during long-term field use.
Complete After-Sales Service for Global Buyers
12-month factory warranty for core components including engine, drive chain and gearbox under standard operating conditions.
Multilingual professional technical team provides 24-hour online video guidance for machine operation and breakdown troubleshooting.
Fast global spare parts supply: alloy digging teeth, chains and sealing accessories can be delivered within 7 working days once orders are confirmed.
Customization support: We adjust chain length, trench width and frame size to match local construction demands, offering free customized design drawings for bulk orders.
FAQ
FAQ
1.What terrain types can this gasoline hand-held trencher work on normally?
A: It performs stably on sandy soil, loam, red farmland and mild hard clay; large hard stones need pre-clearing to protect cutting teeth.
2.Can the agricultural Handheld Ditcher operate smoothly on sloped orchard land?
A: The balanced body design supports stable trenching on slopes below 15 degrees without drifting sideways.
3.What is the maximum digging depth the single chain small gasoline trencher can achieve?
A: The single chain unit can dig a maximum depth of 1.2 meters when equipped with a 10cm wide cutting chain.
4.Is it easy to replace worn digging teeth on this gasoline hand-held trencher?
A: Each tooth is fixed by separate bolts; users can finish replacement in 5 minutes with basic hand tools.
5.Does the machine include all necessary connecting fittings for direct use?
A: Matching drive belts, spare chain segments and maintenance tools are included in the full package.
6.What projects is this hand Gasoline Ditcher most suitable for?
A: Orchard fertilization ditches, farm irrigation channels, residential fiber optic cables, water/gas pipeline laying and greenhouse drainage trenches.
7.How many linear meters of trench can this machine dig per working hour?
A: The hourly output is 240–500 meters, varying with soil hardness and preset trench depth.
8.What payment options are available for full-container bulk orders?
A: We accept T/T and sight L/C, offering flexible deposit ratios and staggered delivery plans for long-term cooperative clients.
