Product Introduction

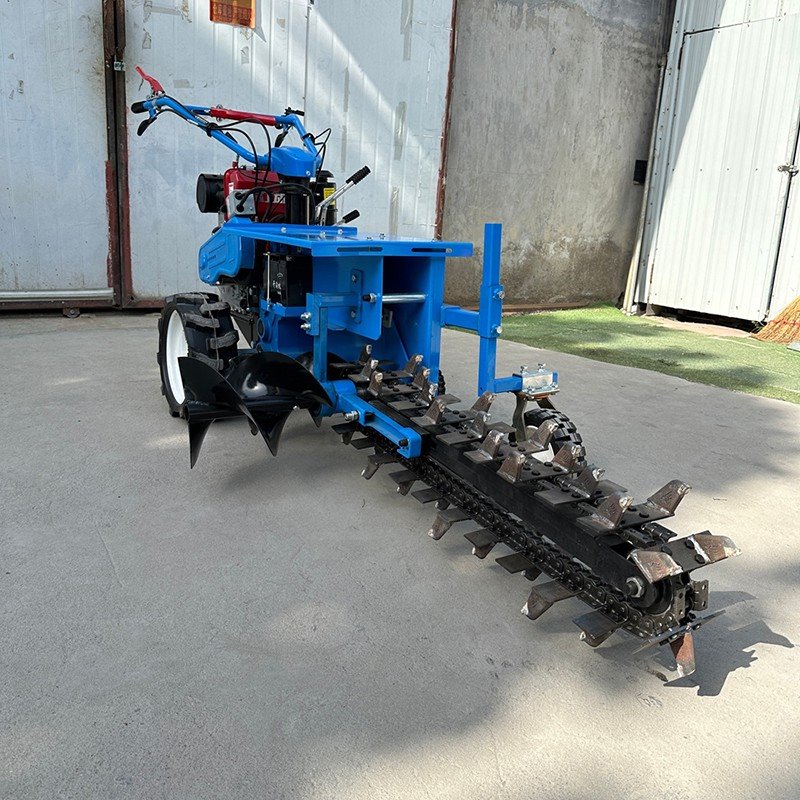

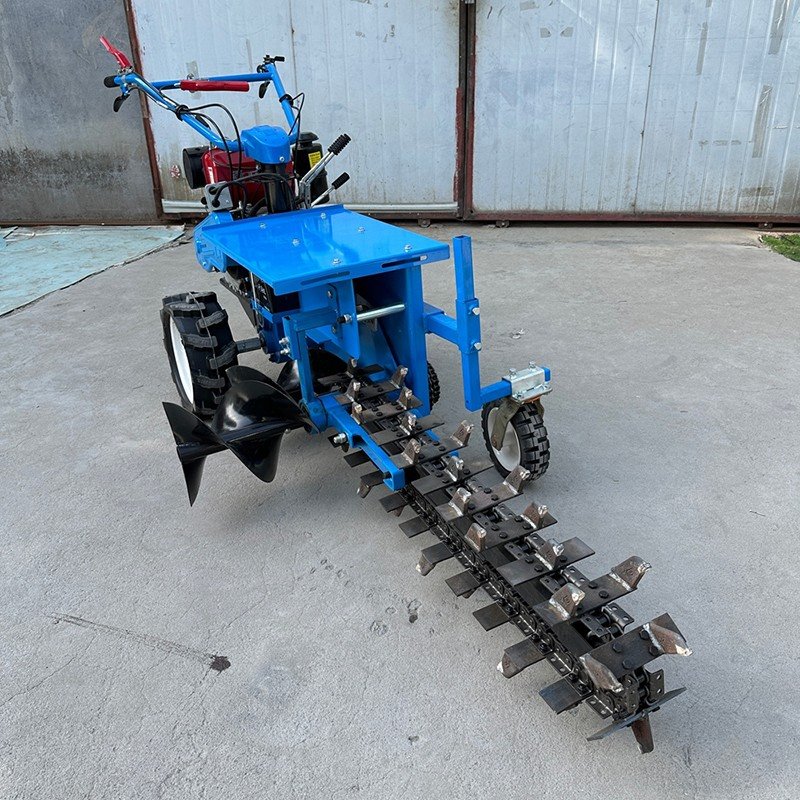

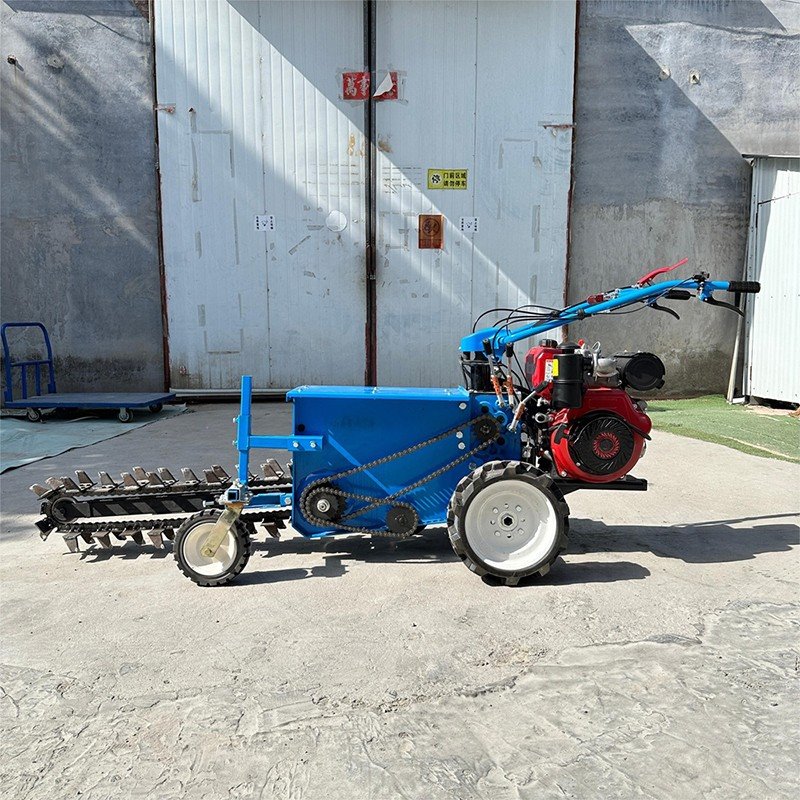

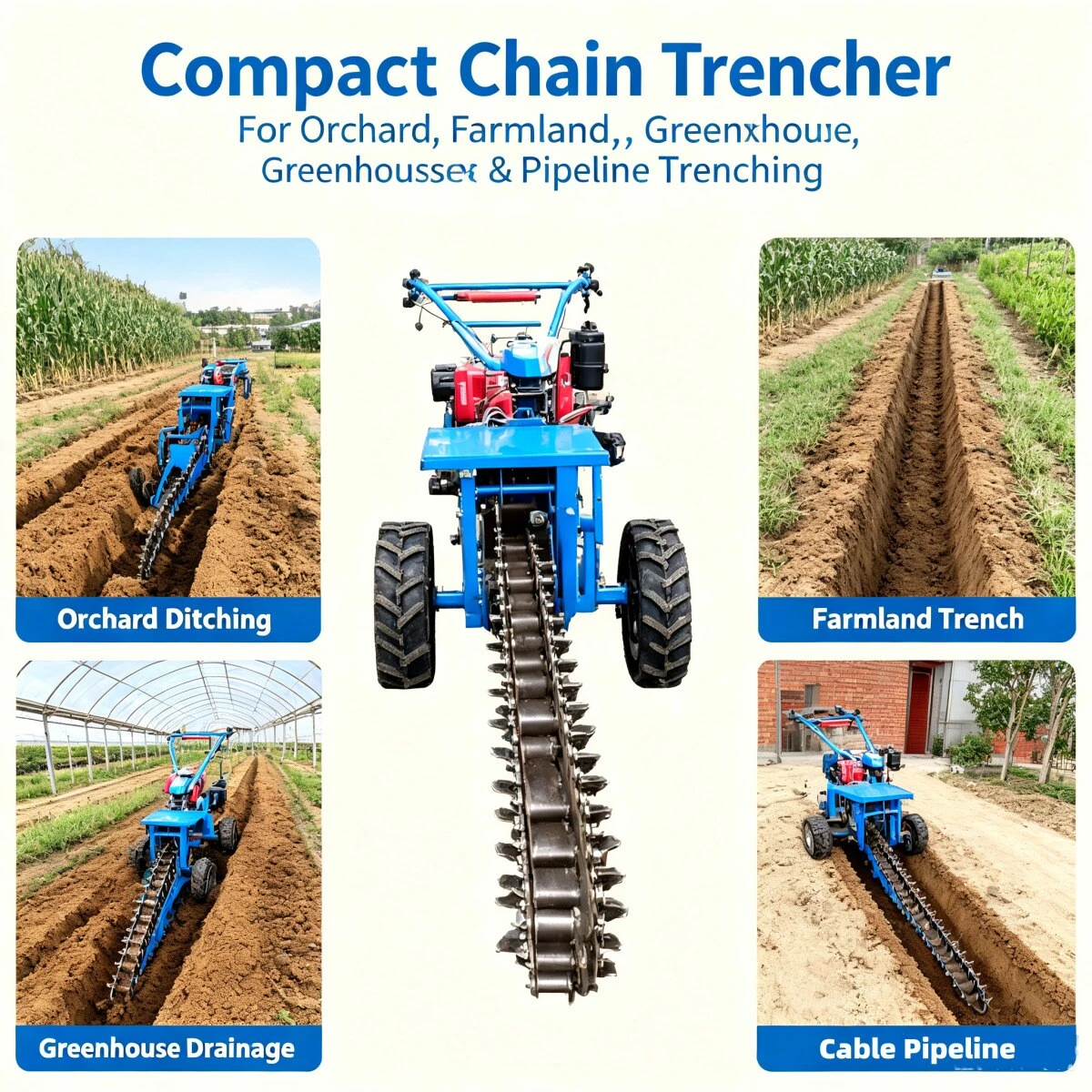

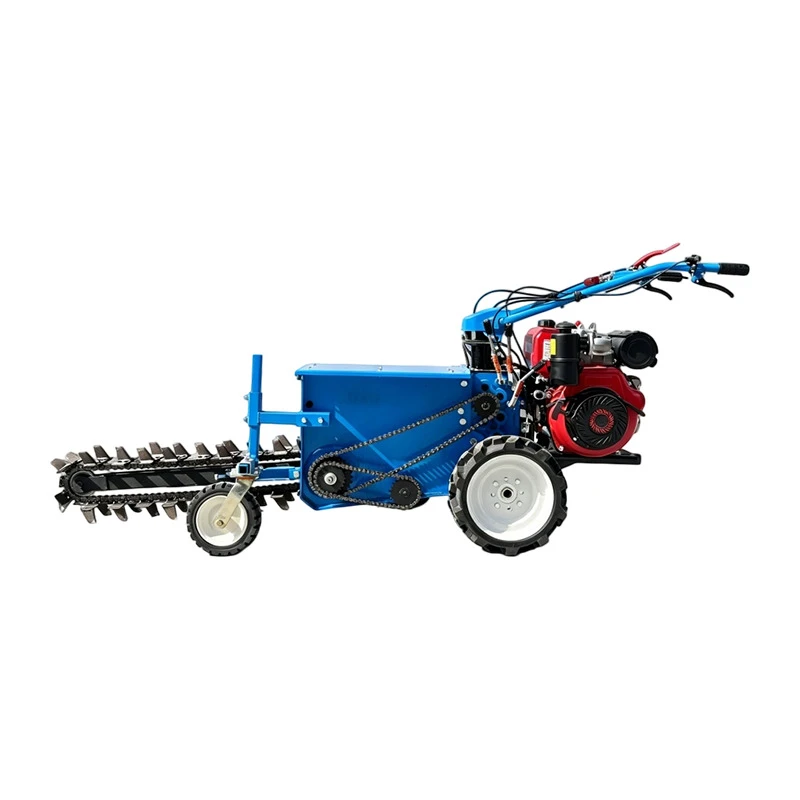

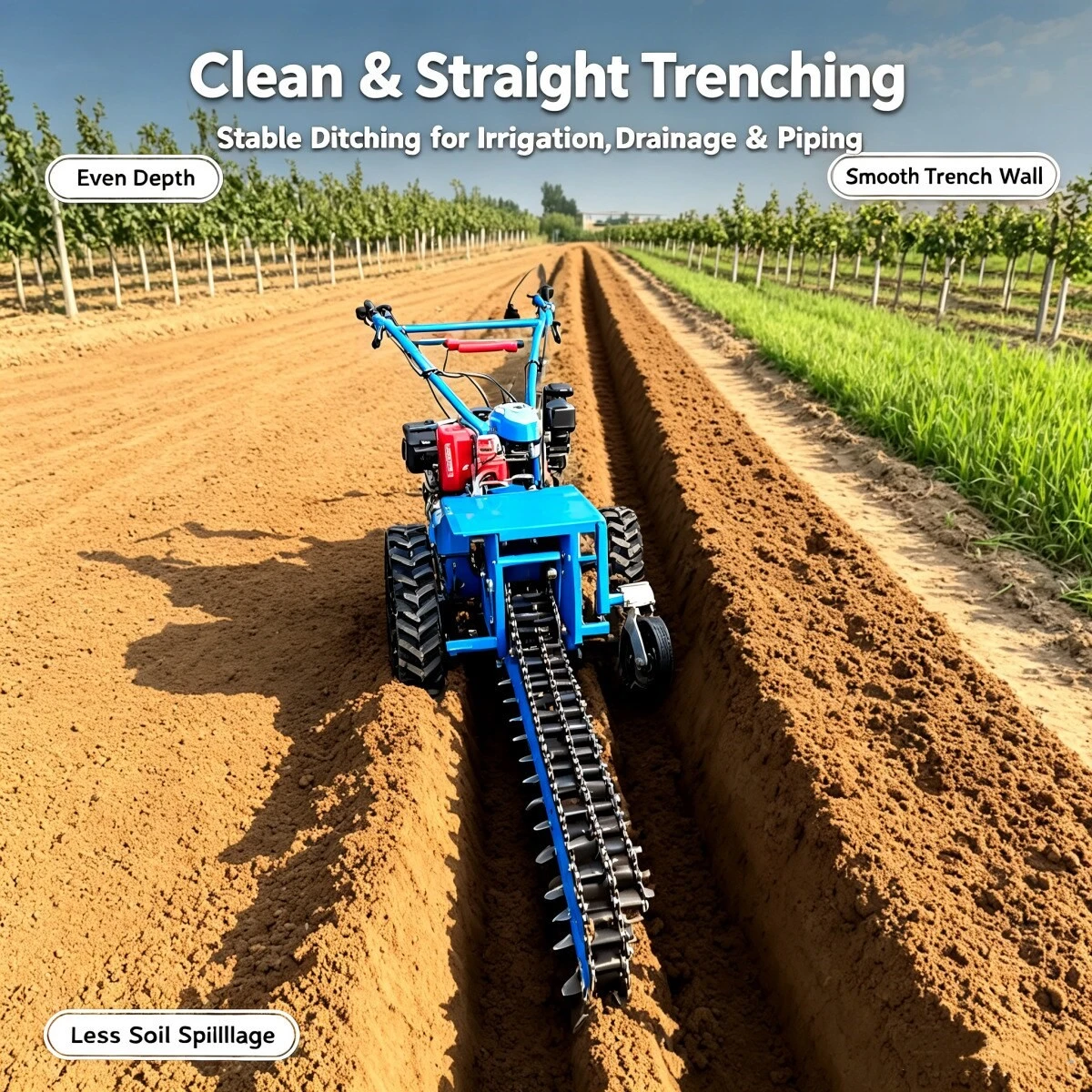

This fertilization and trenching machine is an integrated self-propelled farm tool built for orchard fertilization, farm irrigation and small pipeline laying. As a practical chain type fertilizing ditching machine, it relies on continuous alloy chain cutting to dig neat vertical furrows for fertilizer application, avoiding damage to crop and fruit tree root systems. It also serves as an efficient organic fertilizer ditching machine specially optimized for deep burying compost and granular farm manure. More than just a single-function digger, it acts as a complete ditching and fertilizing integrated machine that combines soil excavation and fertilizer placement into one single pass, greatly cutting repeated field work steps. This fertilization and trenching machine is powered by a 9.2KW air-cooled diesel engine with electric startup, independently operated by one worker, perfectly fitting narrow orchard rows, scattered small farm plots and greenhouse growing zones. This agricultural ditching and fertilizing device eliminates the need for extra tractors and separate digging equipment for seasonal farm fertilization tasks.
Core Technical Parameter Table
|
Specification Item |
Single Chain Model |
Double Chain Model |
|
Supporting Engine |
195 air-cooled diesel, 9.2KW output |
195 air-cooled diesel, 9.2KW output |
|
Startup System |
12V 20A battery one-key electric start |
12V 20A battery one-key electric start |
|
Travel Gear Shifts |
2 forward, neutral, 2 reverse gears |
2 forward, neutral, 2 reverse gears |
|
Whole Machine Net Weight |
280kg |
300kg |
|
Trench Width & Max Depth |
10–20cm width, 0.8–1.2m max depth |
25–40cm width, 0.5–0.6m max depth |
|
Cutter Material |
Wear-resistant solid alloy steel teeth, single tooth replaceable |
Wear-resistant solid alloy steel teeth, single tooth replaceable |
|
Transmission Form |

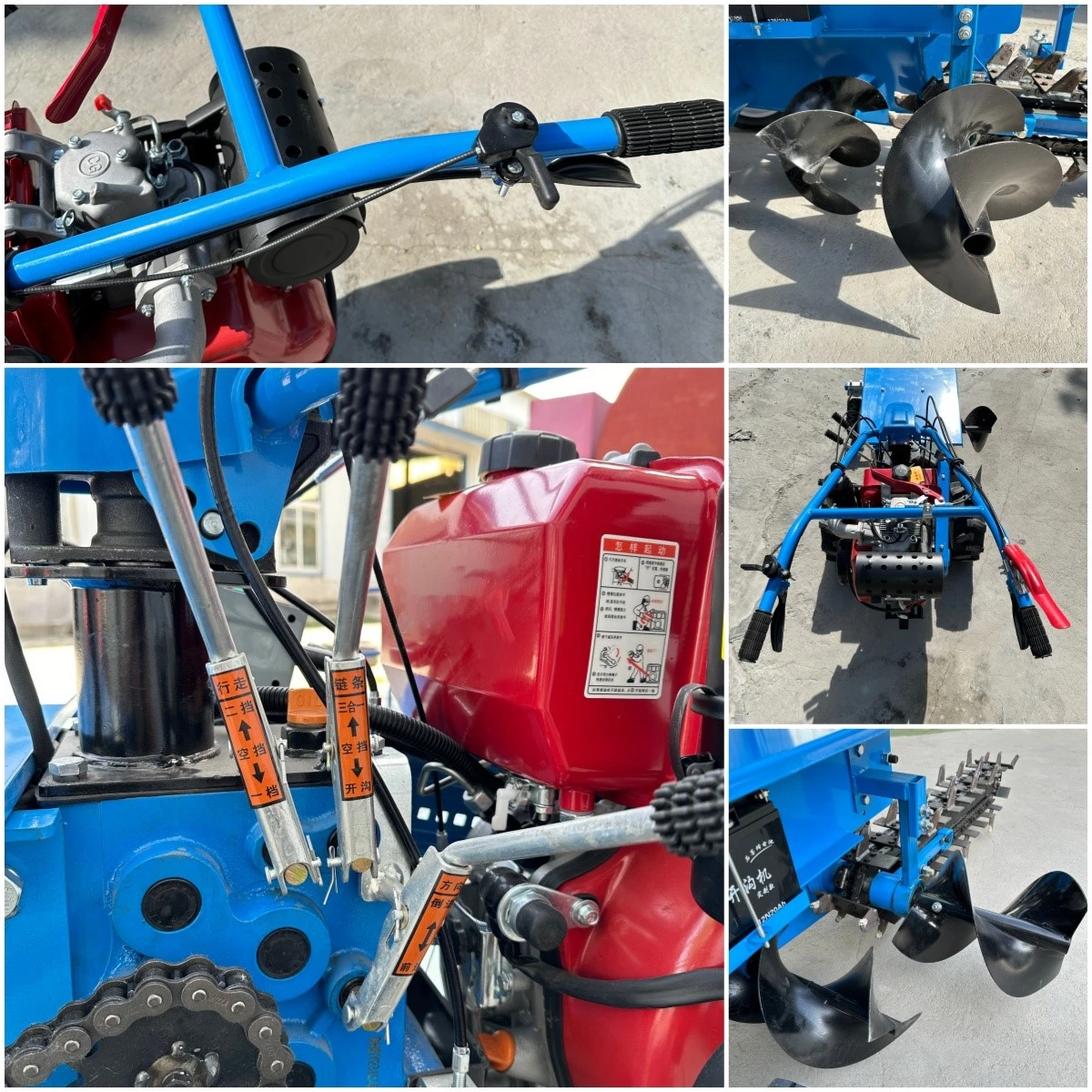

Belt tension clutch + fully sealed dustproof gearbox |
Belt tension clutch + fully sealed dustproof gearbox |
Core Product Advantages
Two-in-One Integrated Function: The ditching and fertilizing integrated machine finishes trench digging and fertilizer burial in one round, cutting labor time by nearly half compared to separate manual work.
Narrow Space Passability: Compact body design freely moves between dense fruit tree rows without scratching branches or cutting shallow roots.
Low Operating & Maintenance Cost: Alloy cutting teeth can be replaced individually at low cost; daily maintenance only requires chain lubrication and regular engine oil changes, repairable at local farm service shops.
Stable Continuous Field Work: Fully sealed gearbox blocks mud and plant debris, reducing unexpected breakdowns during all-day seasonal fertilization operations.
Adjustable Trench Sizes: Multiple chain width and depth options adapt to different crop fertilization depths, irrigation channel building and pipeline burial projects.
Reliable Factory Production Strength

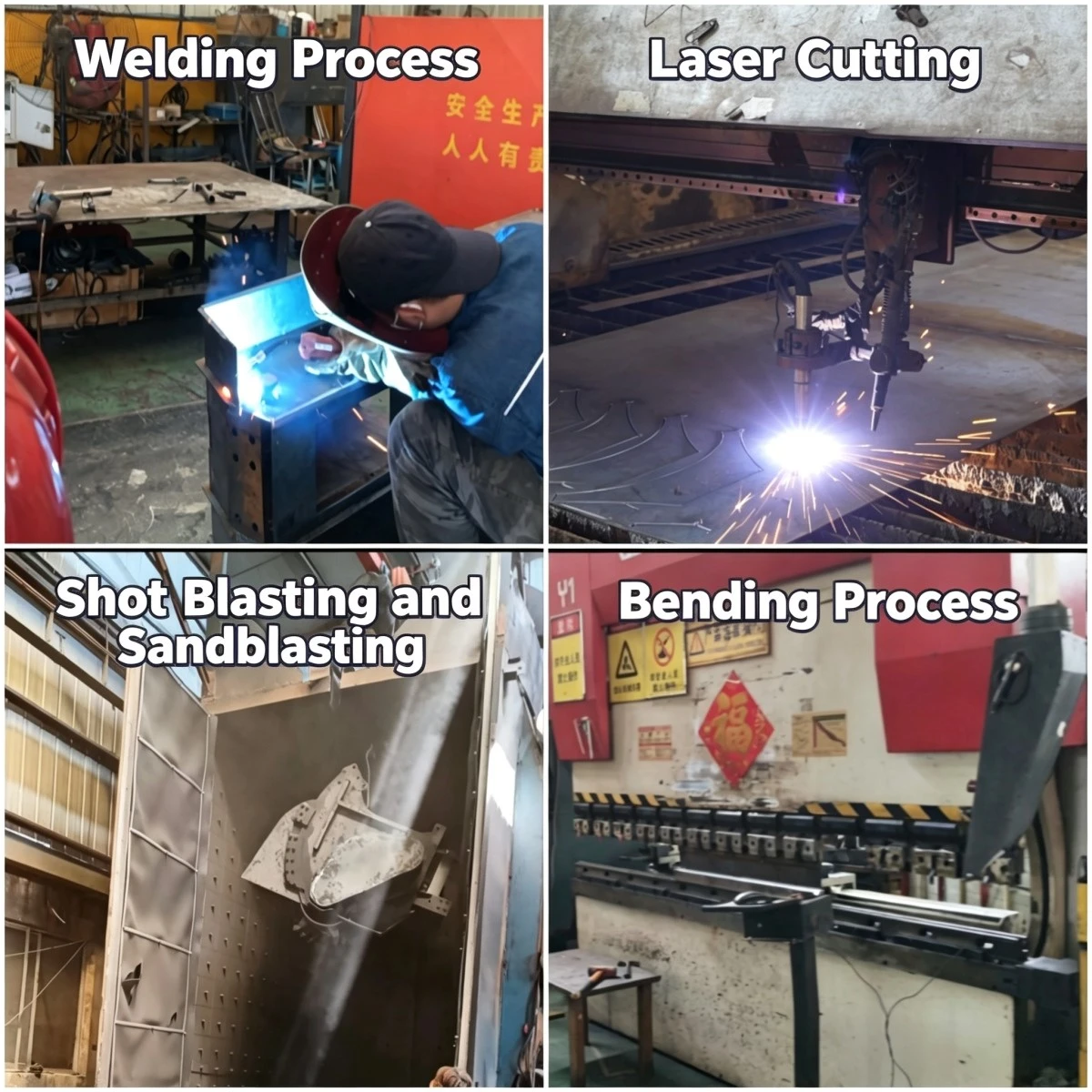

Our factory owns full automated production workflows including laser metal cutting, CNC bending, shot blasting rust removal and full penetration welding workshops. All steel frames and chain assemblies go through strict dimensional inspection before assembly. We maintain stable mass production capacity for container wholesale orders, support customized chain lengths and trench widths to match regional planting habits, and provide complete production test records for all bulk buyers. Every fertilization and trenching machine undergoes 2 hours of continuous running testing before delivery to eliminate hidden mechanical faults.
Common Malfunction Targeted Solutions
Chain type fertilizing ditching machine chain stalls during digging Solution
Inspect chain tension and clear tangled soil, grass or small stones stuck between cutting teeth; adjust tension springs to restore smooth rotation.
Uneven trench depth during organic fertilizer ditching machine operation Solution
Check hydraulic lifting cylinder oil pressure, refill qualified hydraulic fluid and remove debris blocking cylinder stroke.
Gearbox emits loud abnormal noise Solution
Drain aged gear oil and refill dedicated high-viscosity lubricant; inspect for worn internal gears and replace damaged parts timely.
Engine cannot start after long idle storage Solution
Check 12V battery power, replace deteriorated diesel fuel and clean carbon deposits inside the engine combustion chamber.
