Product Introduction

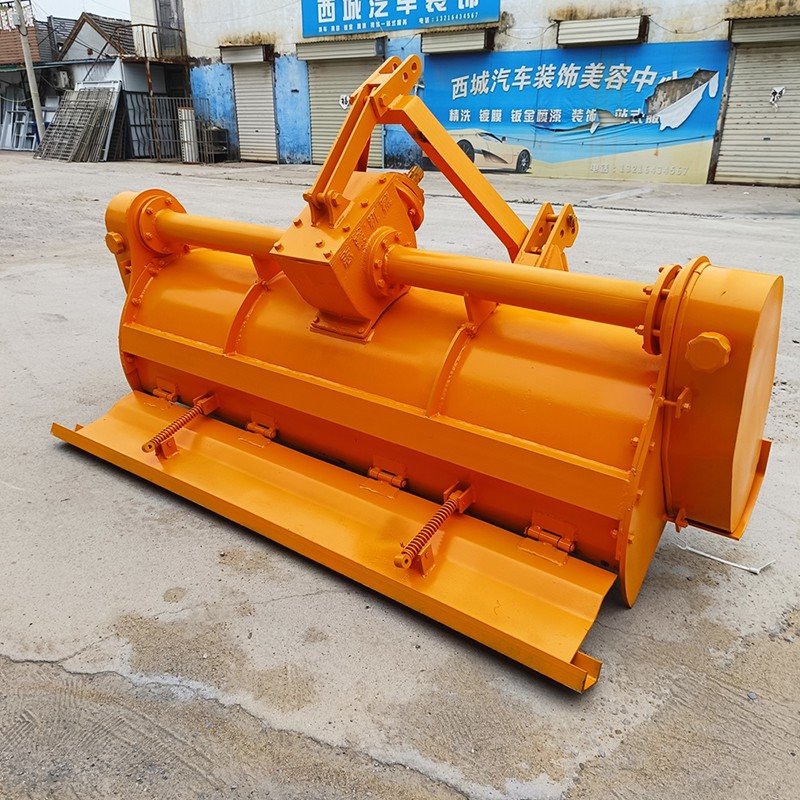

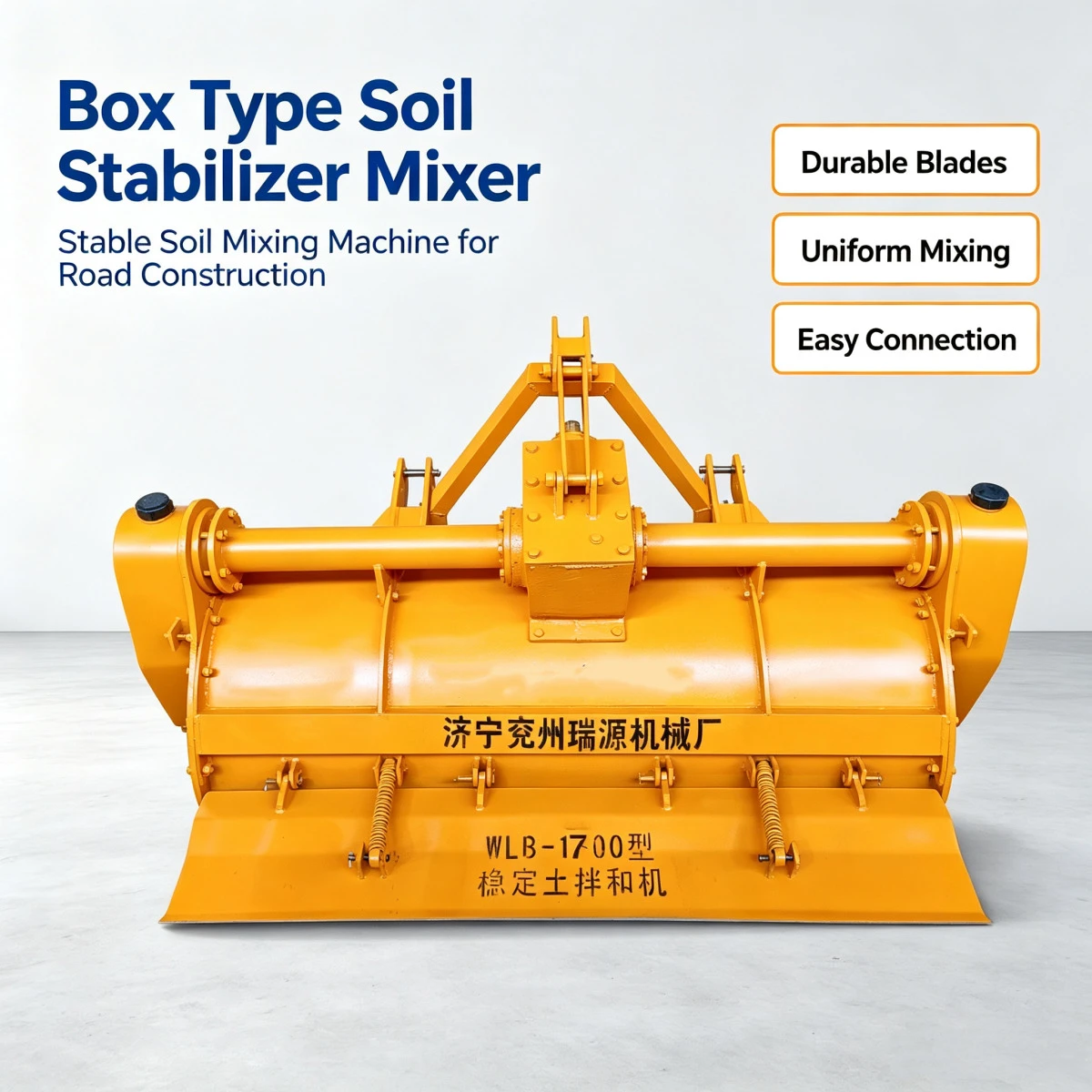

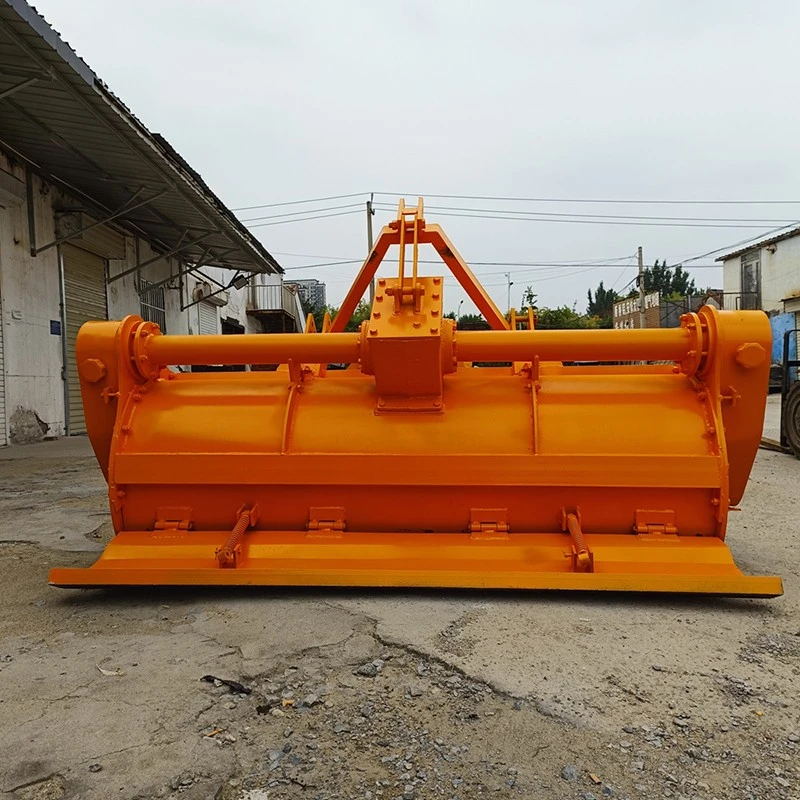

The box type stabilized soil mixer is a heavy-duty tractor rear-mounted mixer that connects to the three-point suspension of medium and high-horsepower tractors. It is purpose-built to mix raw soil, lime, cement and aggregate evenly to form solid road subgrade base layers, perfectly completing standard 3:7 lime-soil mixing in a single pass. Classified as a core heavy-duty road mixing machine, this enclosed box structure prevents material splashing and dust loss during construction. It is redesigned as an africa-specialized road mixer to adapt to rough rural terrain and low-grade highway building demands in African regions, focusing on stable power output and wear-resistant components for long-distance field operation. It covers multiple working width options to satisfy diverse road base mixing projects for municipal and rural infrastructure contractors.
Core Competitive Advantages
Fully Enclosed Sealed Box Body: Thick manganese steel cabinet locks mixing materials inside, cutting curing agent waste and reducing construction dust pollution compared to open mixing equipment.

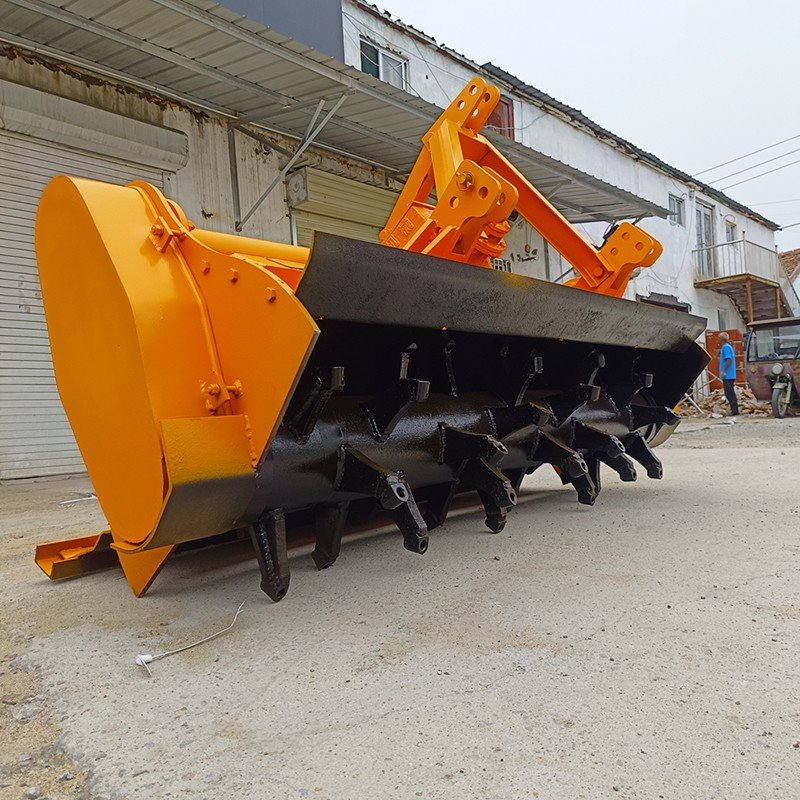

Modular Replaceable Bullet Cutters: Each alloy mixing tip is independently bolted; worn parts can be swapped separately instead of replacing the whole roller to lower long-term maintenance costs.

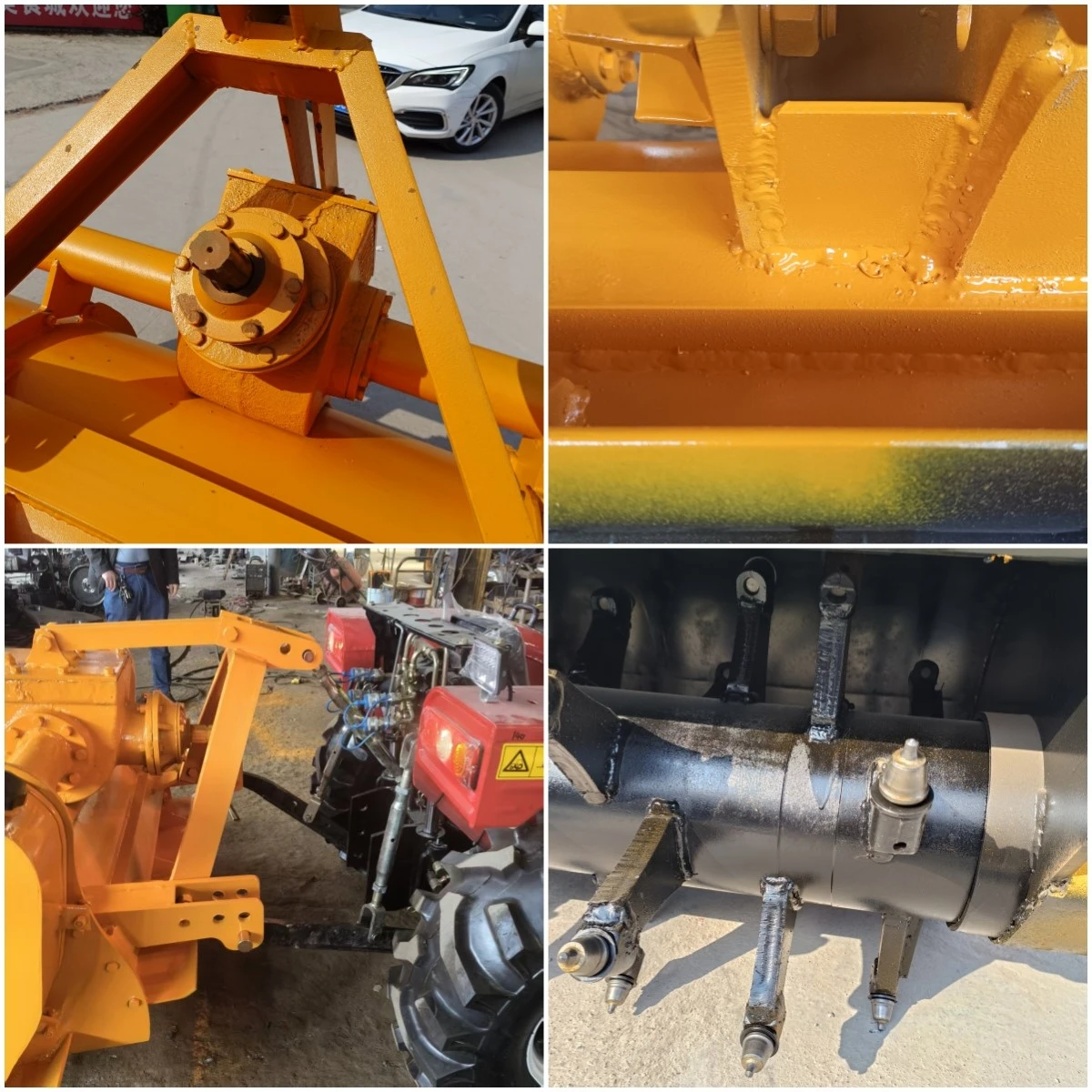

High Torque Central Gearbox & Reinforced Drive Chain: Matched with 24A heavy-duty double chains, it maintains stable rotation during deep soil mixing without slipping or stalling.
Spring Floating Front Scraper Board: Automatically fits undulating ground surfaces to guarantee consistent mixing depth and uniform road base mixing quality.
Multi-Size Customizable Widths: 1.4m to 2m working widths are available to match narrow farm access roads and wide municipal main roads respectively.
Wide Application Fields
Rural Highway Reconstruction
Village access roads, farm field passages and low-grade rural pavement stabilization, the primary usage scenario for this africa-specialized road mixer.
01
Municipal Subgrade Engineering
Urban branch road foundation reinforcement, sidewalk base treatment and parking lot ground stabilization.
02
Agricultural Land Consolidation
Farmland leveling and hardened farm track construction with standard 3:7 lime-soil mixing ratios.
03
Temporary Construction Roads
Mine haulage roads, construction site temporary passage base mixing, adapting to harsh gravel-rich soil conditions.
04
Advanced Production Process Technology
High-strength Manganese Steel Raw Material
Cabinet and mixing roller use thick Q345 manganese plate processed by precise laser cutting to eliminate dimensional errors.
Full Penetration Welding & Shot Blasting Anti-Corrosion
All load-bearing joints are fully welded; complete surface shot blasting removes rust, followed by double anti-rust primer and topcoat paint.
Hot-Forged Alloy Cutters
Bullet-shaped mixing teeth are hot forged for extreme impact resistance against hard soil and small gravel.
Pre-Delivery Full Load Testing
Every finished unit undergoes 2-hour continuous high-load running inspection to test gearbox, chain and mixing roller stability before packaging.
Complete After-Sales Support
12-month factory warranty covers central gearbox, mixing roller and drive chain under standard construction conditions.
Multilingual technical team provides 24/7 online video guidance for tractor matching, installation and daily maintenance.
Fast global spare parts supply chain: alloy cutters, sealing gaskets and drive chains can be delivered within 7 working days after bulk orders.
Custom modification service: adjust mixing width, cutter density and suspension bracket according to local road construction standards, supplying free technical drawings for full-container wholesale clients.
Practical Common Fault Solutions
1.Box type stabilized soil mixer mixing roller stalls during 3:7 lime-soil mixing Solution: Cut tractor power immediately, clear compacted soil and stones jammed between cutters; check gearbox oil level and refill heavy-load anti-wear lubricant; tighten loose drive chain adjusters.
2.Uneven mixing depth on undulating subgrade during road base mixing Solution: Adjust the tension springs of front floating scraper to fit ground fluctuation; inspect tractor hydraulic lifting cylinder for oil leakage and replenish hydraulic fluid timely.
3.Drive chain slips and jumps teeth during long-hour heavy mixing Solution: Replace overstretched worn chain links with standard 24A heavy-duty chains; calibrate chain tension to eliminate excessive sagging.
4.Alloy bullet cutters wear rapidly on gravel-rich soil Solution: Reduce tractor forward speed to avoid overload impact; prepare spare cutter assemblies for batch replacement and regularly clear stone debris around the mixing roller.
