Product Introduction

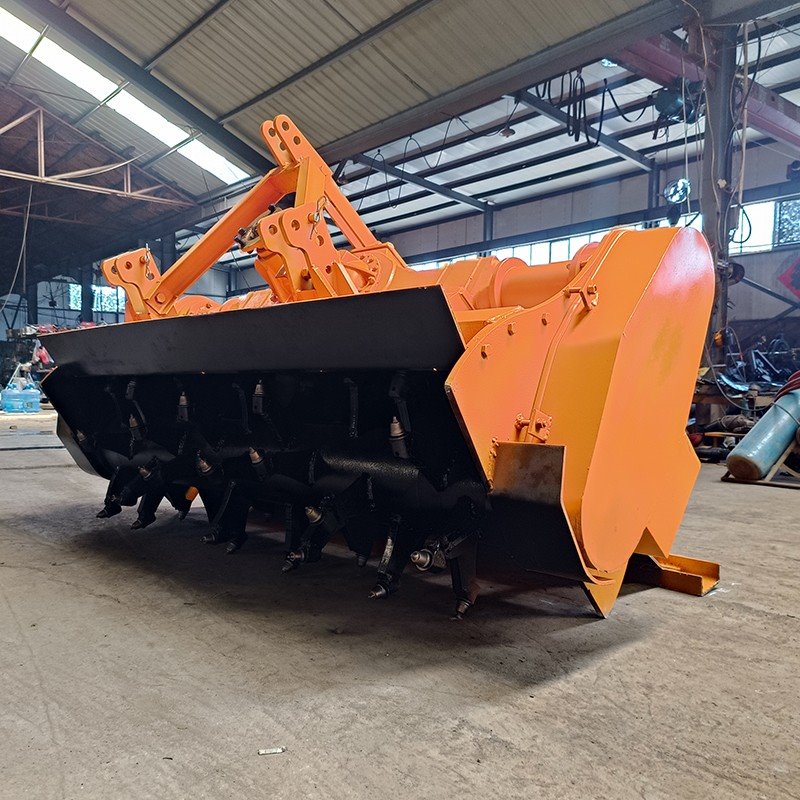

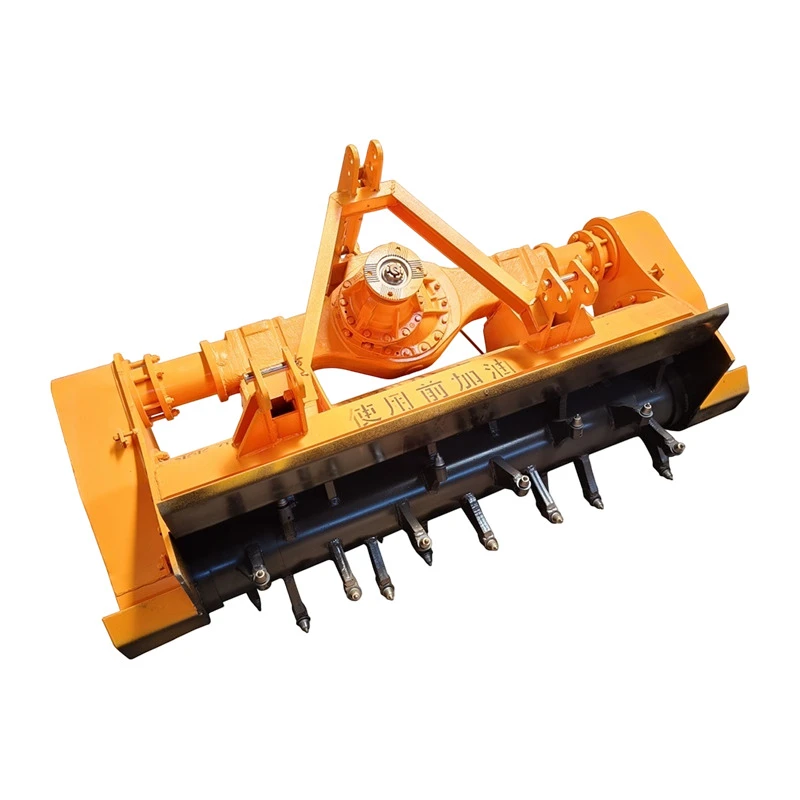

The triple chain steyr axle mixer is a heavy tractor three-point hitch mounted road subgrade mixing attachment built with reinforced three-row drive chains and genuine Steyr heavy rear axle assembly. This series includes three mainstream models: the 1.6m three-row chain mixer, 1.8m three-row chain mixer (WLB1800), and 2m three-row chain mixer (WLB2000). As a reliable rear axle soil stabilizer mixer and professional rear axle chain road mixer, it delivers powerful torque to blend raw soil, lime, cement and gravel evenly for stable road base construction. Its triple chain transmission structure effectively avoids slipping during deep hard-soil mixing, making it suitable for old road reconstruction, rural highway upgrading and farm land improvement projects worldwide.
Core Technical Parameter Table
|
Specification Item |
WLB1800 (1.8m three-row chain mixer) |

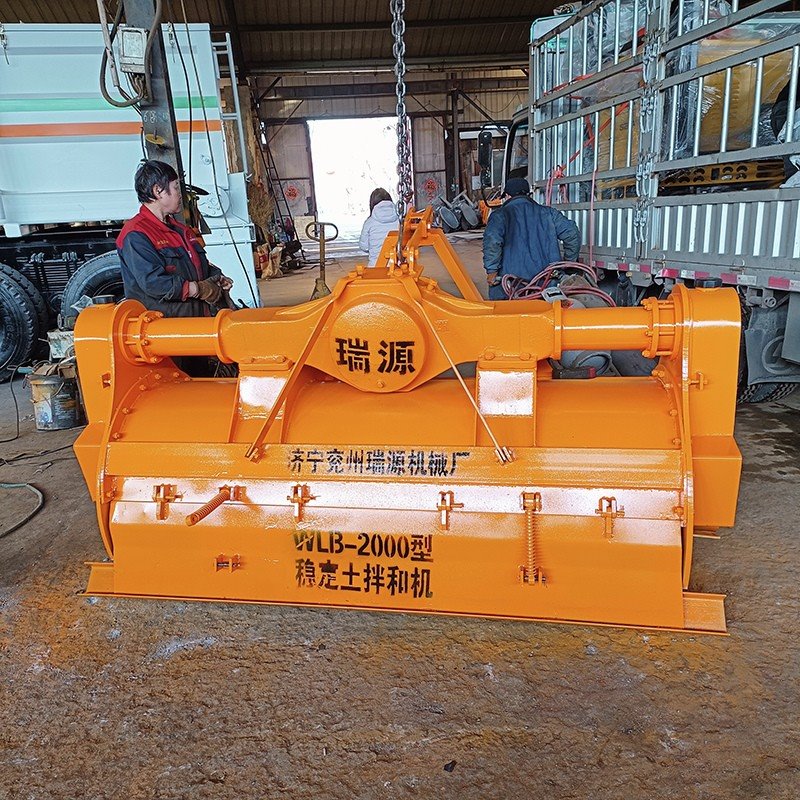

WLB2000 (2m three-row chain mixer) |
|
Overall Dimension |
215012001400 mm |
235012001400 mm |
|
Whole Machine Weight |
1200 kg |
1250 kg |
|
Single Blade Length |
200 mm |
|
|
Blade Combination |
Blade holder + forged blade plate + 20# alloy bullet tip |
|
|
Drive Chain Standard |
20A-3 triple row heavy-duty chain, |
|
|
Mixing Drum Diameter |
245 mm |
|
|
Working Depth Range |
0–30 cm loose mixing |
|
|
Core Transmission |
Original Steyr rear axle, heavy-duty differential |
|
Core Competitive Advantages
Triple Reinforced Chain Drive: Three parallel heavy-duty chains share mixing torque, resisting stretching and tooth jumping under high-load hard soil mixing, far more durable than single/dual chain mixers.
Authentic Steyr Heavy Rear Axle: Thick cast steel axle and differential bear continuous high torque without overheating, stable for all-day construction operations.
Replaceable Forged Alloy Bullet Blades: Separate bolt-on cutter tips allow partial replacement instead of full roller disassembly, greatly cutting maintenance expense.
Thickened Fully Enclosed Cabinet: Q345 manganese steel box reduces curing agent splashing waste and suppresses construction dust.
Full Customizable Width Options: Factory supports custom 1m, 1.2m, 1.4m, 1.6m, 1.8m and 2m working widths to match all road construction requirements.
Wide Application Fields
Municipal & Rural Highway Works
3:7 lime soil subgrade, cement stabilized soil, two-ash gravel mixing for village roads, branch urban roads and curb base treatment.
01
Old Pavement Renovation
Crushing and on-site mixing of aged asphalt/concrete roads for cold regeneration projects.
02
Factory & Campus Ground Construction
Parking lot, playground and factory yard lime soil base paving.
03
Agricultural Land Improvement
Saline-alkali soil modification, farm irrigation passage foundation mixing.
04
Complete After-Sales Support
1.12-month factory warranty covers Steyr rear axle, triple chain drive assembly and mixing drum under standard operating conditions.
2.Multilingual technical team provides 24/7 online video guidance for tractor matching, installation, lubrication and routine maintenance.
3.Fast global spare parts supply: alloy bullet blades, drive chains, axle seals and tension springs can be shipped within 7 working days after bulk FCL orders.
4.Custom modification service: adjust mixing depth limit, blade density and suspension bracket according to regional construction standards, free technical drawings provided for large importers.
Practical Common Fault Solutions
1.Rear axle chain road mixer triple chain jumps teeth during heavy lime-soil mixing Solution: Shut down tractor power, remove compacted soil and stones stuck in chain gaps; adjust spring tensioner to eliminate chain slack; refill heavy-duty gear oil into the Steyr rear axle.
2.Uneven mixing depth on undulating subgrade for the 1.8m three-row chain mixer Solution: Calibrate the floating front scraper's buffer springs to fit ground fluctuations; inspect tractor hydraulic lifting cylinder for oil leakage and replenish hydraulic fluid timely.
3.Alloy bullet blades wear rapidly on gravel-rich ground for the triple chain steyr axle mixer Solution: Slow tractor forward speed to reduce impact overload; prepare spare alloy cutter tips for batch replacement and clear stone debris around the mixing drum regularly.
4.Rear axle soil stabilizer mixer Steyr axle generates abnormal knocking noise Solution: Drain contaminated old gear oil and add high-viscosity anti-wear lubricant; disassemble to check for worn differential gears or damaged bearings and replace damaged components immediately.
