Product Introduction

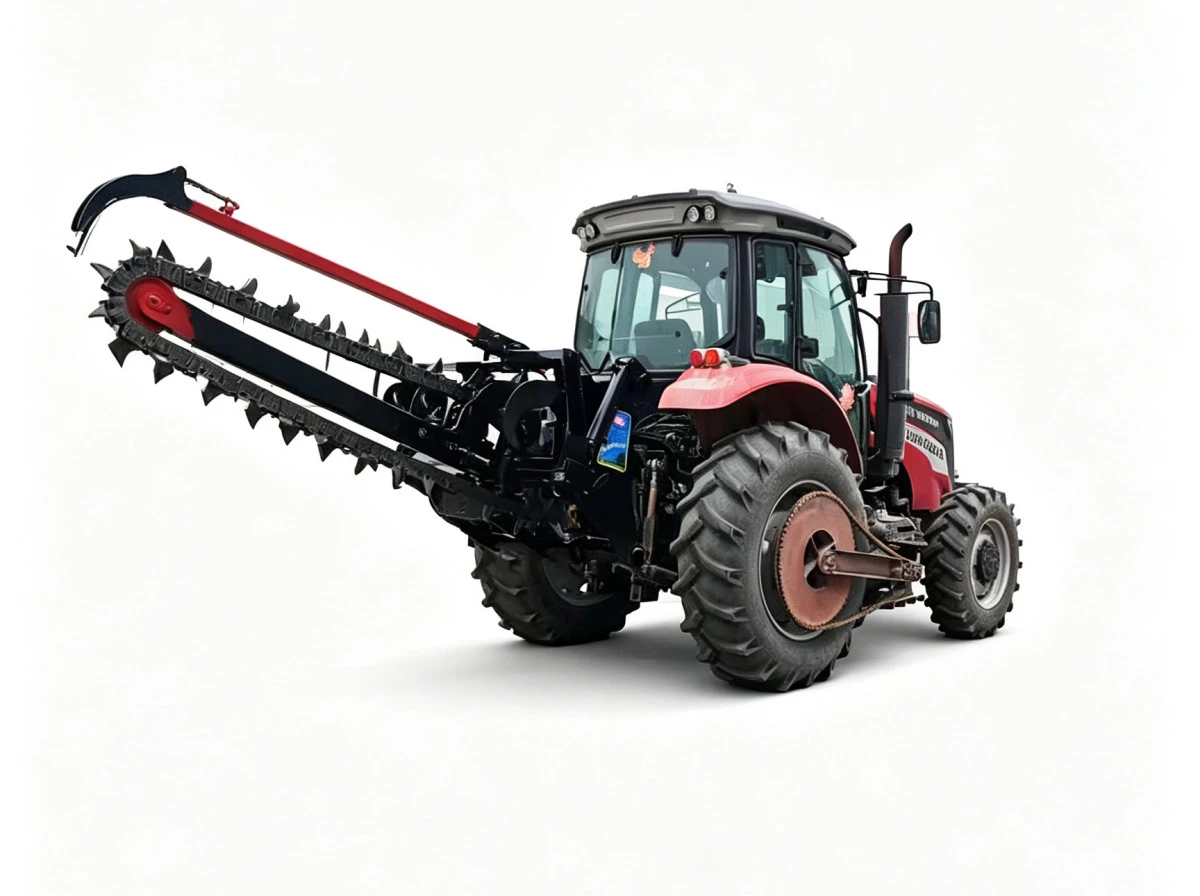

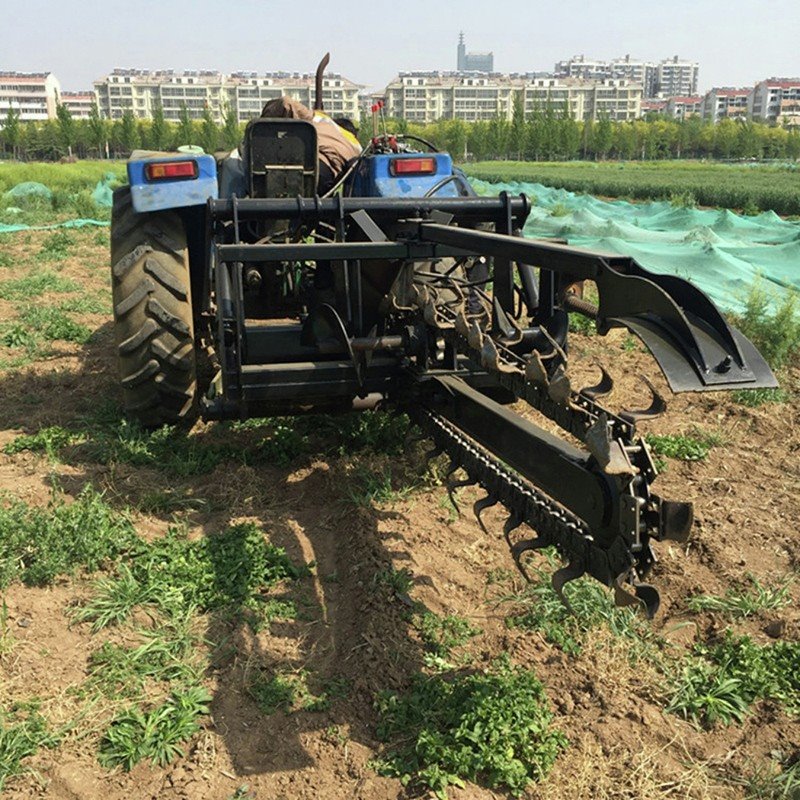

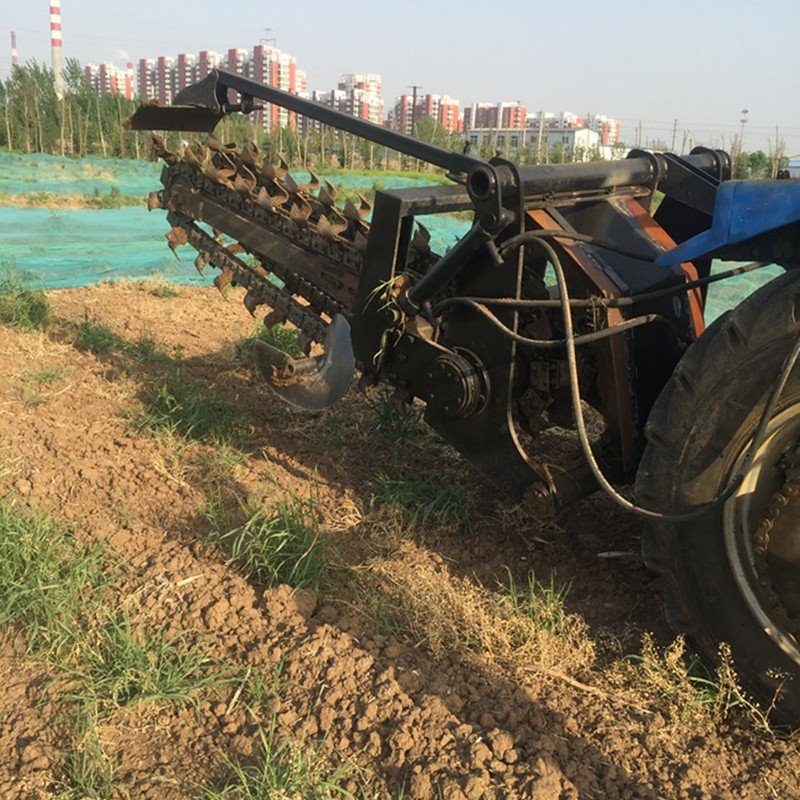

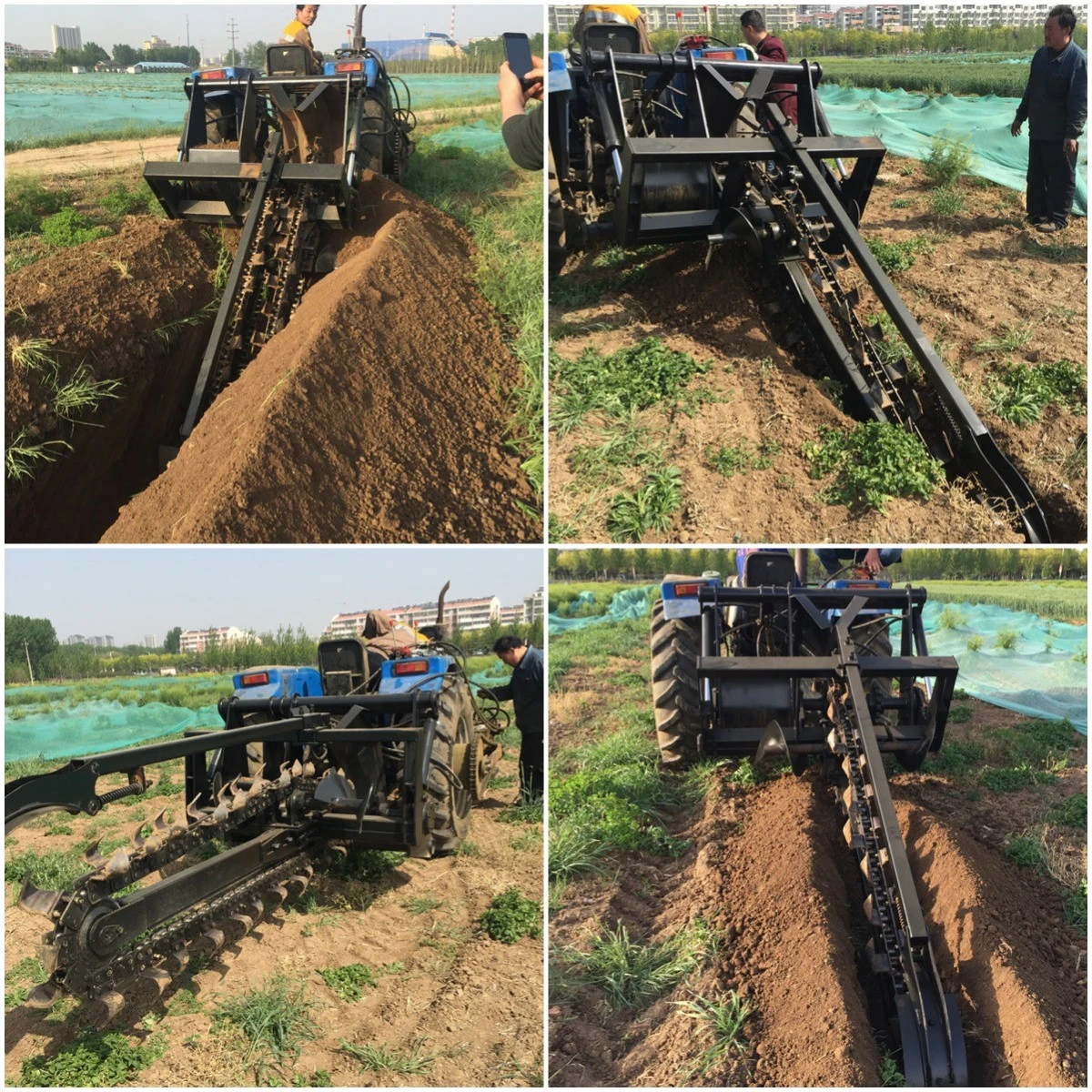

Our tractor-mounted chain trencher is a multi-functional orchard management equipment engineered to cover farm planting, fruit grove maintenance and municipal pipeline installation tasks. It acts as a high-efficiency pipeline trenching machine for burying water, gas and fiber optic cables, a compact garden trencher for small-scale garden drainage and planting trough digging, a robust agricultural trencher for farm irrigation ditches and yam cultivation furrows, and a heavy-duty chain pipeline trenching machine designed for deep underground wiring projects. Equipped with standard three-point linkage to match 50–240HP tractors with creeper low-speed gears, this unit performs stable excavation on sand, loam, red soil and orchard loose ground, delivering vertical smooth trenches without soil backflow. It is widely adopted by farm contractors, orchard owners and municipal engineering wholesalers

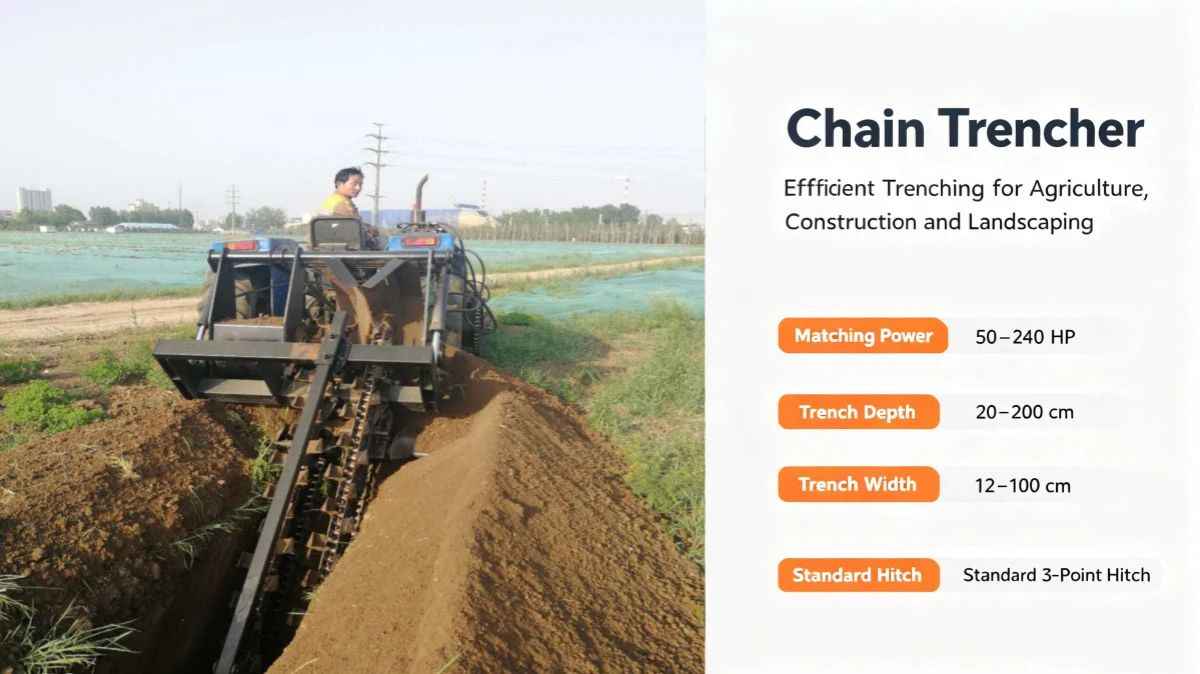

Technical Parameters
|
Product Name |
orchard management equipment |
|
Supporting Tractor |
50–240HP wheel tractor with ultra-low creeper gear |
|
Digging Depth |
20–200cm; single chain for depth ≤30cm, double chain for 30–100cm |
|
Trench Width |
Customizable range from 12cm to 100cm |
|
Working Efficiency |
240–500 meters of trench per hour |
|
Machine Weight |
500kg to 1200kg, varying by chain configuration |
|
Mounting Form |
Universal 3-point tractor hitch |
|
Soil Discharge Design |
Twin spiral side throwing structure |
Premium Material Specification

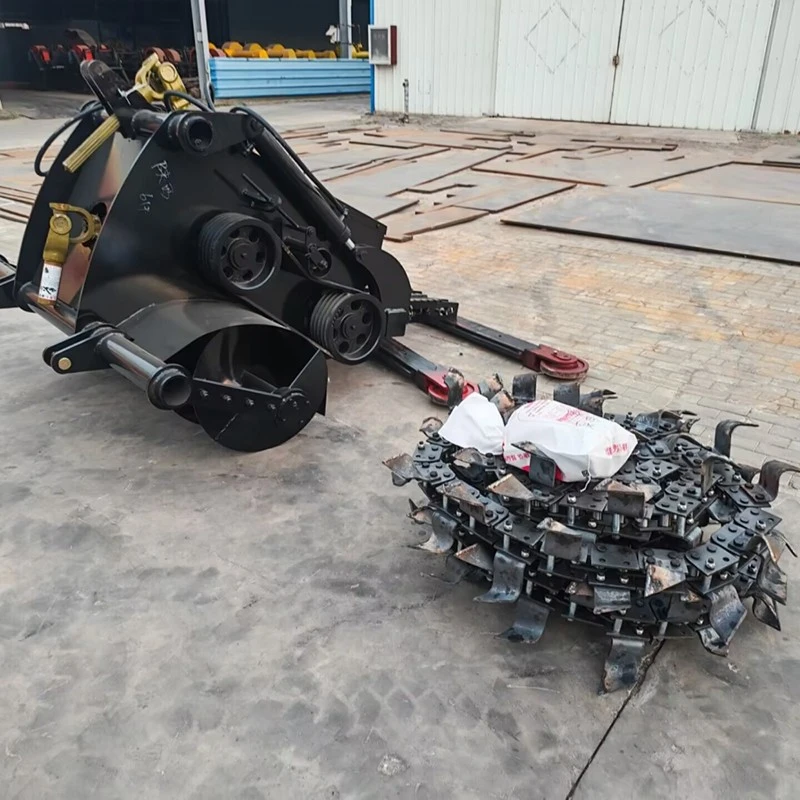

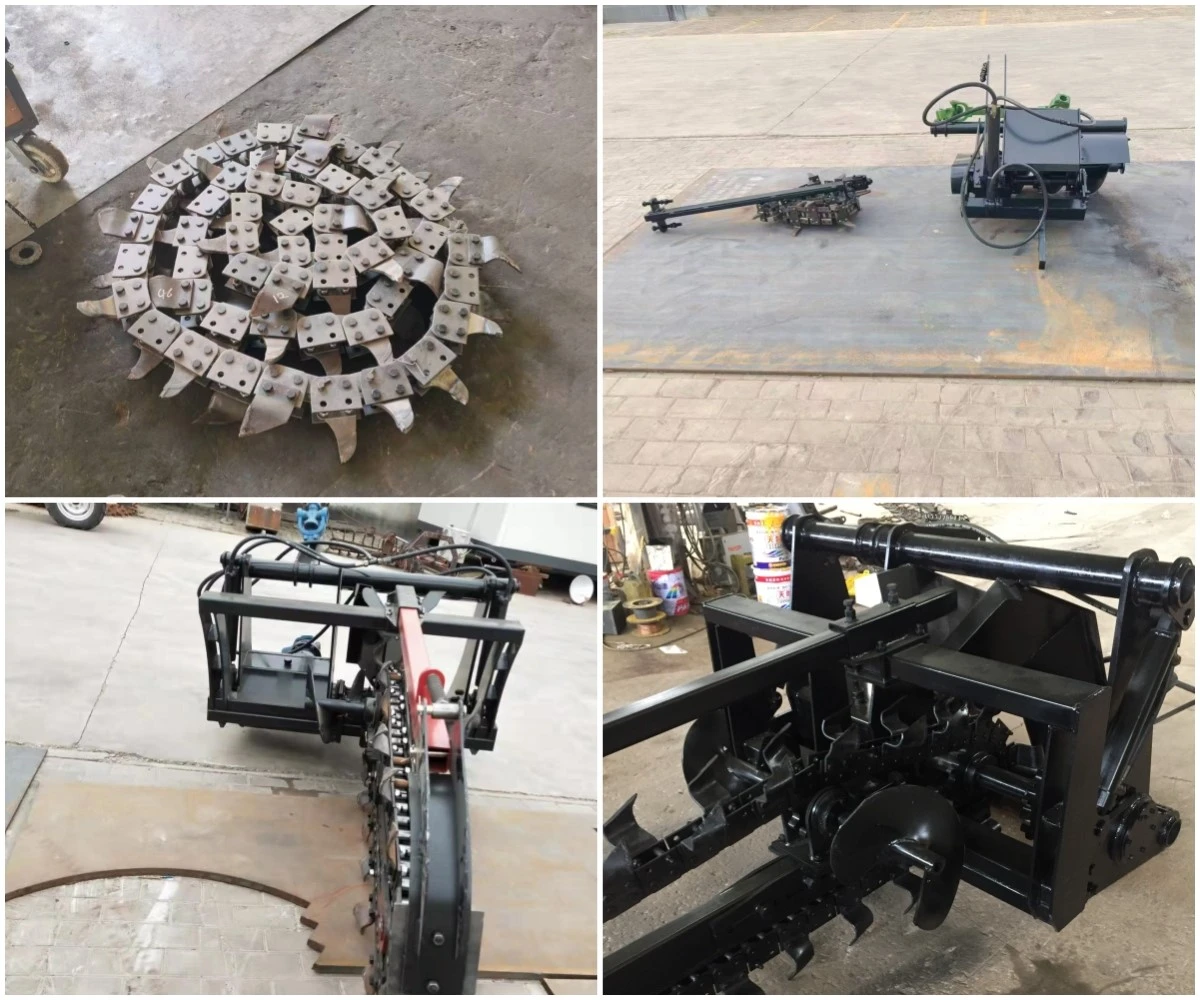

The whole machine frame is built with thickened high-strength carbon steel. The drive chain adopts national standard manganese steel with strong anti-impact performance, while each digging tooth is welded with tungsten carbide alloy tip to resist abrasion against hard soil and small stones. The gearbox housing uses cast steel for stable power transmission, and hydraulic pipelines are anti-corrosion rubber hoses that adapt to all weather outdoor operations. All bolt fasteners are galvanized to avoid rust during long-term field work.

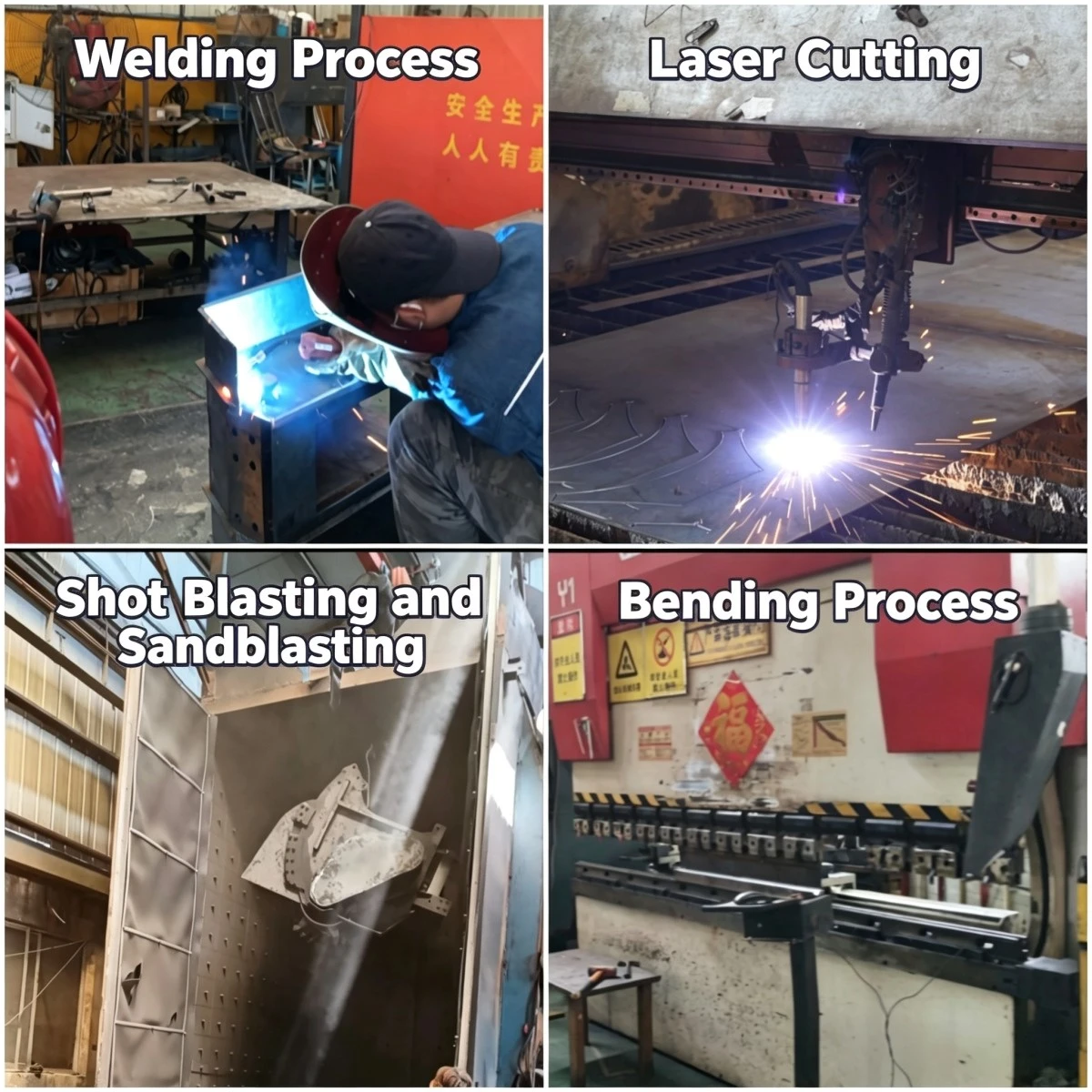

Strict Production Manufacturing ProcessIndustry Solutions
Every unit undergoes four core precision production steps to guarantee stable quality for bulk buyers:
Laser Cutting
Precise metal plate cutting with zero dimensional error for all frame and chain components.
01
CNC Bending
Standardized bending for structural brackets to ensure stable tractor mounting.
02
Shot Blasting & Sandblasting
Full surface rust removal to enhance paint adhesion and anti-rust lifespan.
03
Full Seam Welding
Manual full penetration welding by certified welders, eliminating fracture risks under heavy digging loads.
04
FAQ
1.What tractor configuration is mandatory to operate this agricultural trencher?
A: It requires a wheel tractor from 50HP to 240HP equipped with dedicated creeper ultra-low speed gear.
2.Can the garden trencher dig fertilizer ditches for dense fruit tree orchards?
A: Yes, narrow customized trench widths fit compact orchard rows without damaging tree roots.
3.What maximum digging depth can the chain pipeline trenching machine reach for underground pipelines?
A: Adjustable maximum depth hits 200cm to satisfy deep burial of water supply and gas pipelines.
4.Is the pipeline trenching machine usable on clay and high-moisture soft farm soil?
A: Its spiral soil discharge system effectively separates sticky mud and prevents trench backfilling.
5.Are replacement alloy digging teeth included in the standard order package?
A: We supply a set of spare wear-resistant teeth free for full container bulk orders.
6.Can we customize trench width for optical cable laying construction projects?
A: Custom widths between 12cm and 100cm are supported based on client pipeline diameter demands.
7.How many linear meters can this orchard trenching equipment finish within one working hour?
A: Output ranges from 240 to 500 meters hourly, depending on soil hardness and target depth.
8.What after-sales warranty coverage do you offer for bulk international orders?
A: Core components including gearbox and drive chains enjoy a 12-month factory warranty, plus 24/7 online engineer guidance.
