Product Introduction

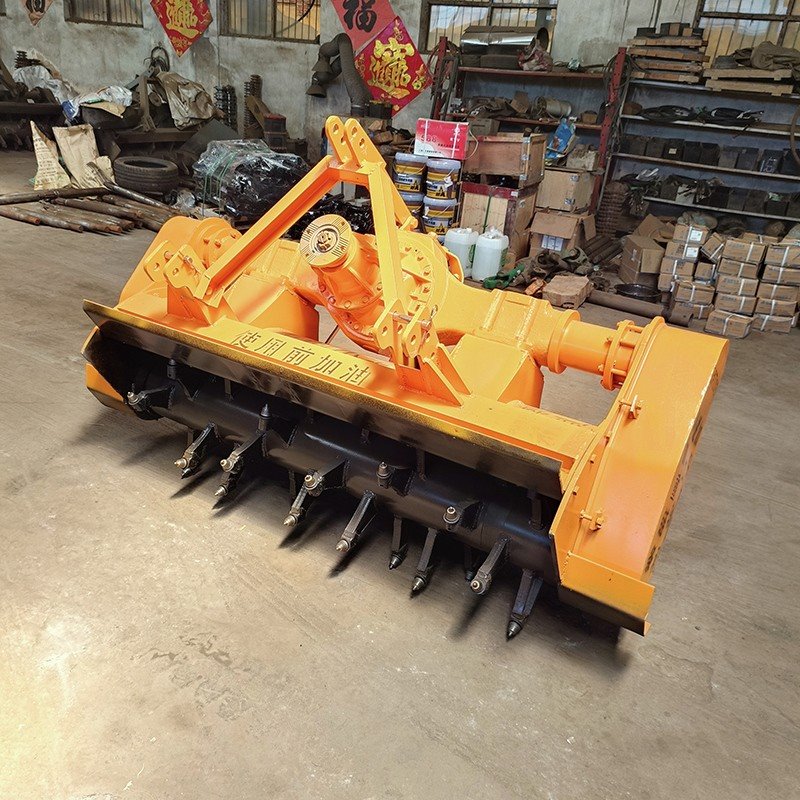

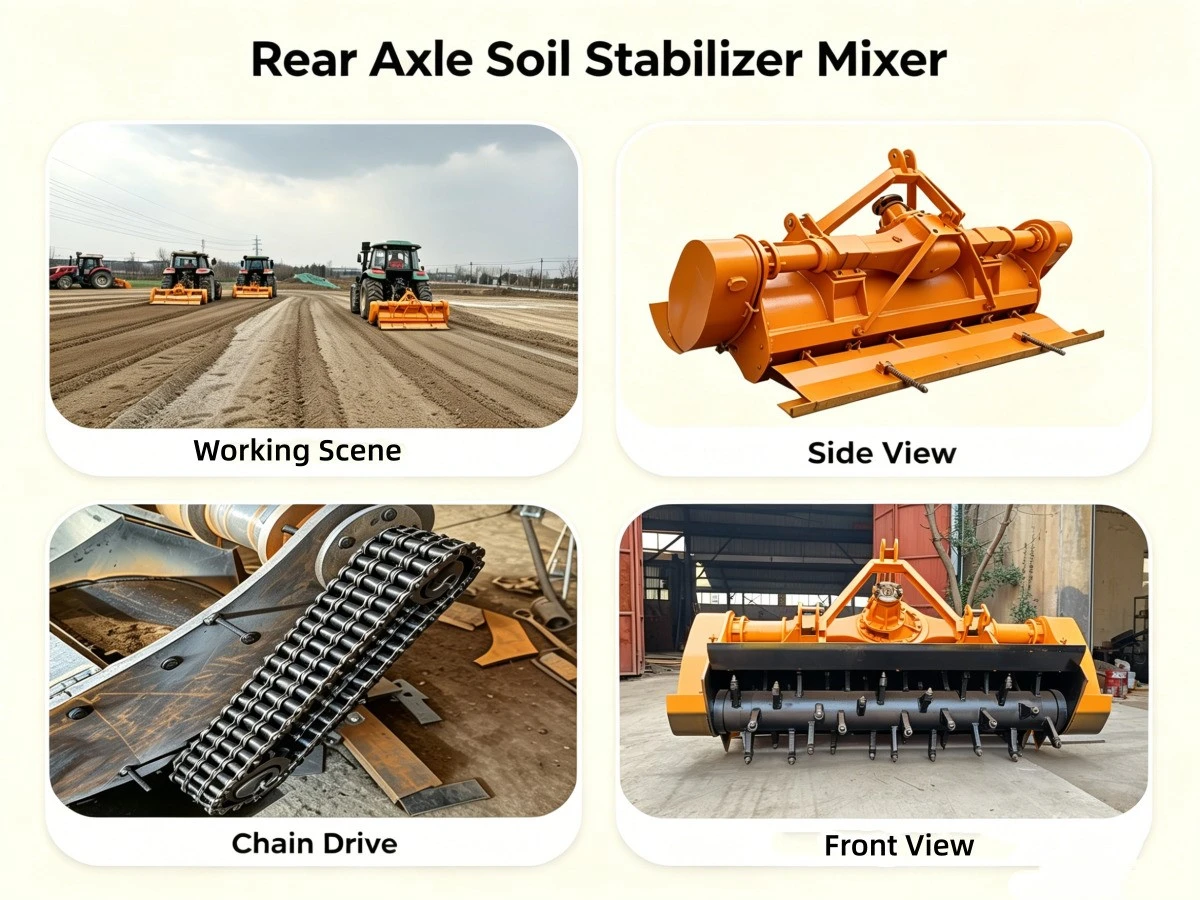

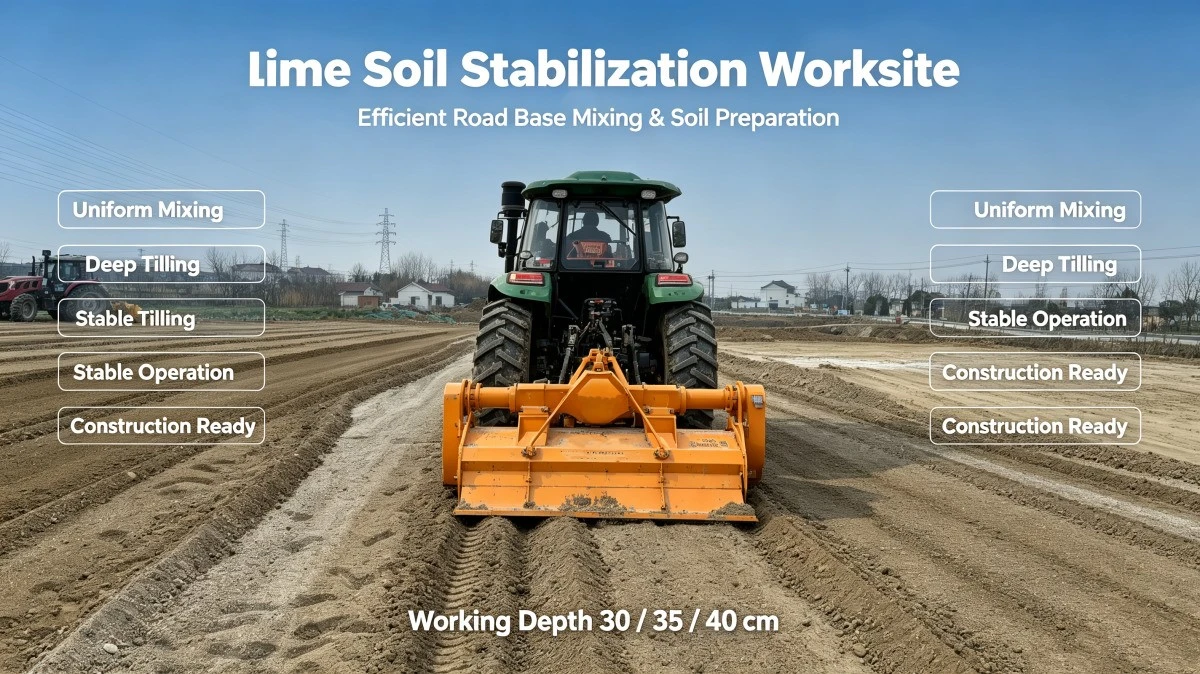

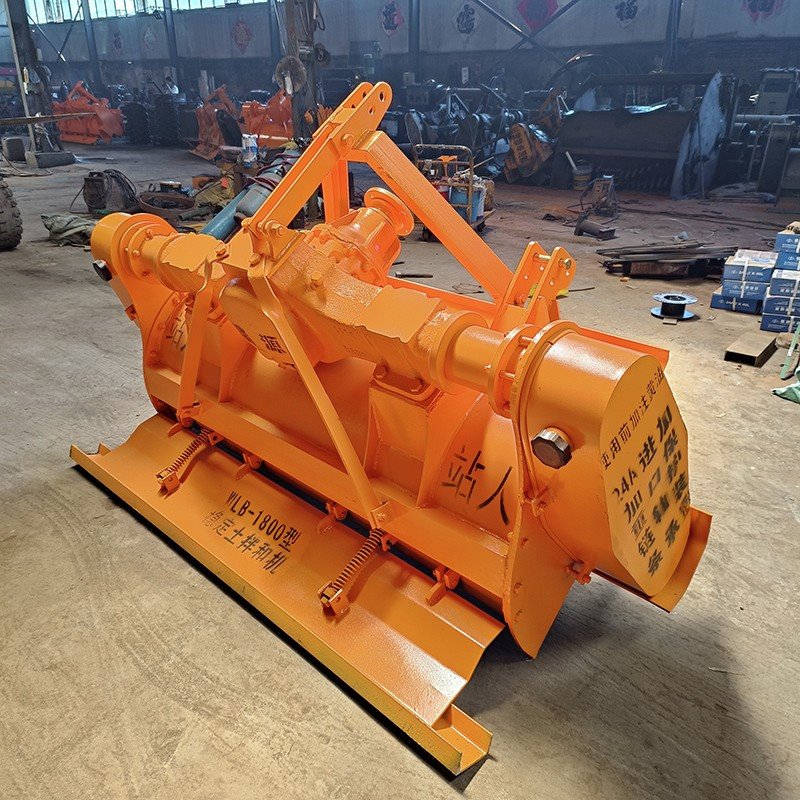

The double chain Steyr axle mixer is a tractor three-point hitch mounted road subgrade mixing attachment built with dual heavy-duty drive chains and genuine Steyr automobile rear axle assembly. Our lineup covers three mainstream specifications: the compact 1.6m double-row chain stabilizer, standard 1.8m stabilizer (WLB1800), and wide-format 2m stabilizer (WLB2000). As a durable automobile rear axle stabilizer and professional steyr rear axle road stabilizer, it mixes raw soil, lime, cement and gravel evenly to form solid road base layers. The dual-chain transmission design balances torque distribution during deep hard-soil mixing, avoiding single-chain overload breakage, making it widely adopted for rural highway reconstruction, municipal branch road foundation treatment and farm land consolidation projects.
Core Technical Parameter Table
|
Specification Item |
WLB1800 (1.8m three-row chain mixer) |
WLB2000 (2m three-row chain mixer) |
|
Overall Dimension |
215012001400 mm |
235012001400 mm |
|
Whole Machine Weight |
1200 kg |
1250 kg |
|
Single Blade Length |
200 mm |
|
|
Blade Combination |
Blade holder + forged blade plate + 20# alloy bullet tip |
|
|
Drive Chain Standard |
20A-3 triple row heavy-duty chain, |
|
|
Mixing Drum Diameter |
245 mm |
|
|
Working Depth Range |
0–30 cm loose mixing |
|
|
Core Transmission |
Original Steyr rear axle, heavy-duty differential |
|
Core Competitive Advantages
Balanced Double Chain Drive System: Two parallel heavy-duty chains share mixing load, reducing chain stretching and tooth jumping compared to single-chain mixing equipment, extending service life significantly.
Genuine Steyr Heavy Rear Axle: Thick cast steel automobile rear axle bears continuous high torque without overheating, stable for all-day construction on gravel and compacted subgrade.
Modular Alloy Bullet Blades: Each mixing tip is independently bolt-mounted; worn cutters can be replaced separately without disassembling the whole mixing roller to cut maintenance costs.
Spring Floating Sealing Scraper: Front adjustable scraper fits undulating ground tightly, prevents curing agent leakage and guarantees uniform mixing depth across uneven terrain.
Multiple Custom Working Widths: Factory supports custom production of 1.6m, 1.8m and 2m models to match narrow farm passages and wide municipal main roads.

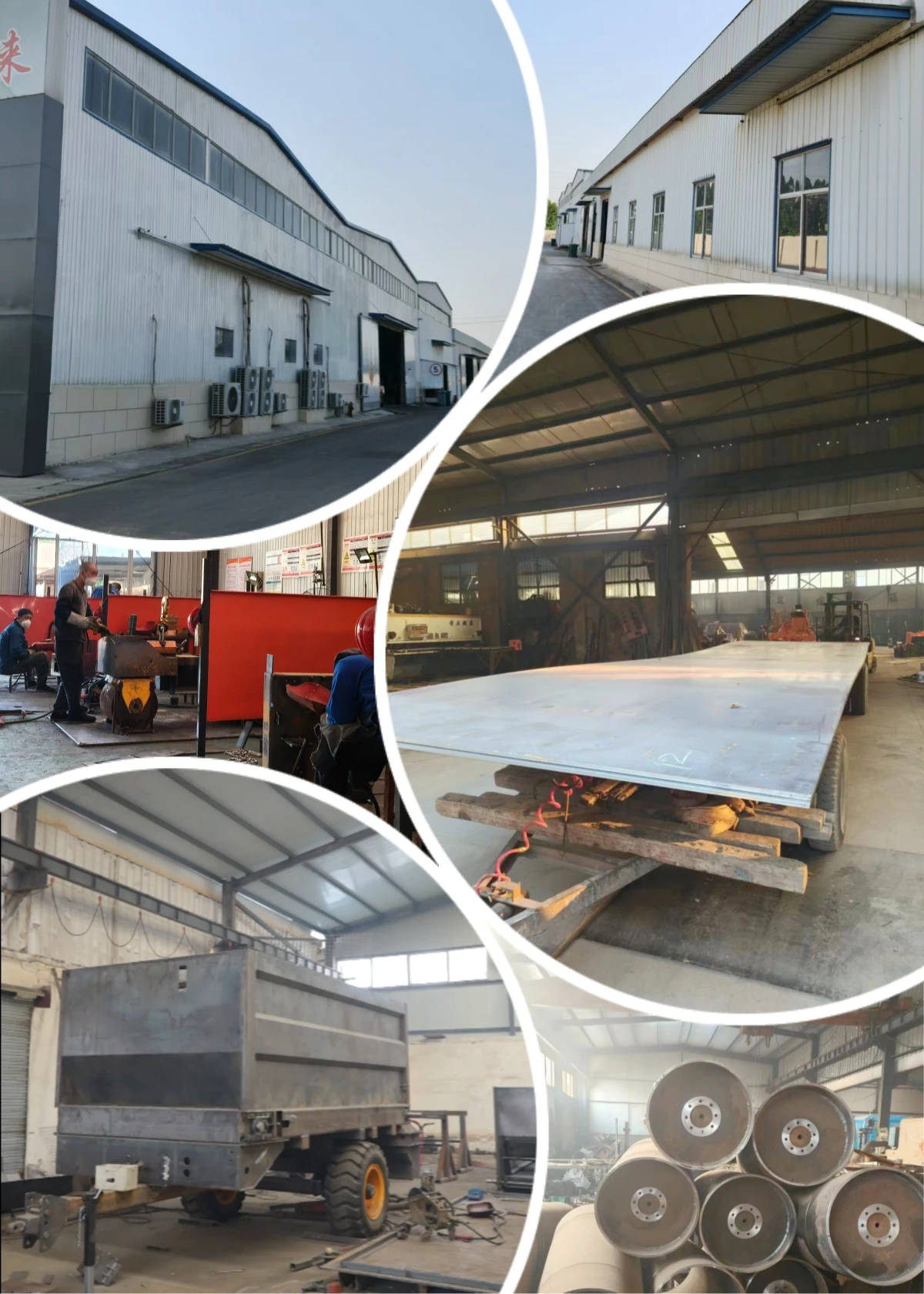

Advanced Manufacturing & Process Technology
1.High-Strength Manganese Steel Raw Material: Closed mixing cabinet and mixing drum adopt thick Q345 manganese steel plate, processed via precise laser cutting to eliminate dimensional errors.
2.Full Penetration Heavy Welding: All load-bearing frame and cabinet joints are fully welded by certified welders to prevent cabinet deformation under long-hour heavy mixing loads.
3.Shot Blasting Anti-Corrosion Treatment: Complete surface shot blasting removes rust and oxide layers, followed by double anti-rust primer and weather-resistant finish paint for outdoor construction durability.
4.Hot-Forged Alloy Cutting Tips: Bullet-shaped mixing teeth are hot forged with 20# native alloy steel, featuring strong impact resistance against hard soil and small gravel.
5.Pre-Delivery Full Load Inspection: Every finished double chain Steyr axle mixer undergoes 2-hour continuous high-load running test to verify gearbox, chain and mixing roller stability before export packaging.
FAQ
1.What tractor horsepower is required to match this steyr rear axle road stabilizer?
A: The 1.6m double-row chain stabilizer fits 70–90HP tractors; 1.8m and 2m models need tractors above 90 horsepower for sufficient mixing torque.
2.Can the mixing depth of this series stabilizer be adjusted freely?
A: Yes, users control mixing depth by adjusting the tractor suspension lifting height according to local subgrade construction standards.
3.Are spare alloy bullet blades provided for full-container bulk orders?
A: One full set of wear-resistant alloy cutter tips is supplied free of charge for all FCL wholesale shipments.
4.What ground materials is this automobile rear axle stabilizer suitable for?
A: It works well on loam, sandy soil and mixed soil with small gravel; large boulders need pre-clearing to protect mixing blades.
5.How long is the service life of the standard 24A double-row drive chain?
A: The thickened 24A heavy-duty double chain can operate continuously for 800–1000 hours under normal construction conditions.
6.Can we get customized structural modifications for special construction scenarios?
A: We offer custom scraper height, blade density and suspension bracket adjustments to fit regional road construction specifications.
7.What packaging is adopted for overseas export orders?
A: Fumigated solid plywood wooden cases with internal shockproof cushioning to avoid collision damage during long-distance sea transportation.
8.What warranty and technical support do we provide for overseas clients?
A: Core Steyr rear axle and mixing drum enjoy a 12-month factory warranty, paired with 24/7 multilingual online video operation and maintenance guidance.
