Product Introduction

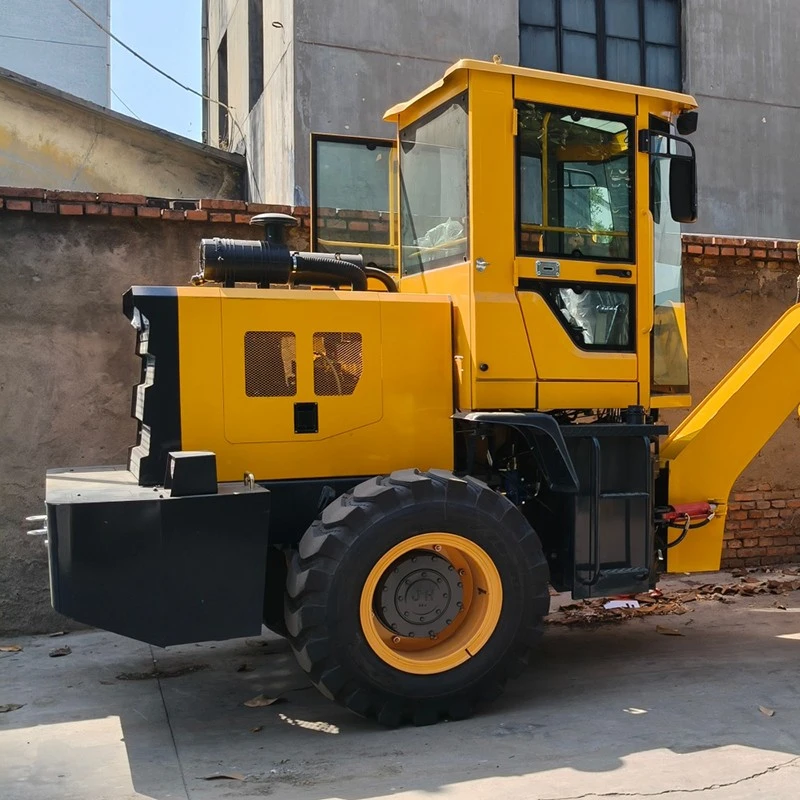

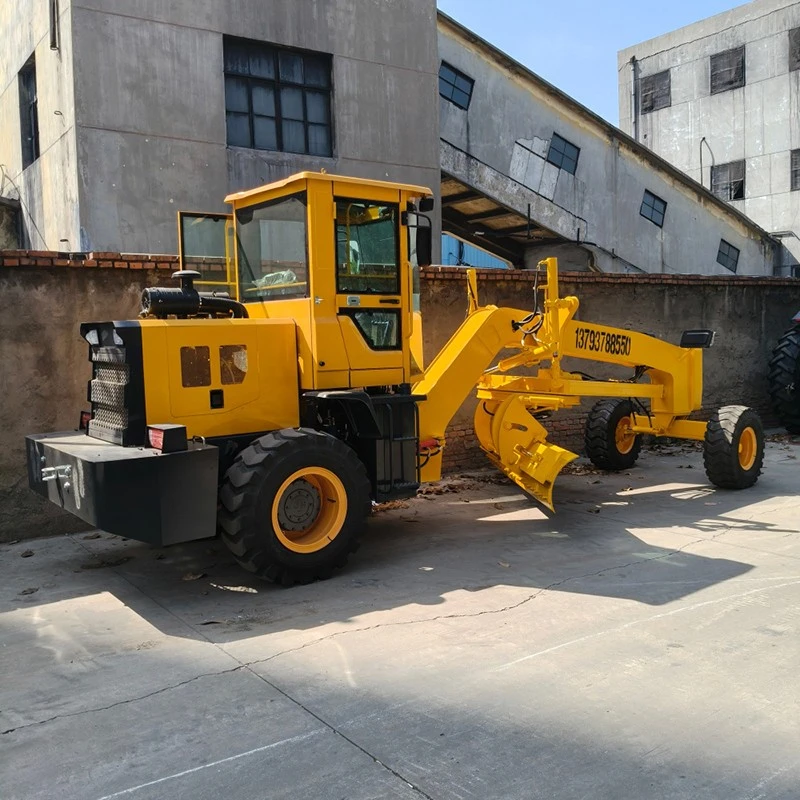

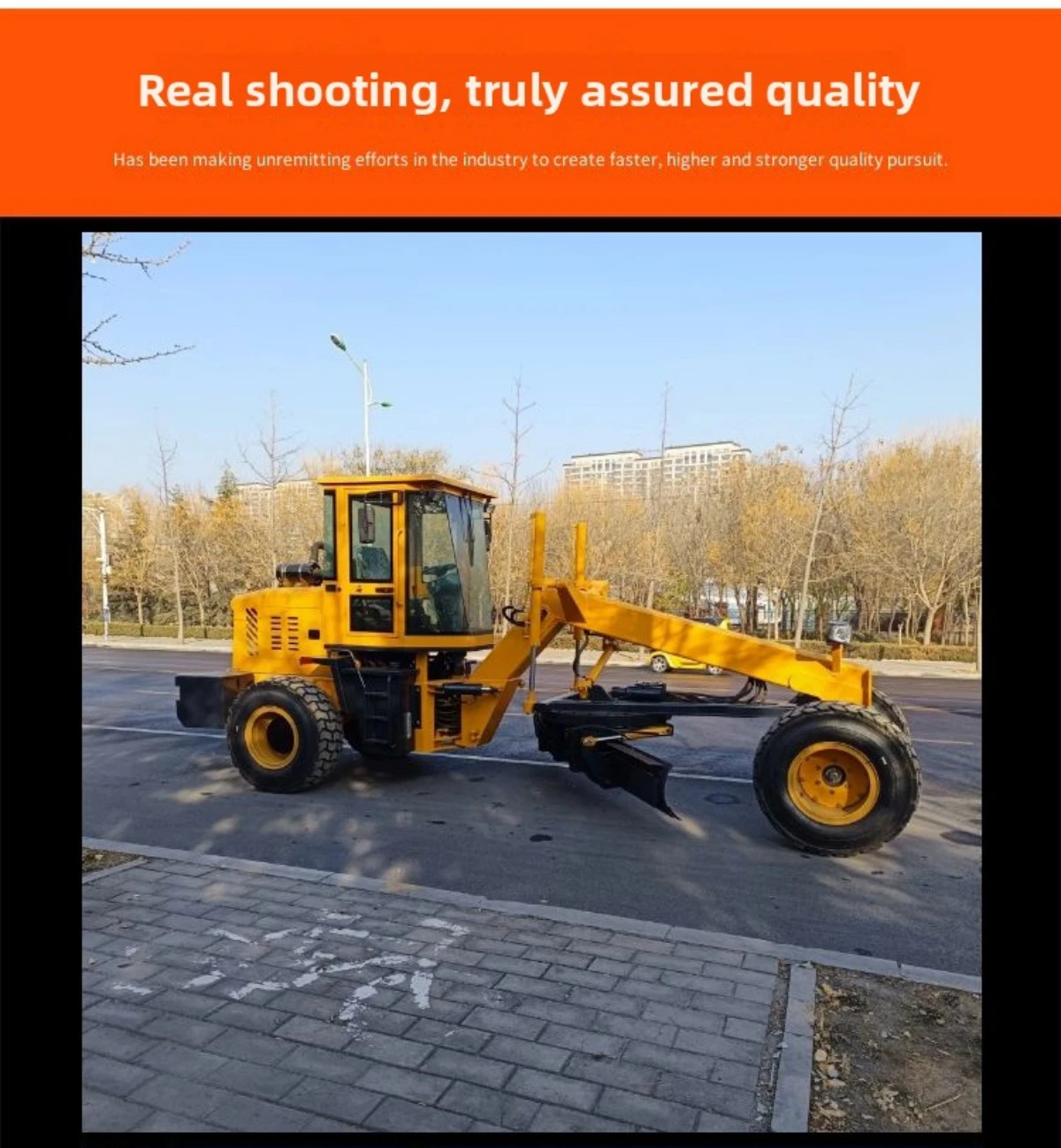

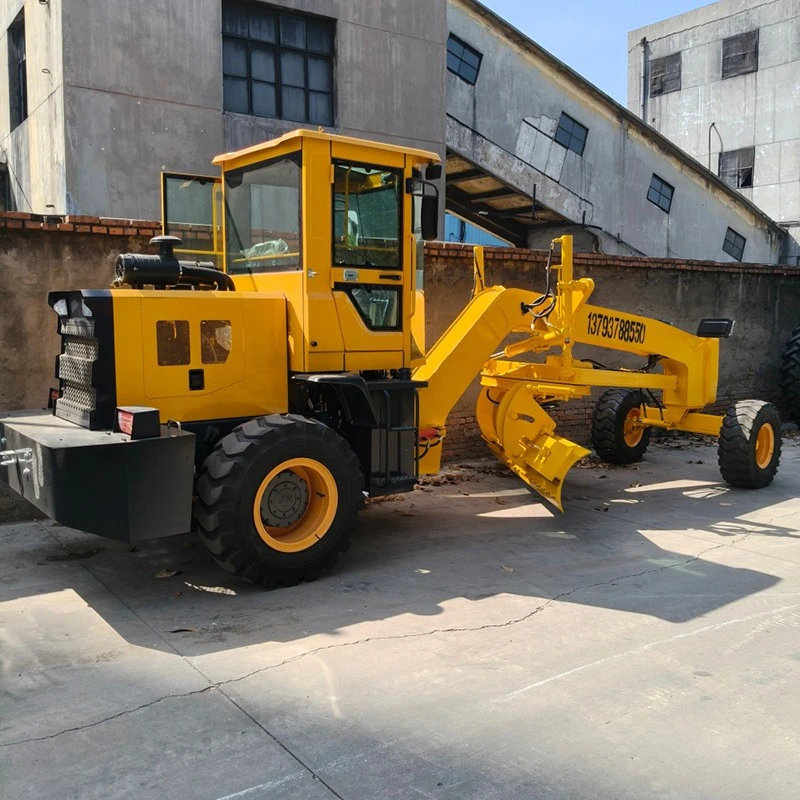

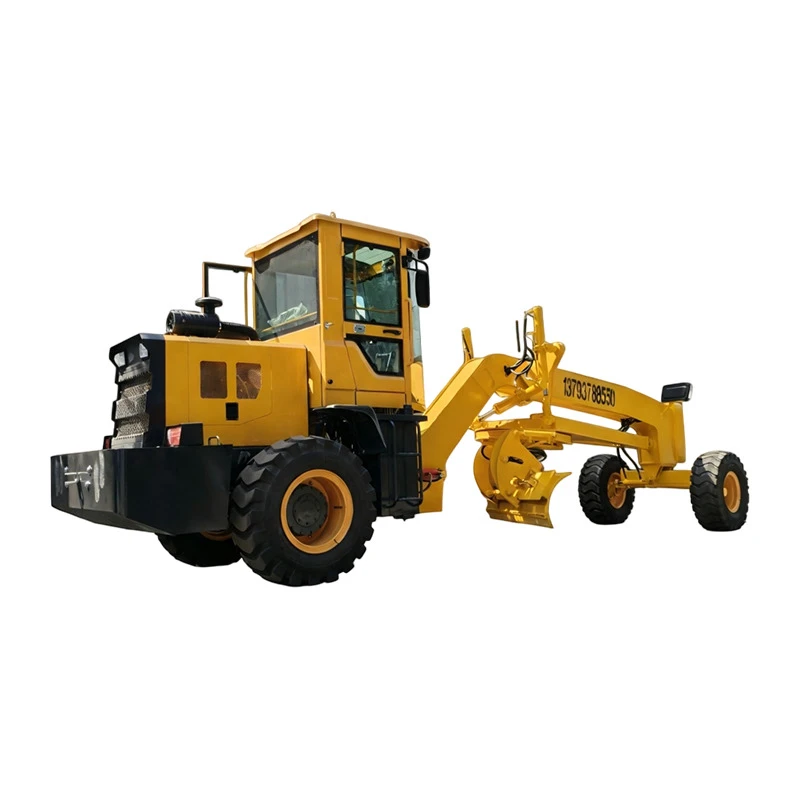

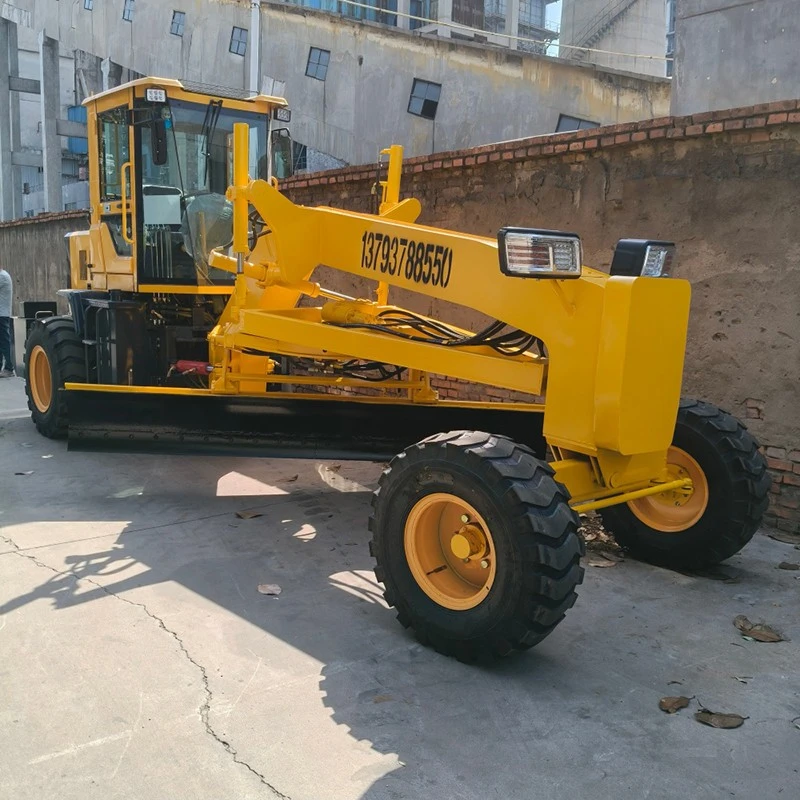

The Type 100 self-propelled grader is an integrated independent driving engineering machine equipped with a built-in power unit. Unlike towed leveling machinery, this Type 100 self-propelled grader adopts full hydraulic control structure and torque converter transmission, eliminating the need for external traction equipment. As reliable engineering leveling equipment, it delivers stable precision during ground finishing operations and adapts to diverse construction environments. This Type 100 self-propelled grader balances compact body size and sufficient working power, serving as a versatile small grader for medium and light-duty leveling projects.
Technical Parameters
|
Item |
Specification |
|
Overall Dimension (L×W×H) |
7100 × 2000 × 2800 mm |
|
Rated Power |
73.5 Kw |
|
Maximum Traction |
21 kN |
|
Blade Length |
3000 mm |
|
Hydraulic Action Quantity |
7 |
|
Tyre Model |
425/70/20 |
|
Rotary Table Diameter |
1200 mm |
|
Blade Rotation Angle |
170° |
|
Transmission System |
Torque Converter Gearbox |
|
Braking Mode |
Air Brake |
|
Machine Weight |
5 Ton |
Product Advantages
Independent walking design with integrated engine, convenient for site transfer without auxiliary vehicles.

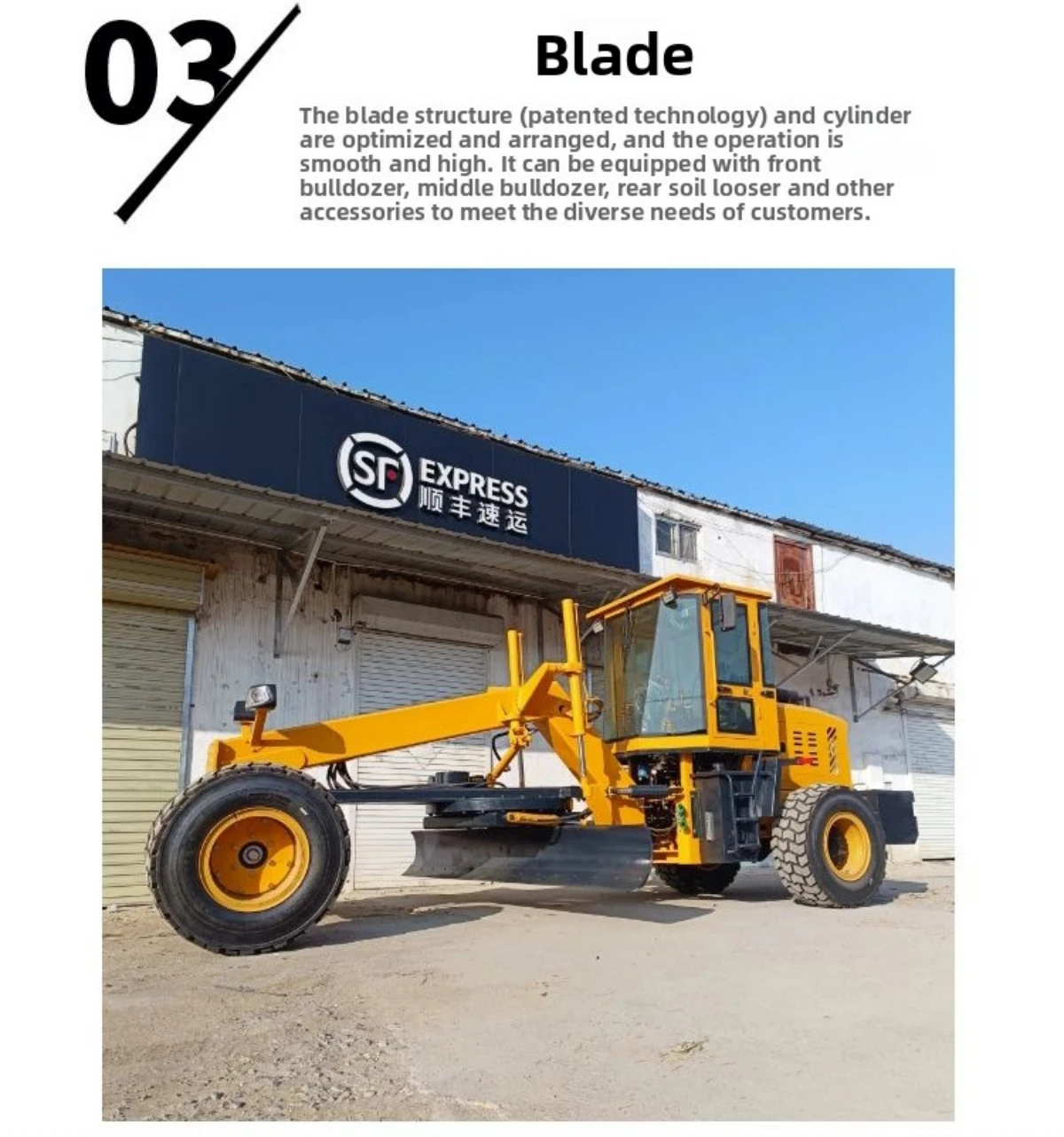

170° rotatable scraper blade enhances flexibility, suitable for slope trimming and material spreading.
Air brake system guarantees stable braking performance under complicated working terrain.
Compact 5-ton body reduces ground pressure, avoiding damage to unfinished foundation surface.
Mature hydraulic control system supports smooth operation and lowers operator fatigue during long shifts.
Application Fields

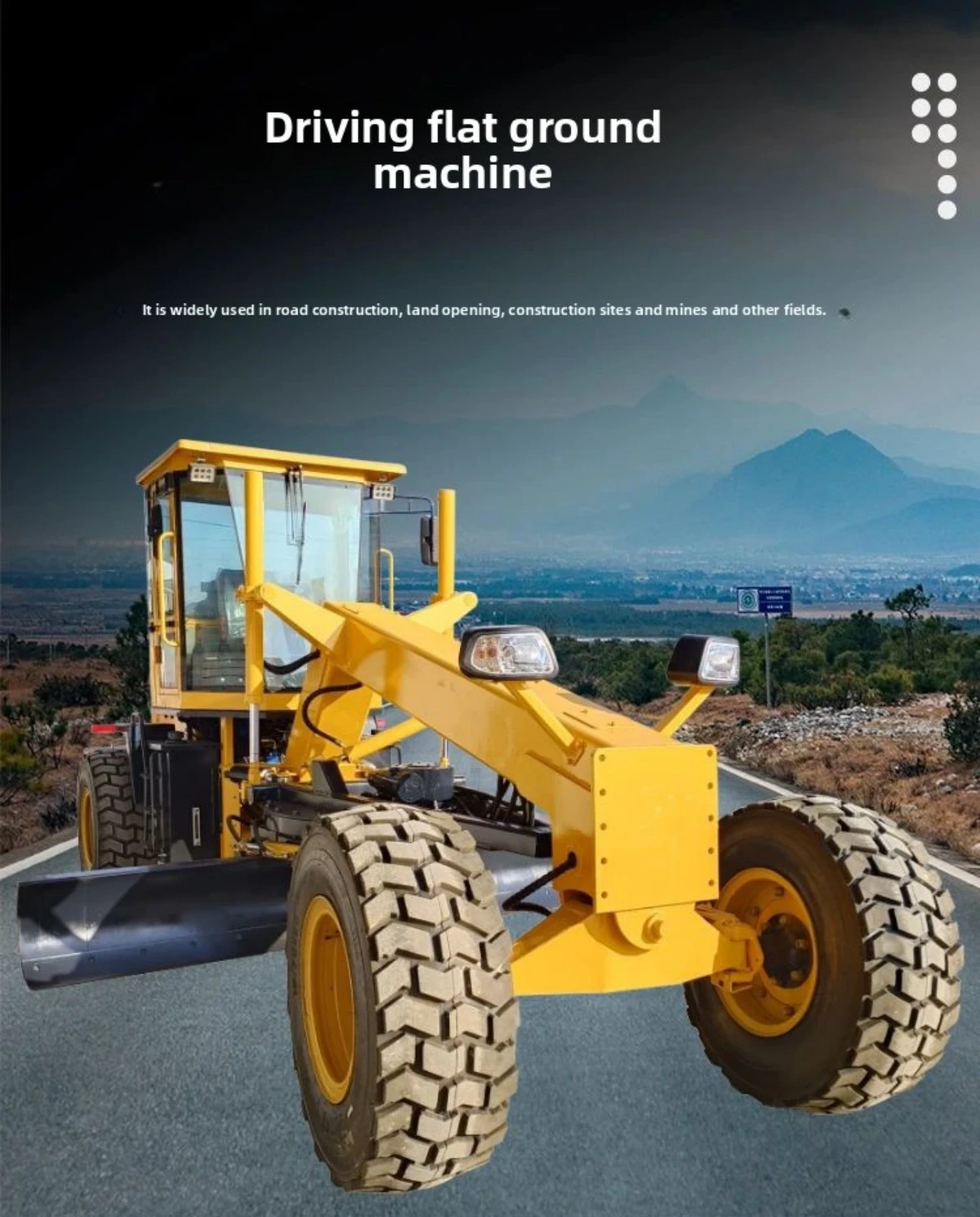

It functions as a professional subgrade grader for highway and rural road base trimming. It also acts as pavement leveling machine for airport ground, mining yard flat finishing. Besides infrastructure projects, it can be used as agricultural leveler for farmland land consolidation and pasture ground sorting.
Customer Feedback
Purchasers comment that the machine is easy to operate and maintain. Its small footprint allows construction in narrow job sites. Many buyers point out it offers outstanding cost performance compared with large graders, perfectly matching medium-sized construction contractors' budget demands.
Common Troubleshooting Solutions
Insufficient traction
Check hydraulic oil level and torque converter oil quality; replace deteriorated hydraulic fluid on schedule.
01
Slow blade movement
Clean hydraulic filter element, inspect pipeline for oil leakage, adjust hydraulic pressure value.
02
Poor braking effect
Examine air circuit sealing, drain accumulated water inside the air storage tank regularly.
03
Engine power drop
Clean air filter, inspect fuel pipeline blockage, maintain regular engine service cycles.
04
