Product Introduction

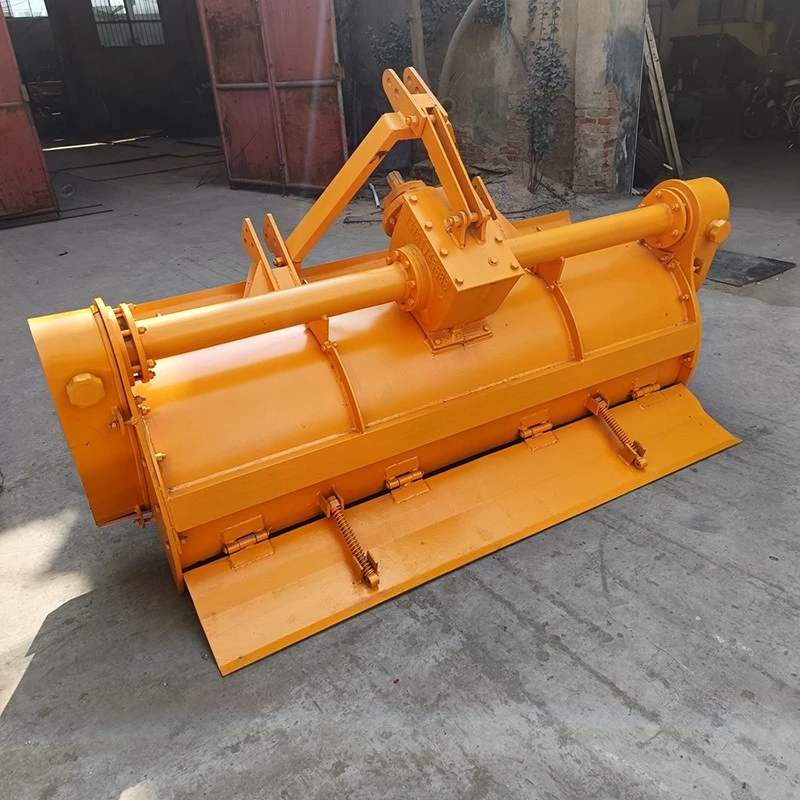

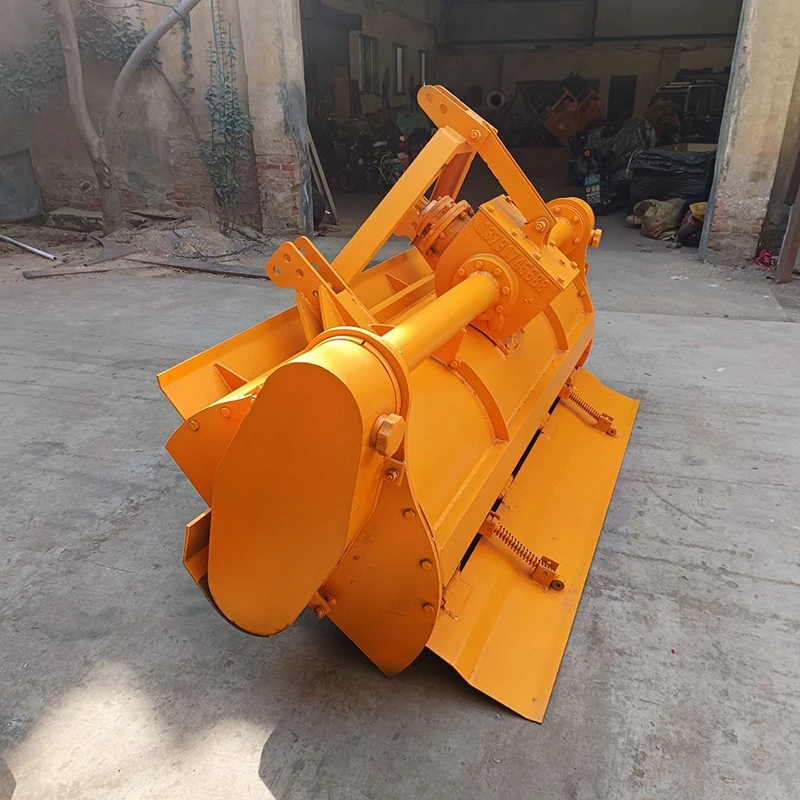

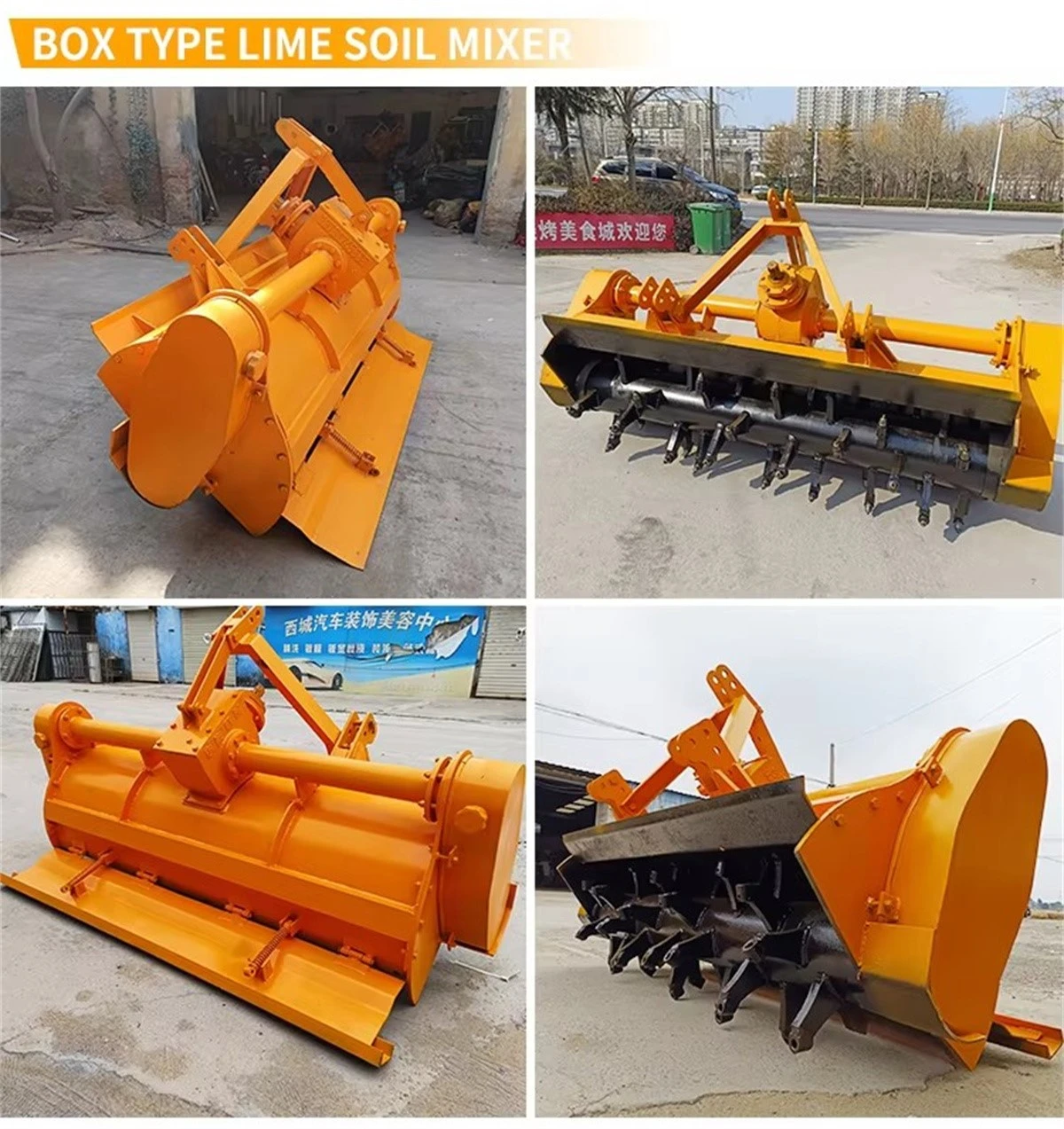

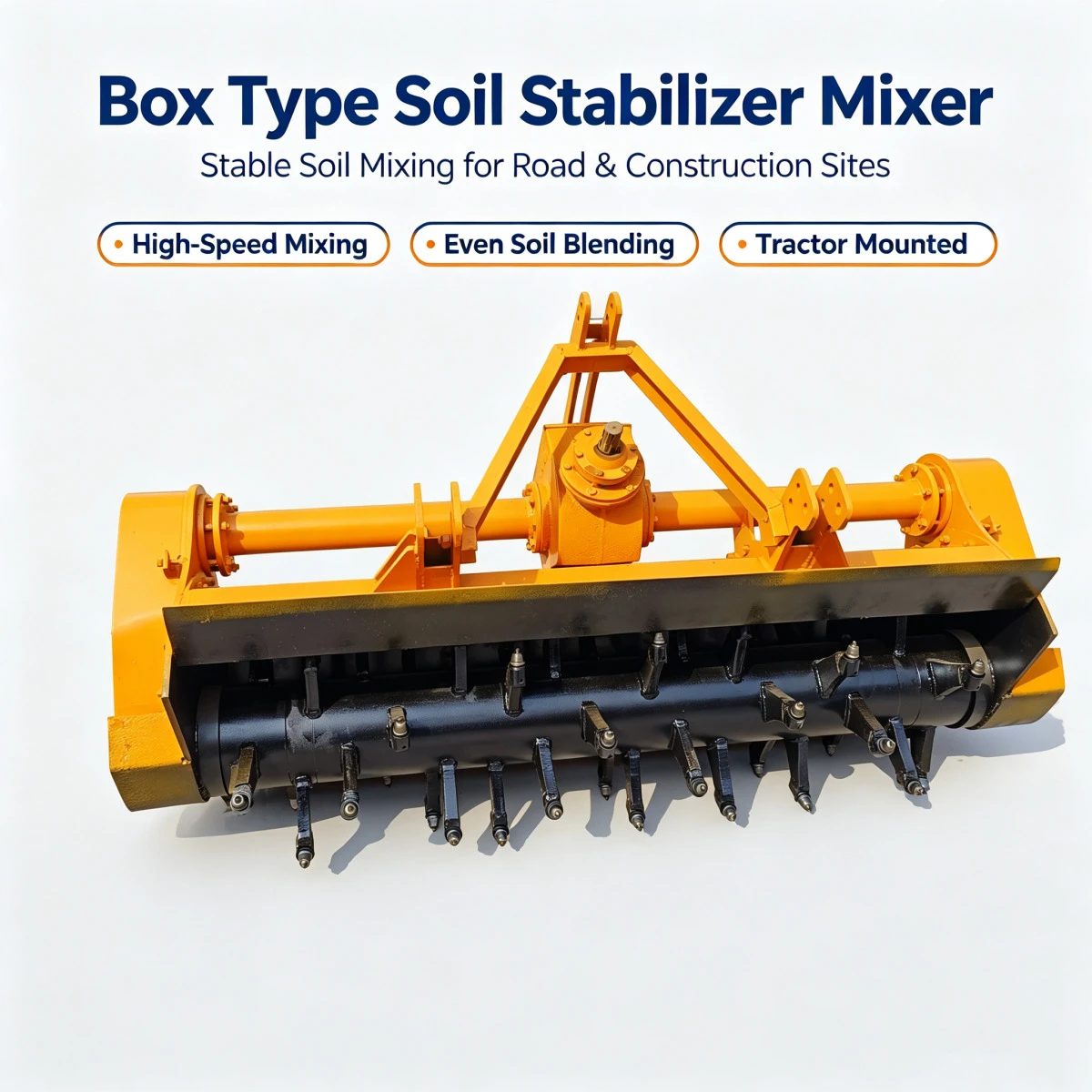

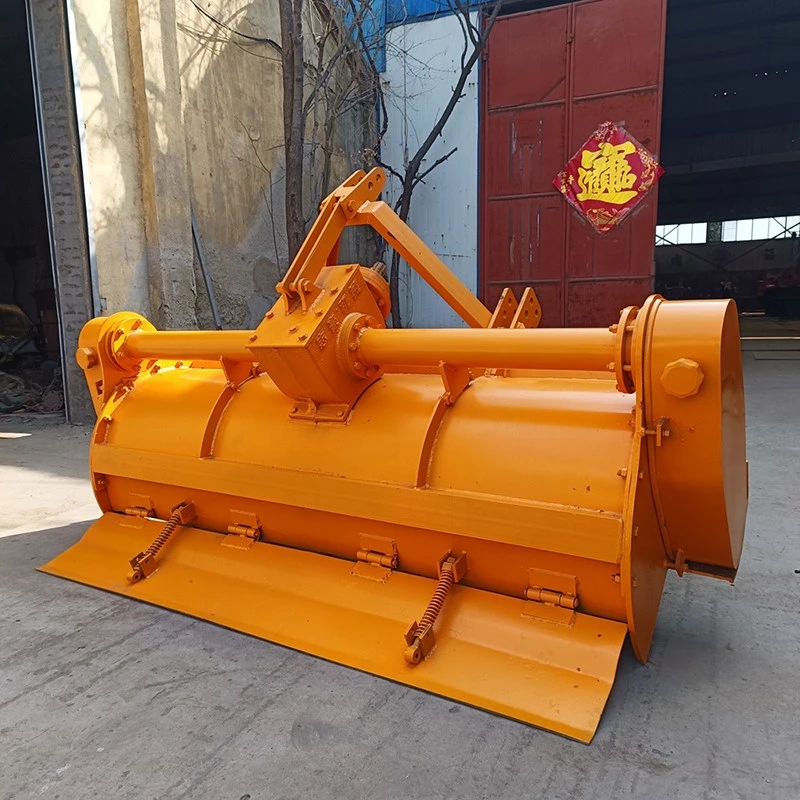

The 1.8-meter box type lime soil mixer is a tractor rear-mounted road construction attachment designed for mixing lime, cement, gravel and raw soil to form stable subgrade layers. It is recognized as a reliable box-type soil stabilizer mixer for rural highway reconstruction and low-grade municipal road paving projects. Also named box-type stabilized soil mixer, this heavy-duty mixing unit blends raw soil with solid curing agents evenly in one pass, eliminating manual layered mixing and cutting construction cycles. As a professional rural road mixer, it fits small and medium tractors widely used in countryside infrastructure. Classified as a functional subgrade soil mixer and road base mixer, it counts as core engineering road mixing equipment for subgrade reinforcement, and acts as a dedicated subgrade soil stabilizer to guarantee uniform compaction performance of road foundation layers. Its 1.8m full working width delivers high linear efficiency for continuous road base construction.
Complete Technical Parameter Table
|
Specification Item |
1.8-Meter Box Type Lime Soil Mixer |
|
Model No. |
1800 Type |
|
Effective Working Width |
1.8 m |
|
Overall Outer Dimension |
215012001300 mm |
|
Whole Machine Net Weight |
880 kg |
|
Mixing Drum Diameter |
245 mm |
|
Drive Chain Standard |
24A-2 / 20A-3 heavy-duty drive chain |
|
Standard Operation Depth |
Loose mixing depth 30 cm over two passes; compacted finished depth 16–17 cm |
|
Standard Blade Assembly |
Combination of blade plate, tool holder and bullet-shaped wear-resistant cutting tips |
Material & Structural Construction

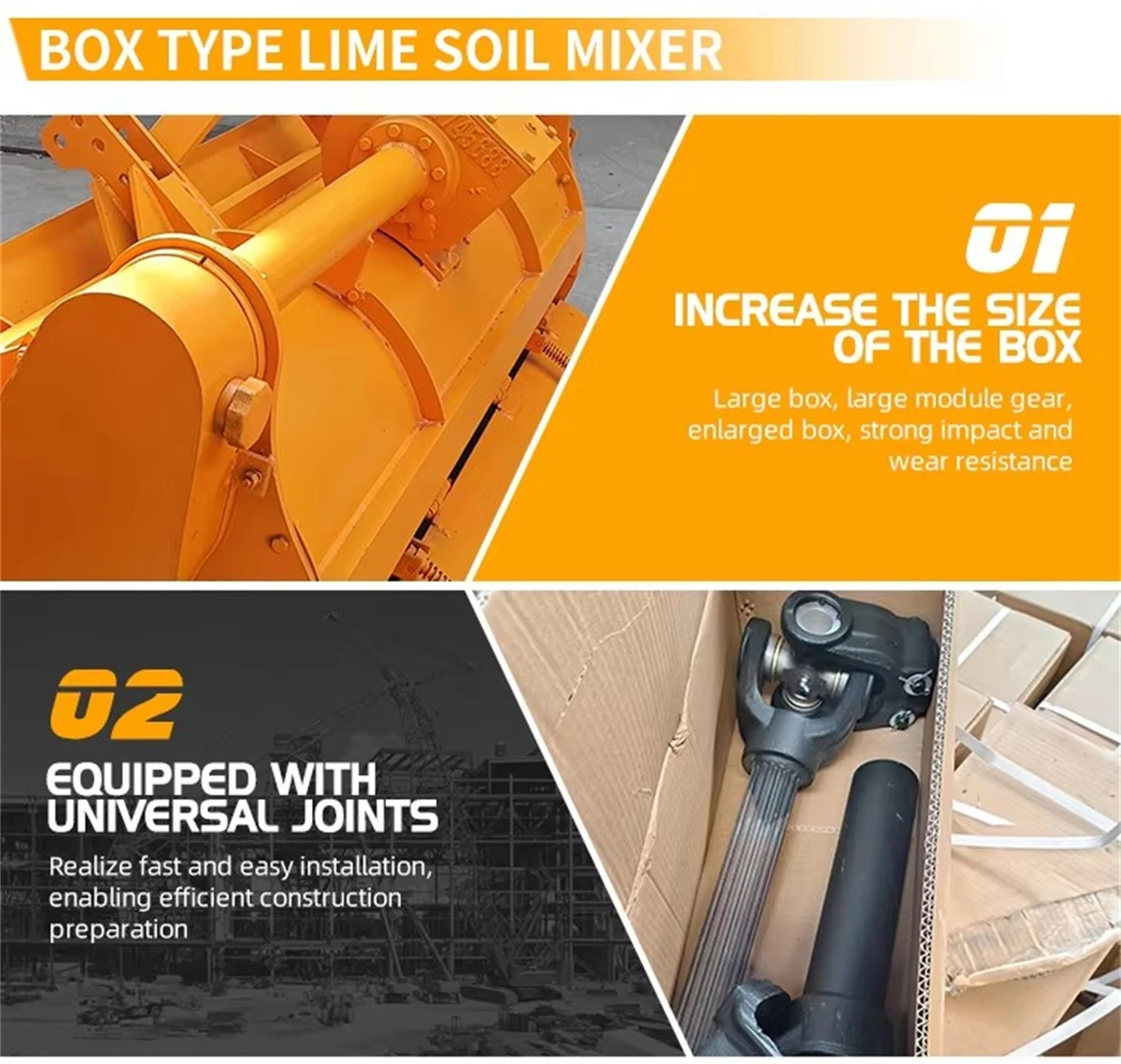

Thickened Sealed Box Body: Main mixing cabinet adopts thick Q345 manganese steel plate, processed by laser cutting and full penetration welding to resist impact from stone and soil mixture, avoiding deformation under long-hour heavy mixing loads.

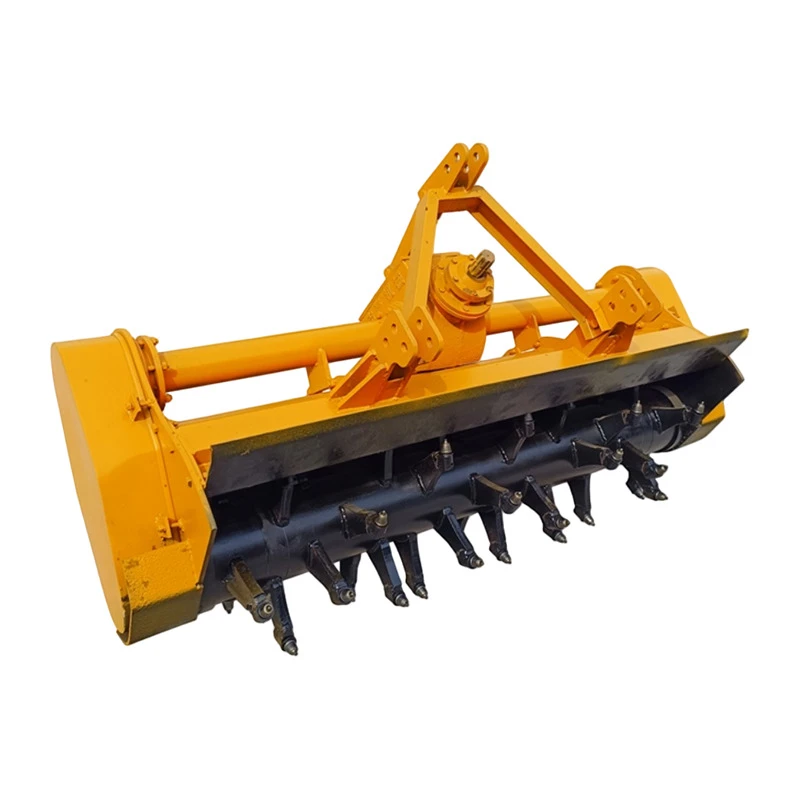

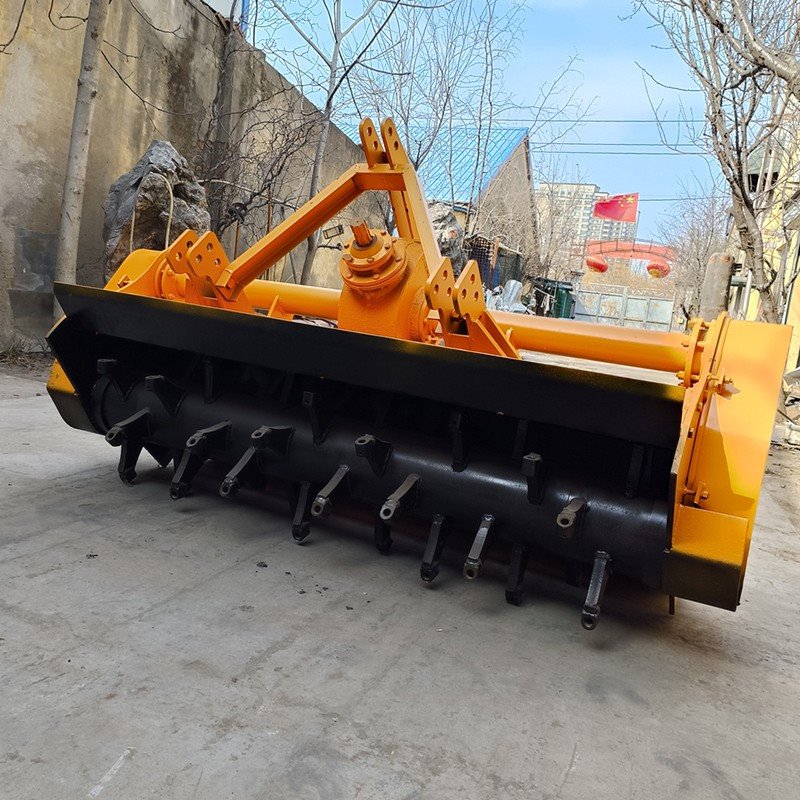

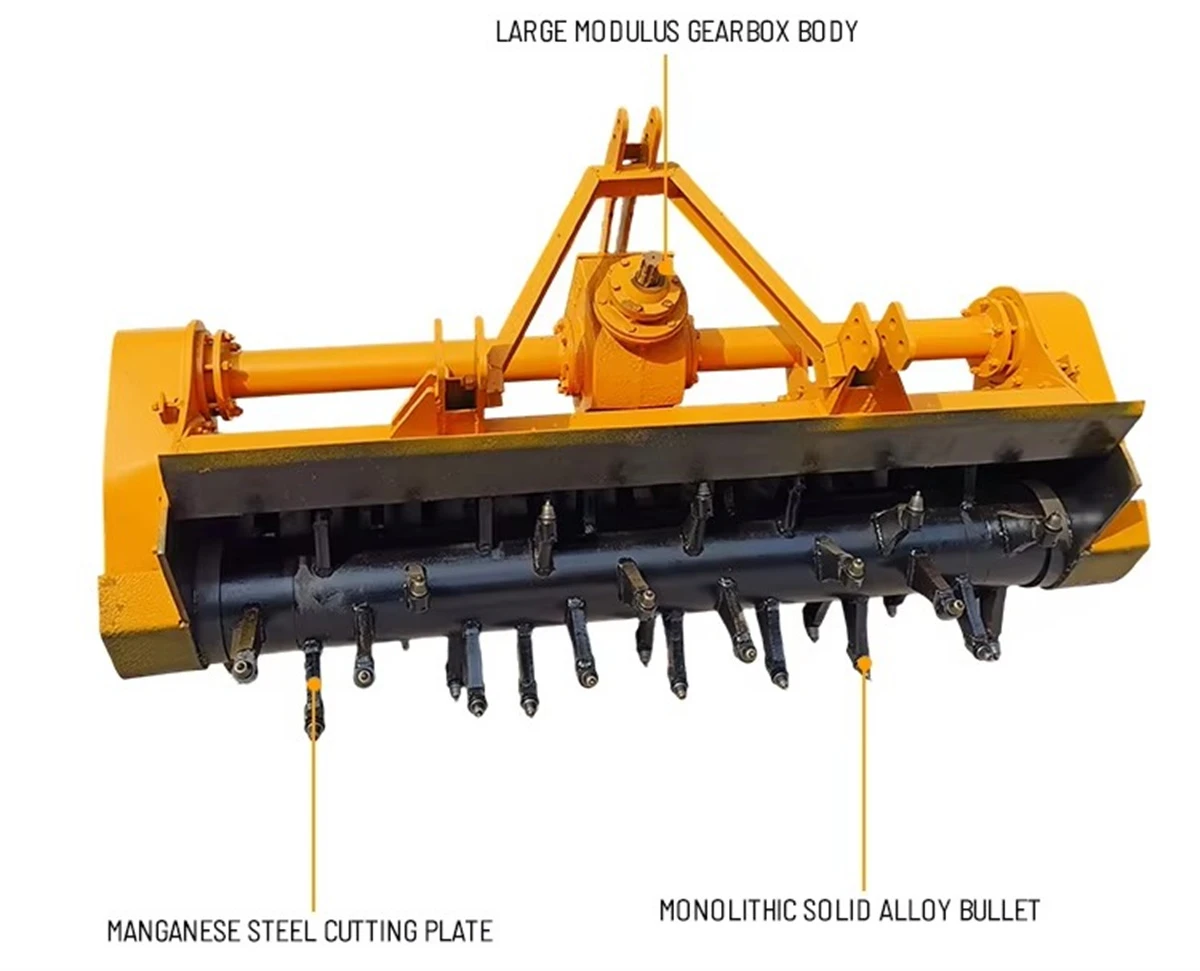

Heavy-Duty Mixing Drum & Blades: 245mm diameter solid mixing roller matched with integrated bullet alloy blades; each blade is individually bolt-mounted for separate replacement, lowering long-term maintenance expense.

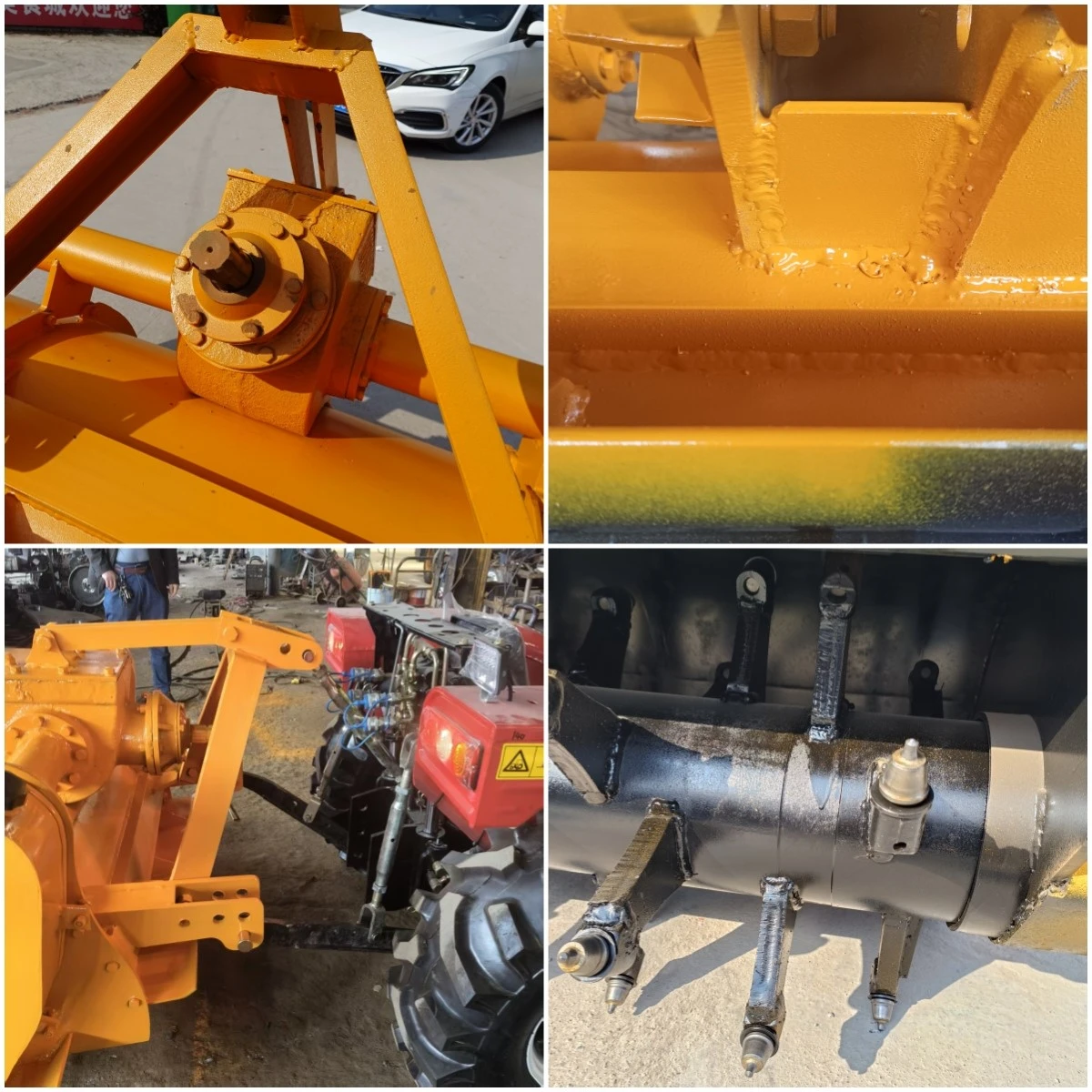

Reinforced Drive Gearbox & Chain: Central cast steel gearbox transfers stable power, paired with thickened heavy-duty drive chains that resist stretching under high-torque mixing work.

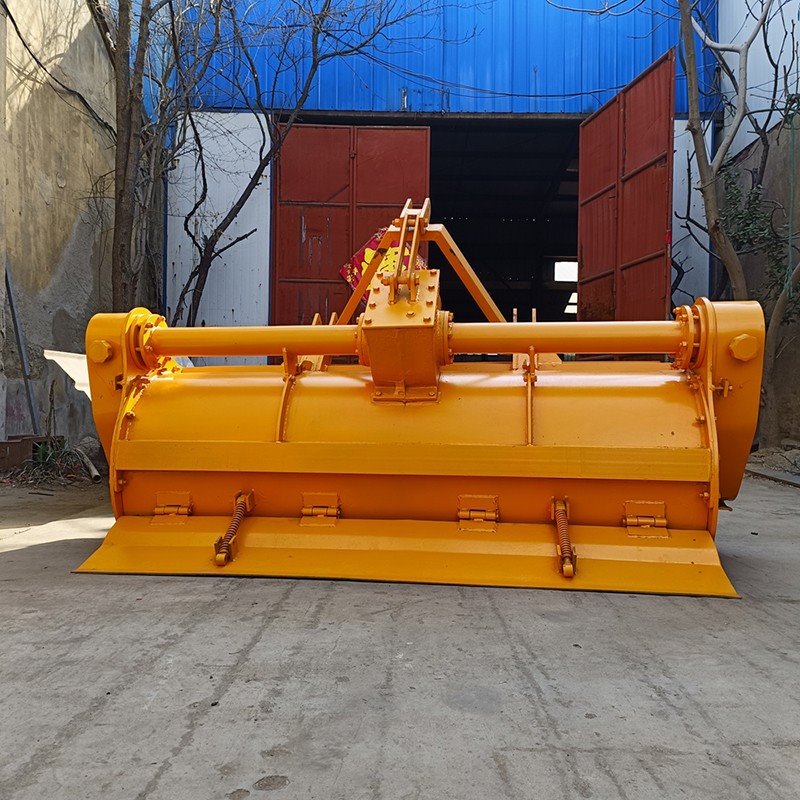

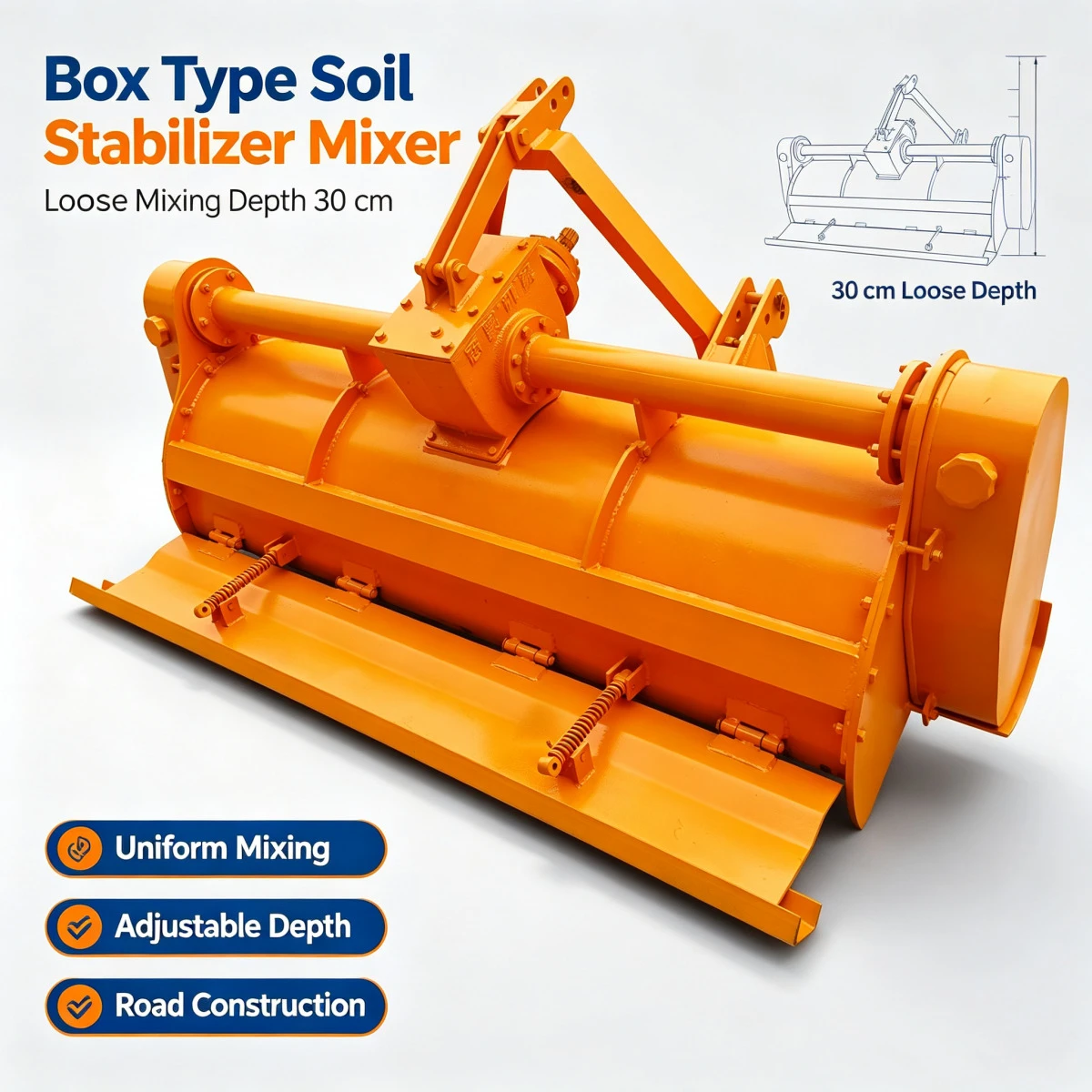

Spring Adjustable Scraper Board: Front floating scraper plate with buffer springs automatically fits uneven ground, preventing material leakage during mixing and ensuring consistent subgrade mixing thickness.
Standard Three-Point Suspension Bracket: Thick triangular welded hanger fits most common medium and large tractors for quick mounting and disassembly.
Comprehensive After-Sales Support for Global Buyers
1.12-month factory warranty covers core gearbox, mixing drum and drive chain assembly under standard construction operating conditions.
2.Professional multilingual technical team offers 24/7 online video guidance for tractor matching, installation, operation and routine maintenance.
3.Fast global spare parts supply chain: alloy bullet blades, drive chains and gearbox seals can be delivered within 7 working days after bulk order confirmation.
4.Customized size modification service: We produce 1.4m, 1.6m, 2.0m width models to match different road width requirements, supplying free technical drawings for full-container wholesale clients.
Practical Common Fault Solutions
1.Box-type stabilized soil mixer mixing drum stalls when mixing soil-lime mixture Solution: Stop tractor power supply, clear large stones and compacted soil stuck between mixing blades; inspect drive chain tension and tighten loose adjusters; replenish heavy-duty lubricant into the central gearbox.
2.Uneven mixing depth on undulating road surface Solution: Adjust the tension springs of front floating scraper plate to fit ground fluctuation; check tractor suspension lifting hydraulic cylinder for oil leakage and refill hydraulic fluid timely.
3.Drive chain slips and jumps teeth during continuous mixing Solution: Remove worn chain links and replace with new standard 24A heavy-duty chains; adjust chain tension to eliminate excessive sagging caused by long-hour operation.
4.Alloy bullet blades wear rapidly when mixing gravel-containing subgrade soil Solution: Reduce tractor forward travel speed to avoid overload impact; stock spare blade assemblies for batch replacement, regularly clear stone debris around mixing roller to reduce blade abrasion.
