Product Description

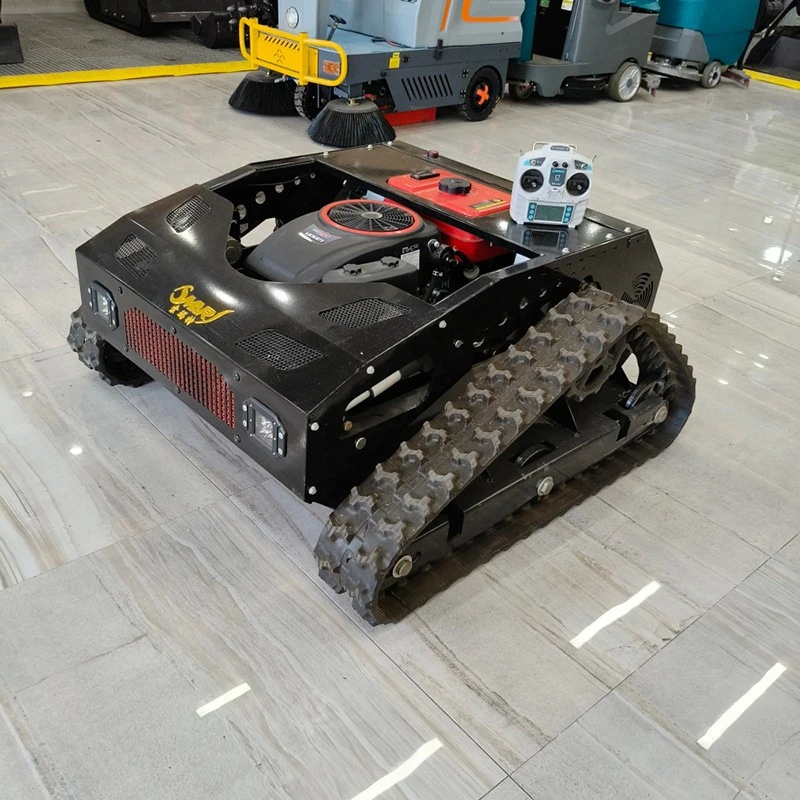

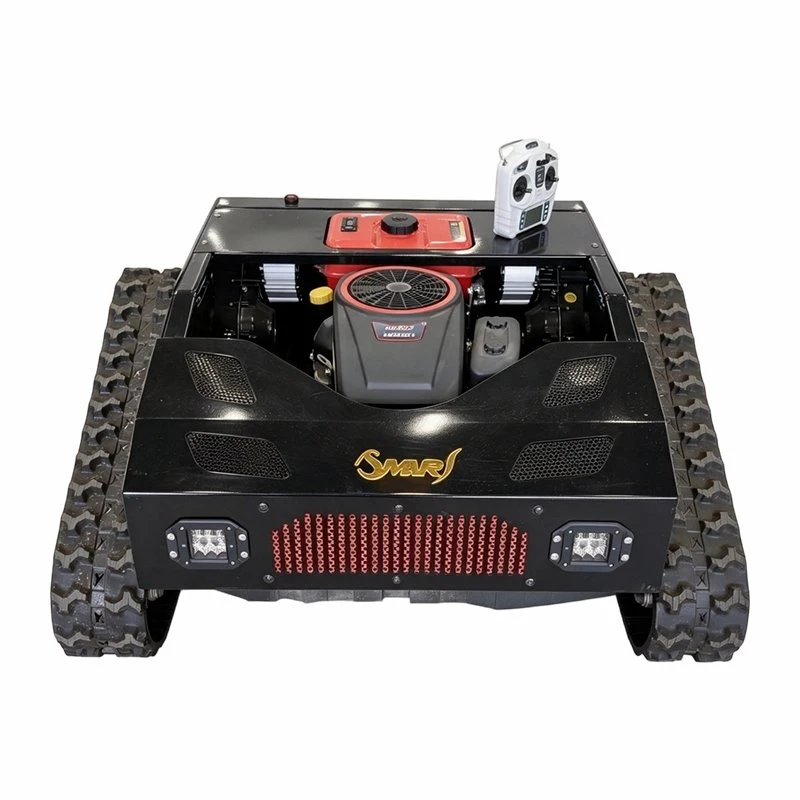

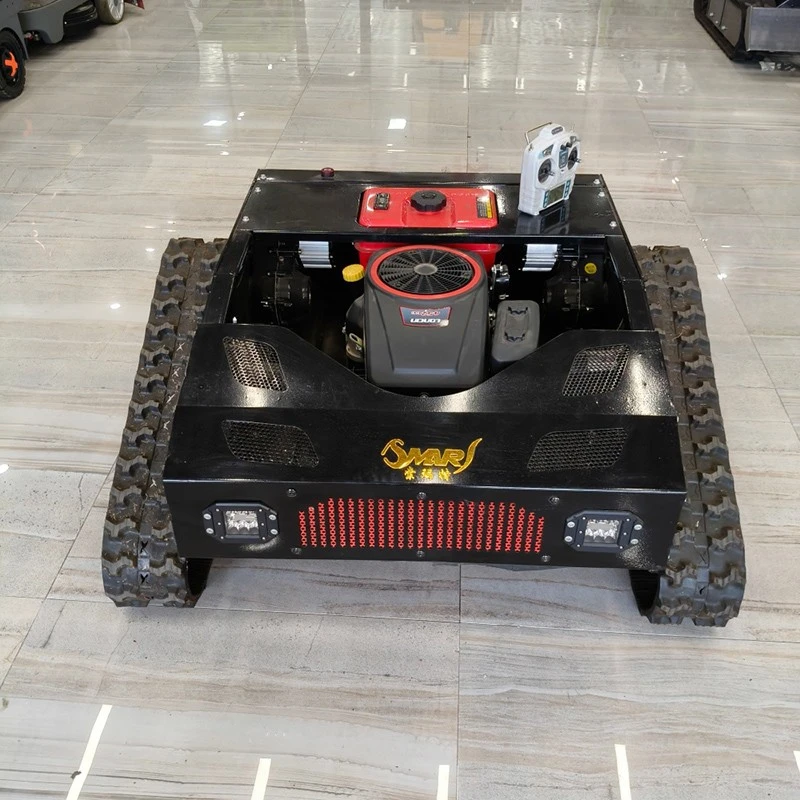

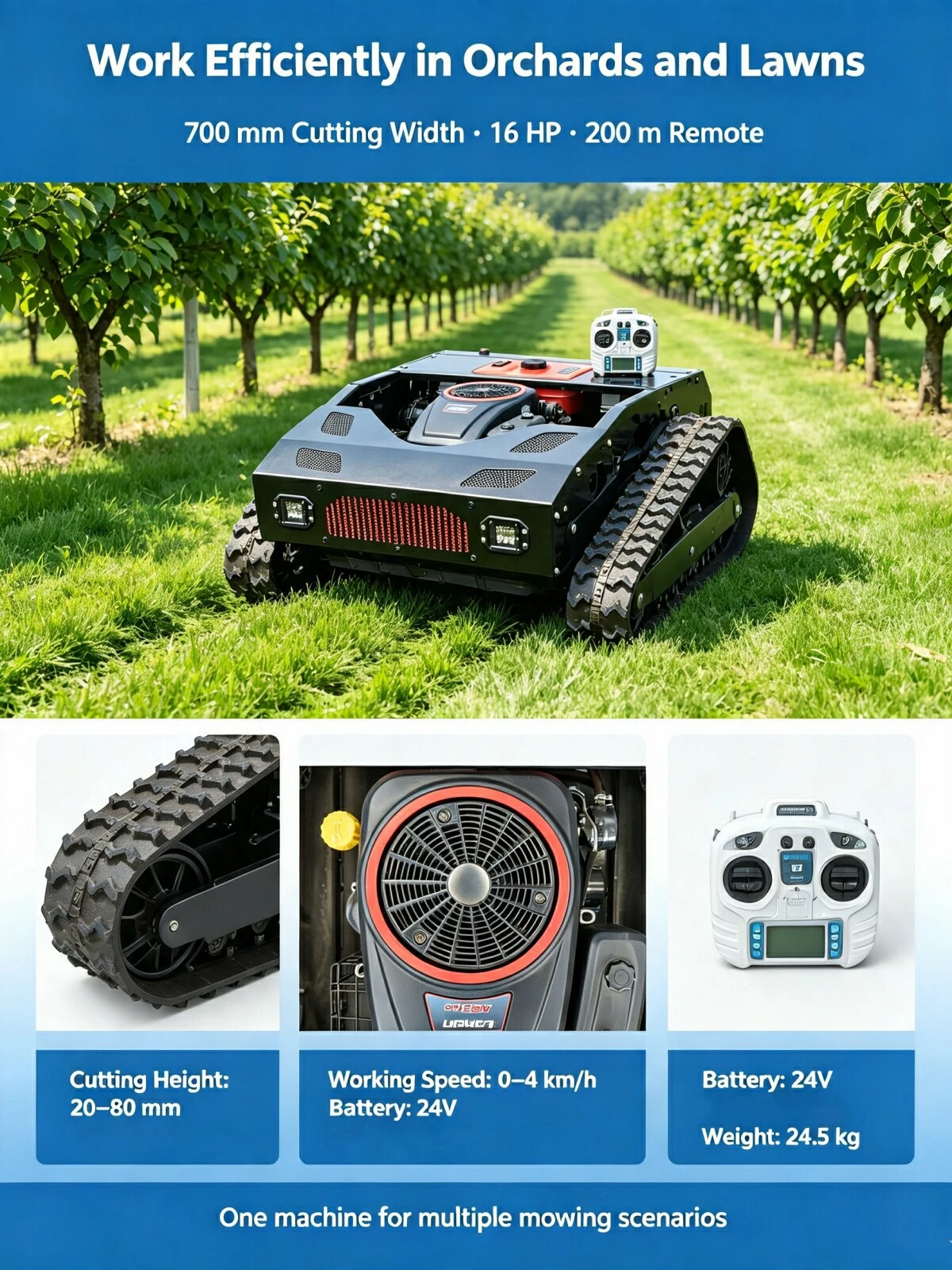

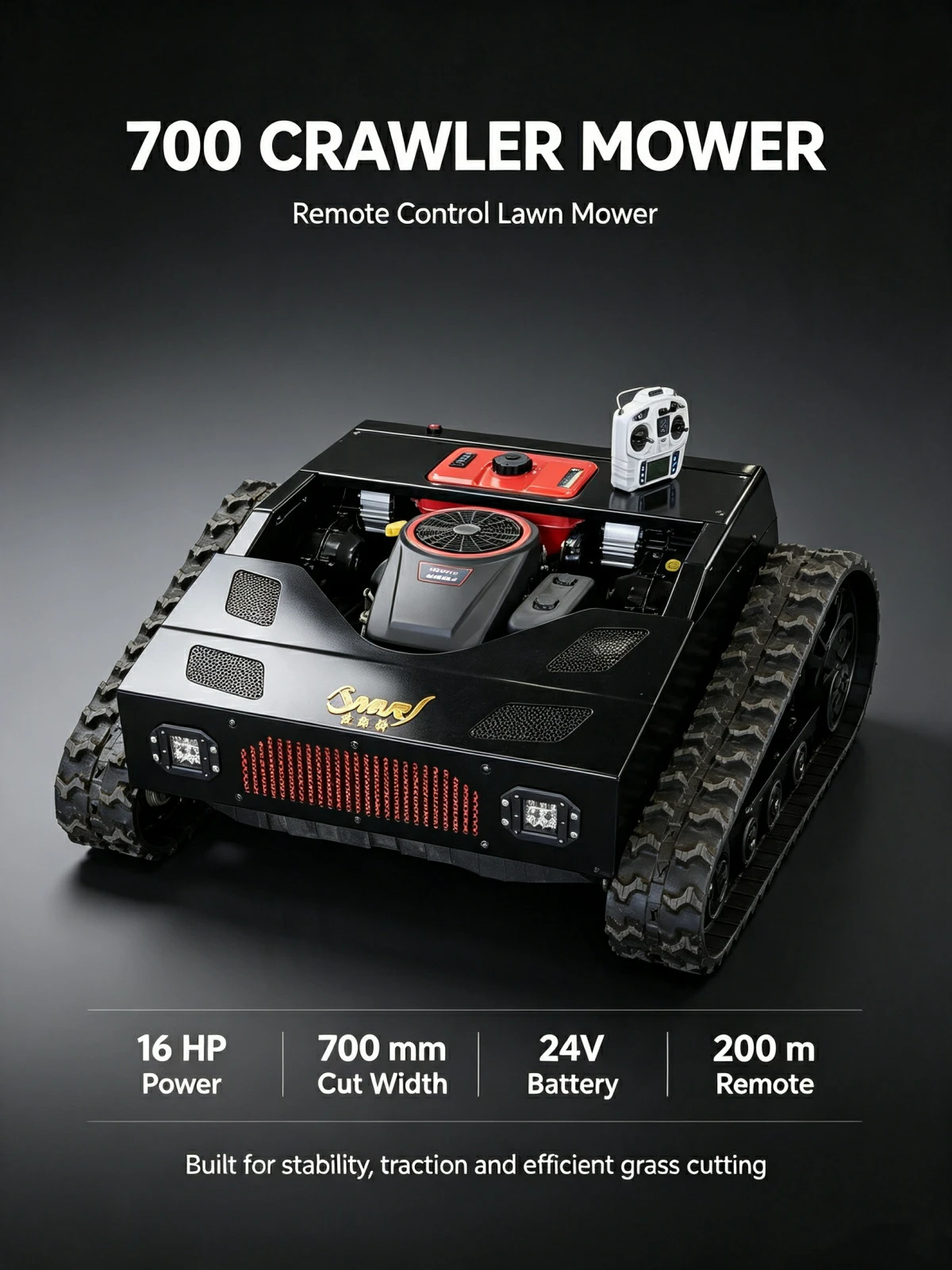

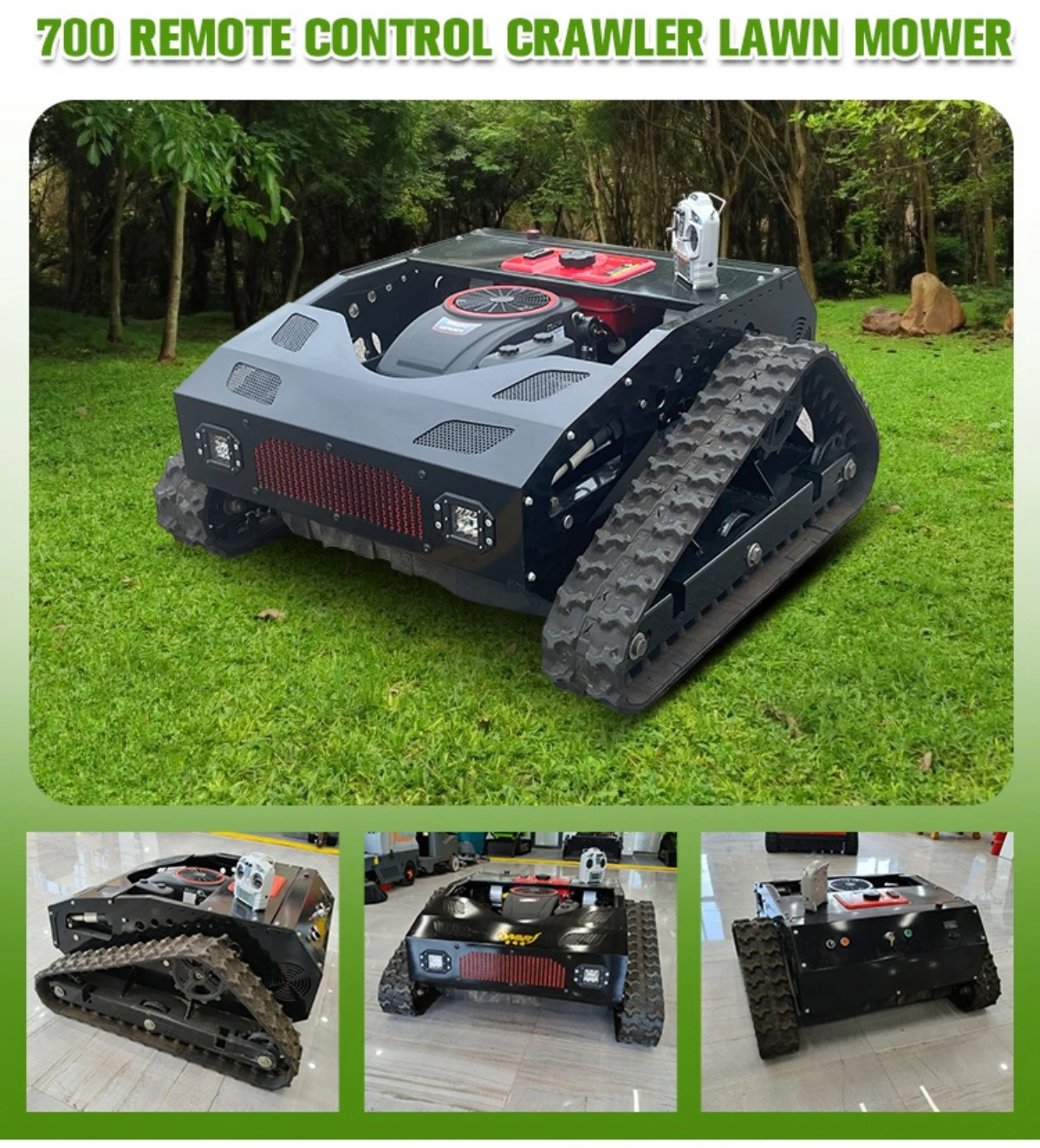

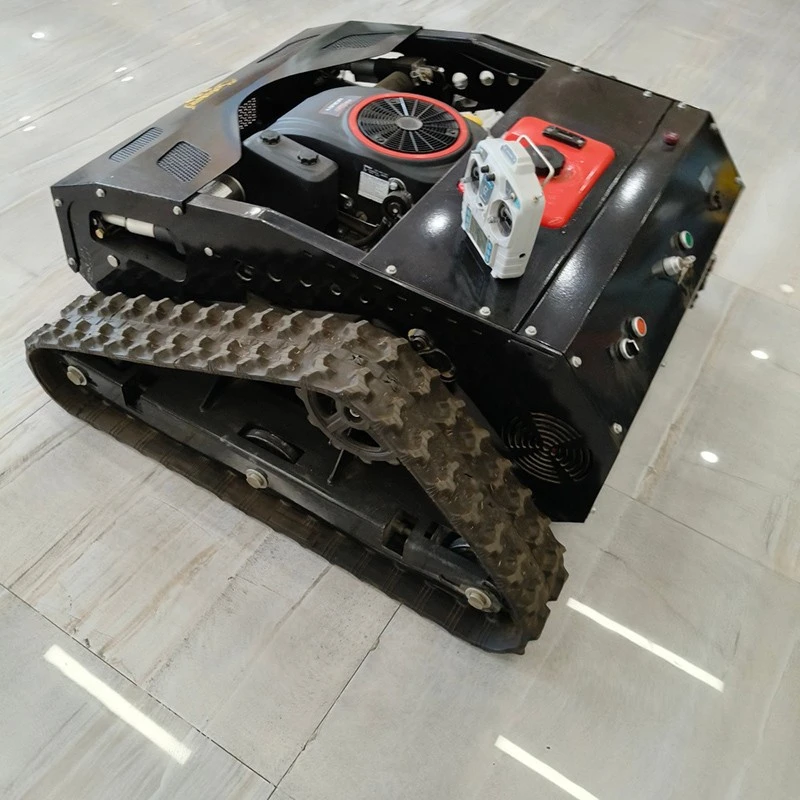

Equipped with oil-electric hybrid power configuration, this tracked lawn maintenance equipment integrates independent driving system and high-power gasoline cutting engine. Operators can control the machine wirelessly, staying away from dangerous slopes and sharp weeds. As an Intelligent crawler mower, it can be used as a steep slope land reclamation machine for wasteland renovation. Marketed as the practical 700 type garden lawn mower, it also serves as a crawler straw crushing and returning machine for farmland treatment and undertakes mountain slope mowing tasks efficiently. The 700 crawler remote mower adopts built-in self-generating unit to realize long-time continuous operation without frequent external charging.
Technical Parameters
|
Item |
Specification |
|
Overall Dimensions |
11001180550 mm |
|
Battery Voltage |
24V |
|
Power Source |
Oil-electric hybrid |
|
Fuel Power |
16 horsepower gasoline engine |
|
Mowing Diameter |
700 mm |
|
Cutting Height |
1–20 cm, electric adjustable |
|
Max Climbing Capacity |
50° |
|
Remote Control Distance |
200 m |
|
Start Mode |
Electric start |
|
Machine Weight |
245 KG |
|
Travel Speed |
0–4 km/h |
|
Drive Power |
1KW*2 Split transmission |
|
Track |
37 engineering rubber track |
|
Built-in Generator |
2500W |
Product Advantages
Wider 700mm cutting width greatly improves daily working coverage and enhances operating efficiency.
Electric adjustable cutting height satisfies diversified requirements of lawn maintenance and weed crushing.

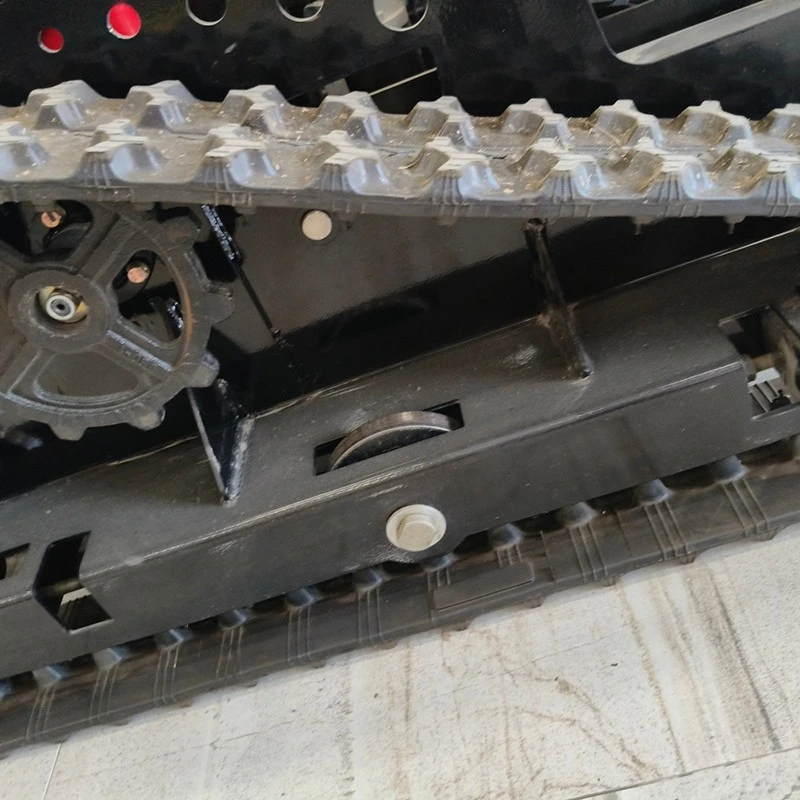

Engineering rubber track provides strong adhesion, enabling stable operation on slopes up to 50 degrees.
Oil-electric hybrid and self-generating design avoids power shortage troubles during long field shifts.
Split transmission structure ensures flexible steering and reliable power output on complicated terrain.
Production Advantages

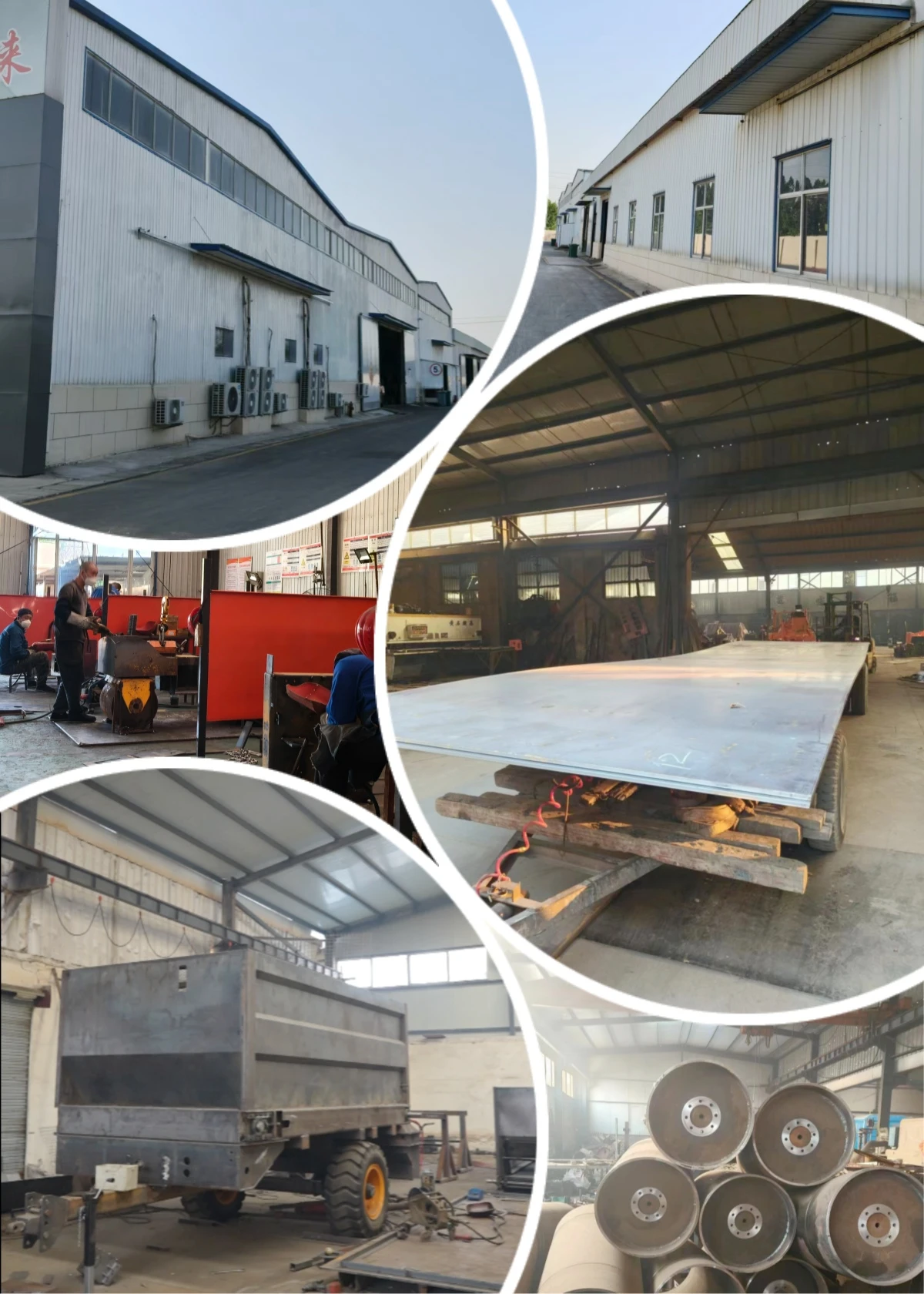

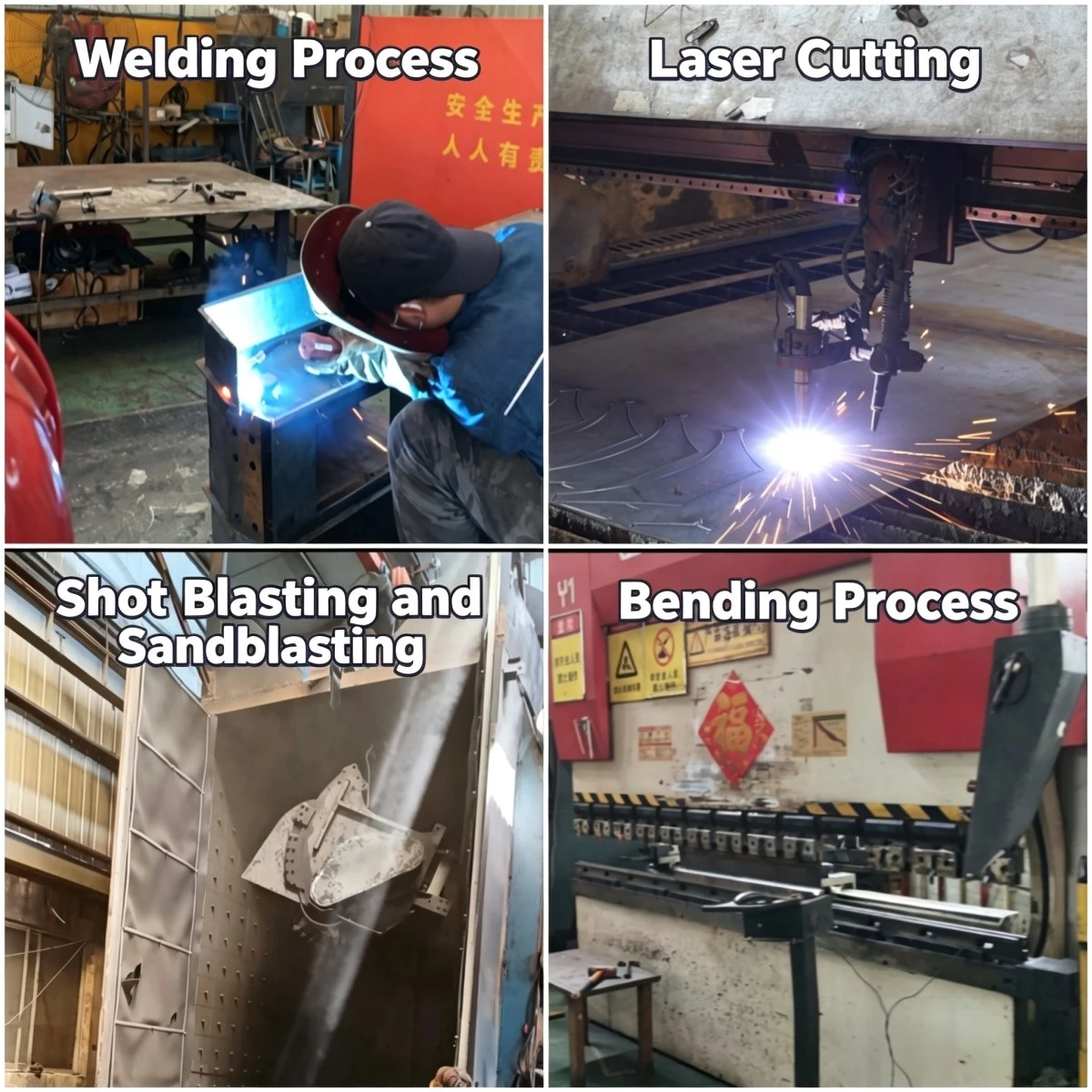

All main frame steel plates are processed by precision laser cutting. Key bearing parts adopt full penetration welding technology to enhance structural rigidity. Cutting blades undergo quenching treatment for improved wear resistance. Each finished 700 crawler remote mower passes continuous running inspection before leaving factory to verify power performance and remote control stability. We can accept reasonable customized adjustments to satisfy different regional operation needs.
Packaging & Transportation
All exposed hydraulic and electrical components are wrapped by waterproof and shockproof film. Loose spare parts, tools and remote controllers are placed inside independent wooden boxes. The whole machine is fixed firmly in containers with tension straps to prevent collision and deformation during long ocean transportation. We support container loading and bulk cargo delivery schemes according to customer demands.
Common Fault Solutions
1.Remote control signal delay: Check controller battery level; keep operating distance within 200 meters without heavy obstacles.
2.Track slipping on slopes: Clean mud and weeds on tracks; adjust track tension to standard tightness.
3.Cutting disc cannot rotate: Check engine operating status; remove weeds wrapped around blades.
4.Unable to adjust cutting height: Inspect electric lifting actuator and check wiring connector looseness.
5.Engine hard to start: Check gasoline quality; clean air filter and check spark plug carbon deposit.
6.Generator fails to charge: Inspect connection line; check whether the generator load exceeds rated range.
7.Machine deviates while travelling: Adjust speed parameters of left and right driving motors.
8.Abnormal noise during travel: Check foreign objects stuck inside track assembly; lubricate driving bearings.
9.Weak climbing power: Avoid overloading; clean track surface to guarantee friction.
10.Automatic shutdown during operation: Check heat dissipation condition and avoid continuous overload work.
