Product Description

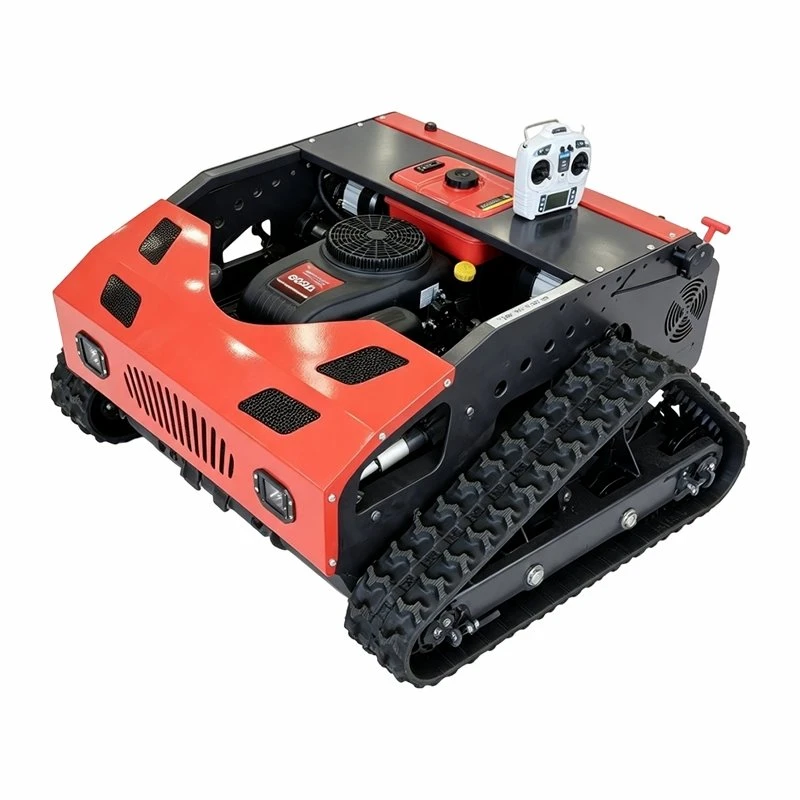

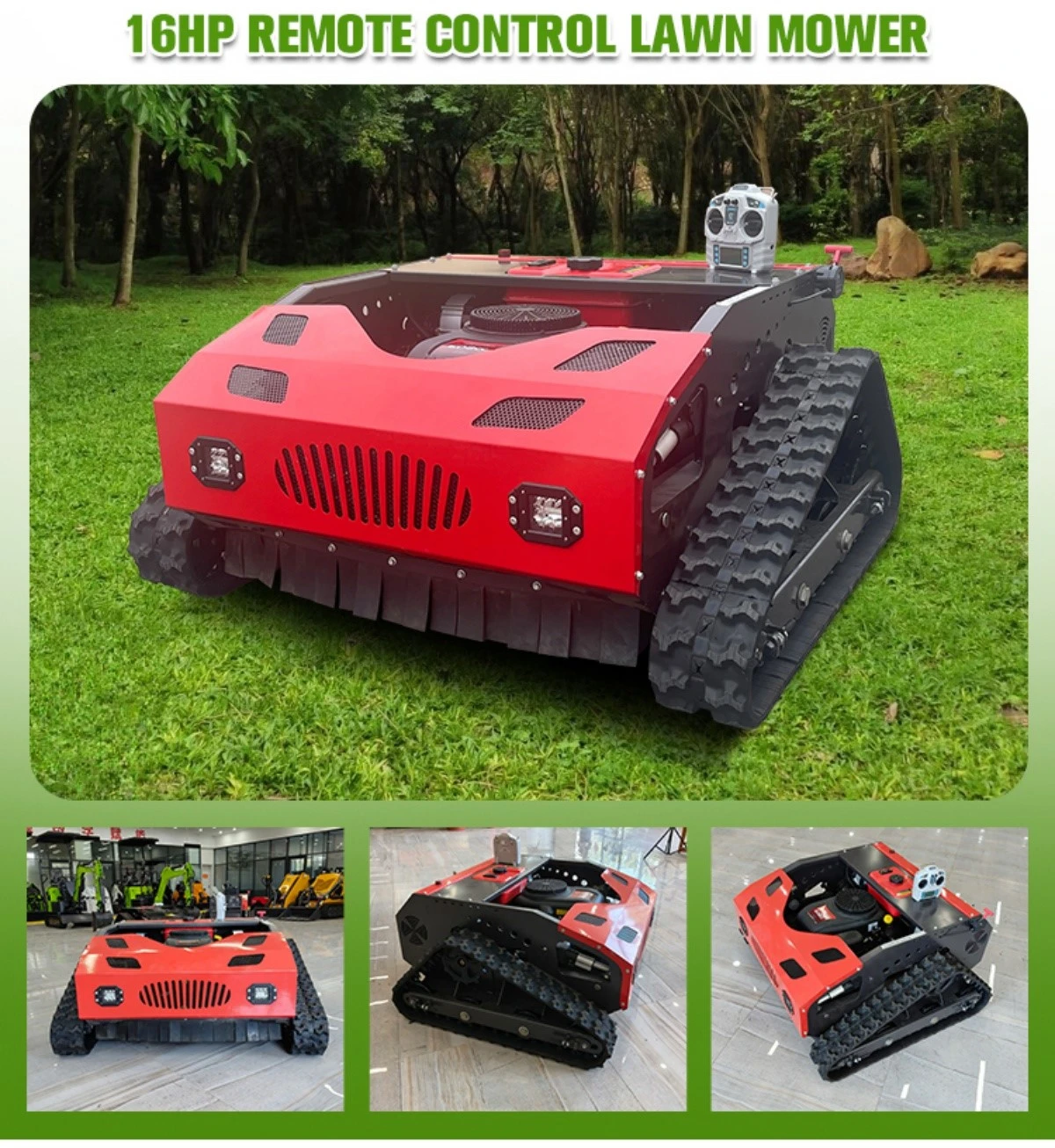

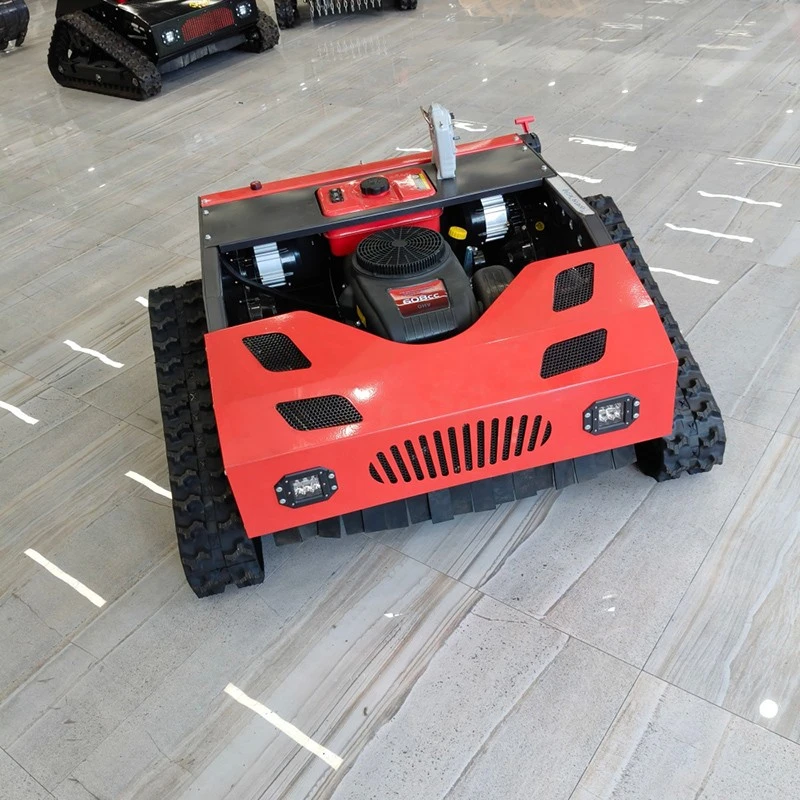

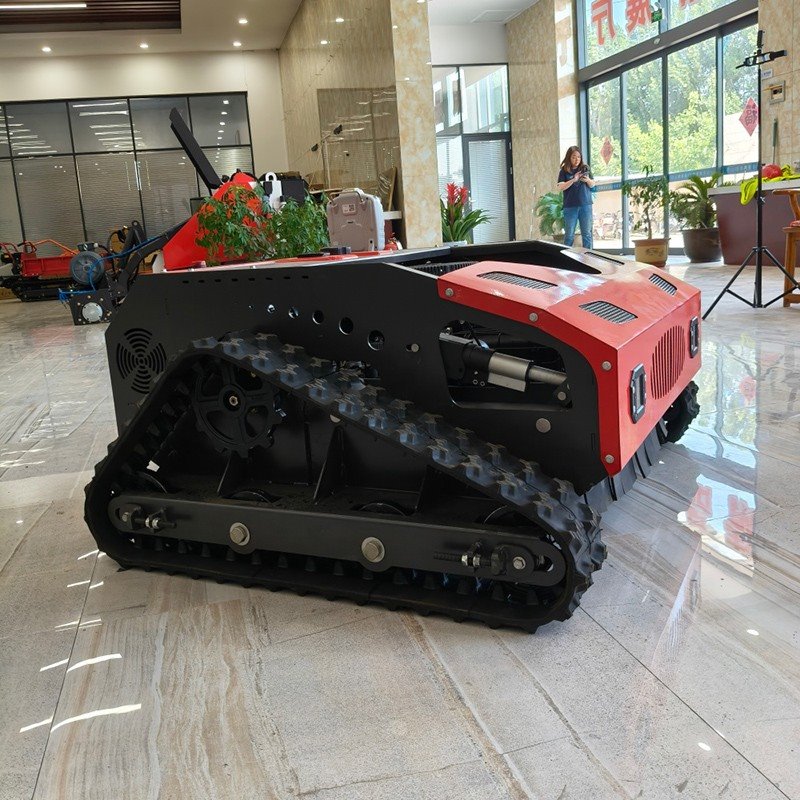

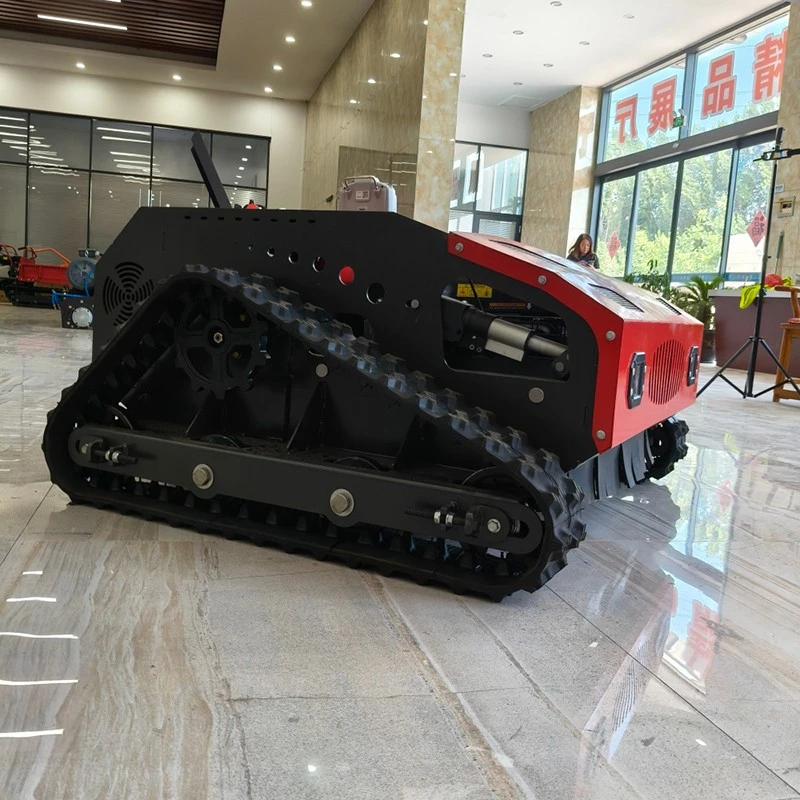

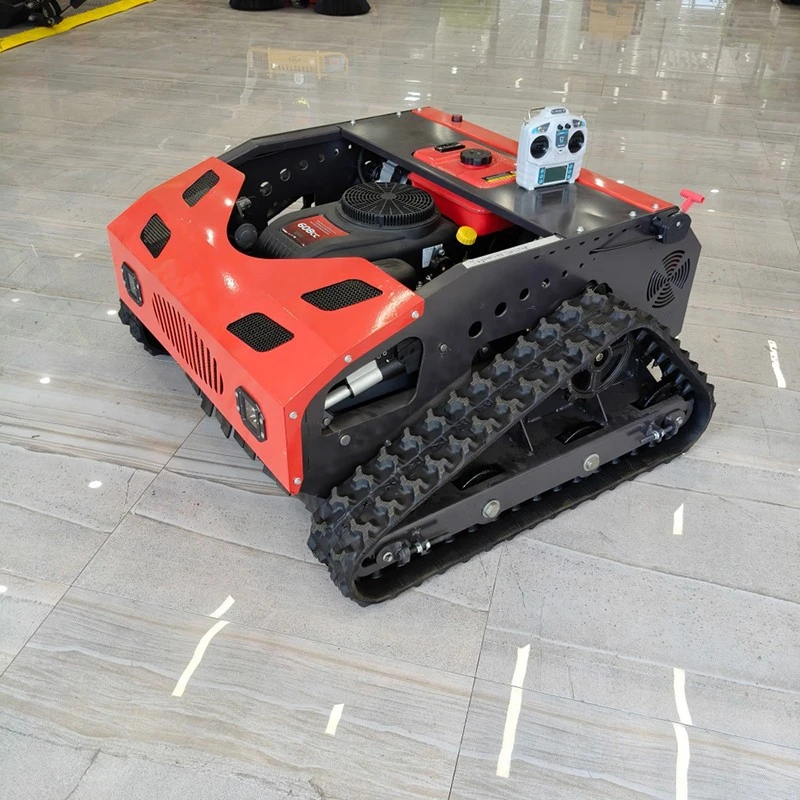

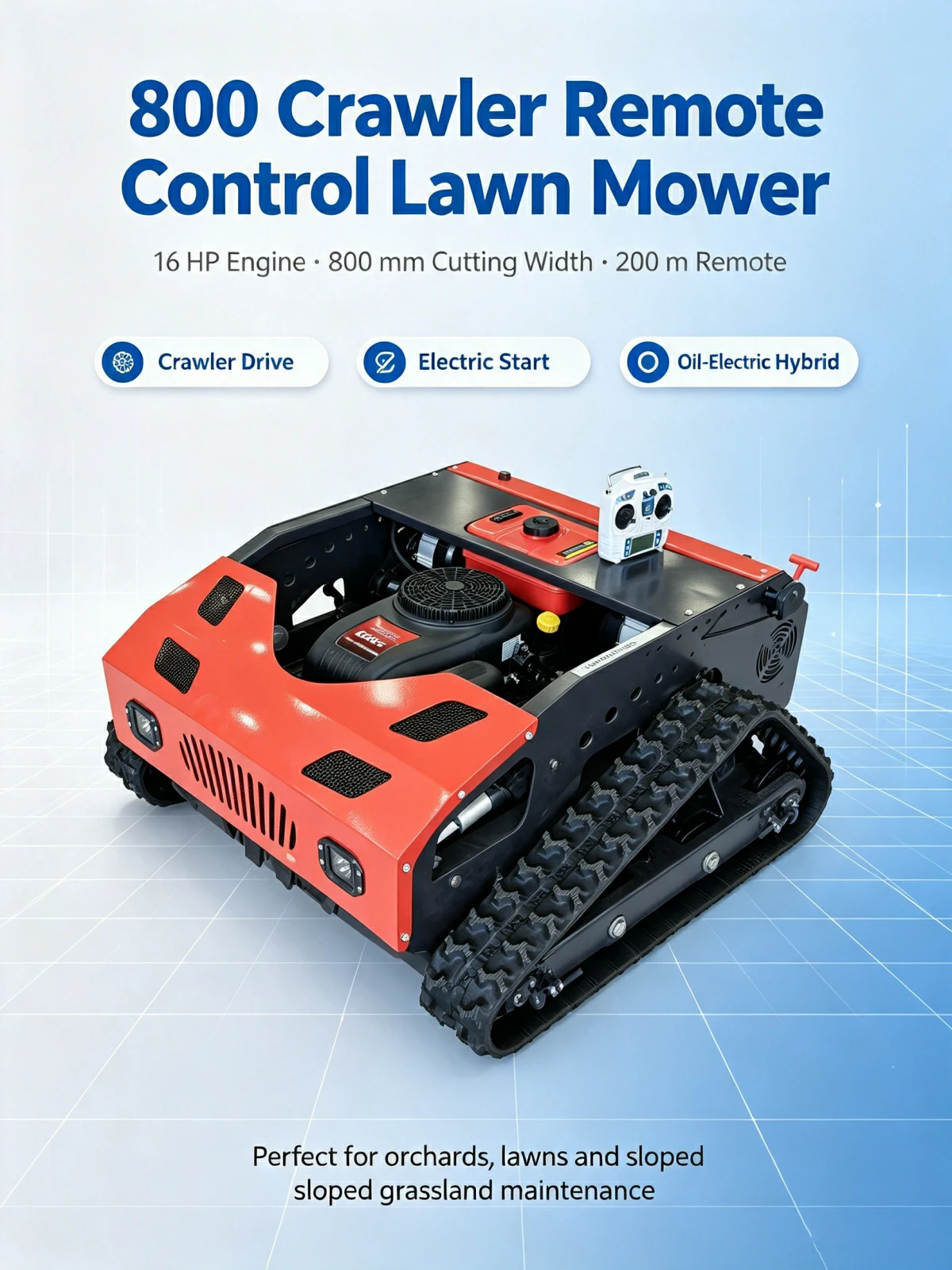

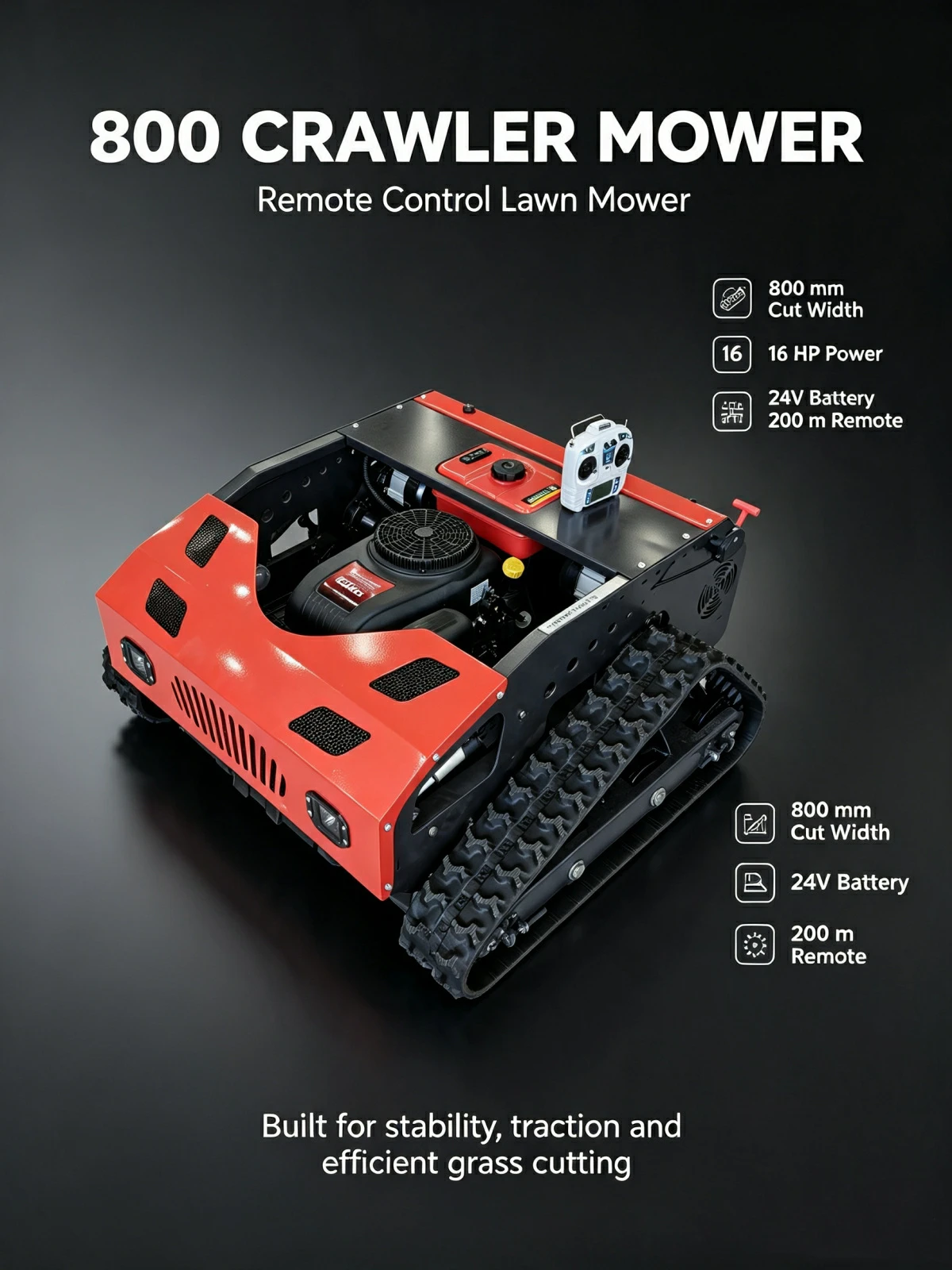

This oil-electric hybrid tracked mowing machine combines independent crawler travel structure and high-power gasoline cutting system. Users can operate the equipment remotely within 200 meters, avoiding safety risks caused by working on steep slopes and thorny terrain. It can work efficiently as a mountain remote control lawn mower for hillside green maintenance, a robust crawler reclamation mower for wasteland renovation. It serves as garden intelligent mowing equipment for landscape trimming and reliable agricultural grass chopper machine to crush weeds and crop residues. The 800 crawler grass crusher adopts built-in self-generating module to realize uninterrupted field operation without frequent external charging.
Technical Parameters
|
Item |
Specification |
|
Overall Dimensions |
11001180550 mm |
|
Battery Voltage |
24V |
|
Power Source |
Oil-electric hybrid |
|
Fuel Power |
16 horsepower gasoline engine |
|
Mowing Diameter |
800 mm |
|
Grass Residual Height |
1–20 cm, electric adjustable |
|
Max Climbing Capacity |
50° |
|
Remote Control Distance |
200 m |
|
Start Mode |
Electric start |
|
Machine Weight |
245 KG |
|
Travel Speed |
0–4 km/h |
|
Drive Configuration |
1KW*2 split transmission gearbox |
|
Track |
37 engineering rubber track |
|
Built-in Generator |
2500W |
Production Advantages

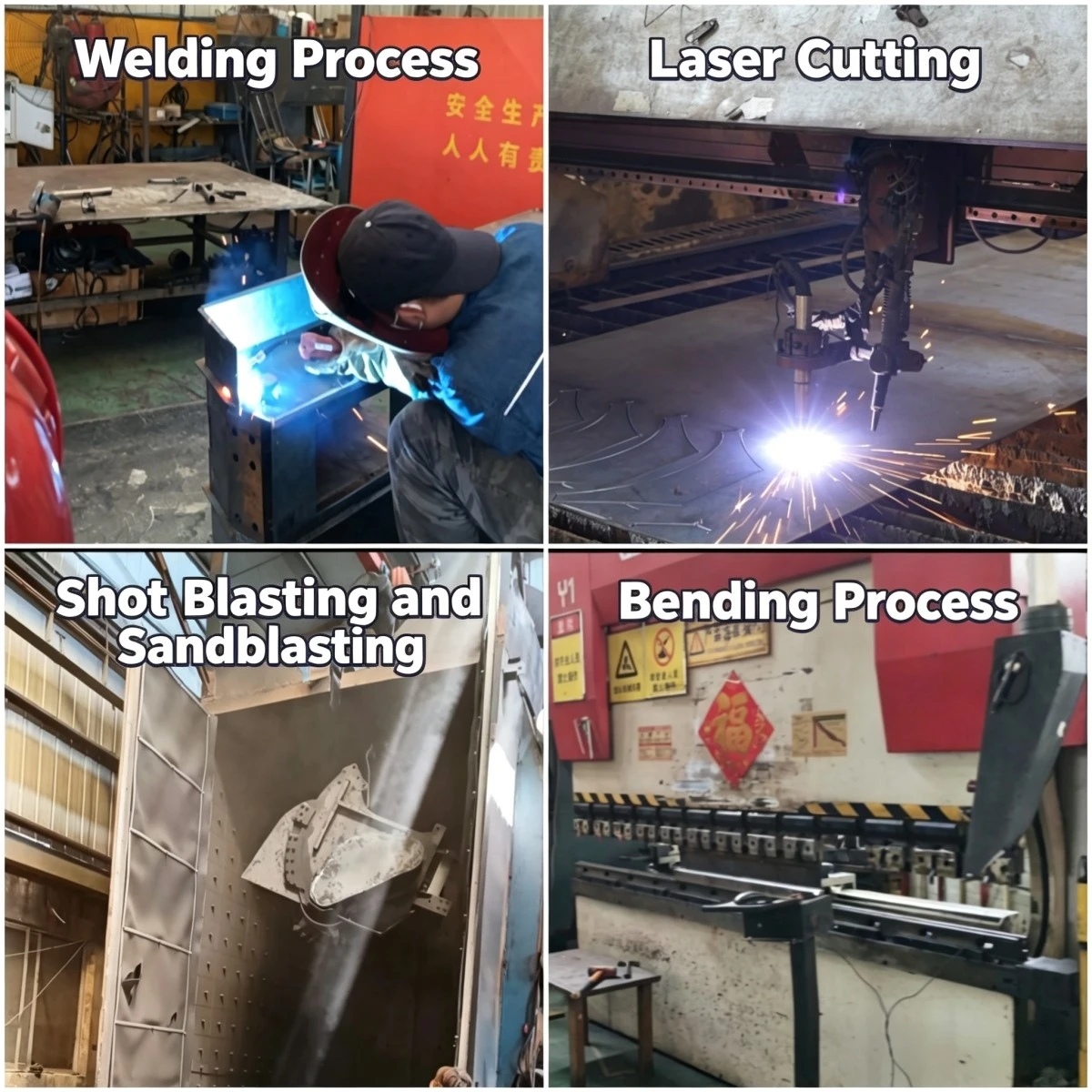

The main frame is fabricated with thickened high-strength steel plate processed by laser cutting. Key welding joints adopt full penetration welding technology to improve anti-torsion performance. Cutting blades undergo quenching treatment to strengthen wear resistance. The sealed electrical cabin prevents dust and moisture erosion in complex field environments. Every finished 800 crawler grass crusher undergoes continuous running test and remote control stability inspection before delivery. Our workshop supports reasonable personalized modification to adapt to various overseas terrain conditions.
After-sales Service
We provide complete English operation manuals and maintenance specifications upon shipment. Professional technical staff offer long-distance online guidance for equipment installation, commissioning and daily maintenance. Consumable spare parts including blades, rubber tracks and engine accessories can be supplied with fast delivery cycle. Our service team actively responds to feedback during peak weeding periods to reduce unexpected machine downtime for global purchasers.
Common Fault Solutions
Cutting disc cannot rotate normally: Stop the machine, clear weeds wrapped around blades, and check whether the transmission belt slips.
Crawler slips severely on slopes: Clean mud and debris on tracks, adjust track tension to the standard range.
Remote control response delay: Replace the remote controller battery; do not exceed the effective 200-meter control distance.
Engine difficult to start: Check gasoline quality, clean air filter and eliminate carbon accumulation on spark plug.
Unable to adjust mowing height: Inspect electric lifting components and check loose wiring connectors.
Abnormal vibration during operation: Check deformed blades and tighten all loose assembly bolts.
Generator cannot charge the battery: Inspect line connection status; avoid long-term overload operation.
Machine deviates when moving forward: Calibrate speed parameters of left and right drive motors to keep balance.
