Product Description

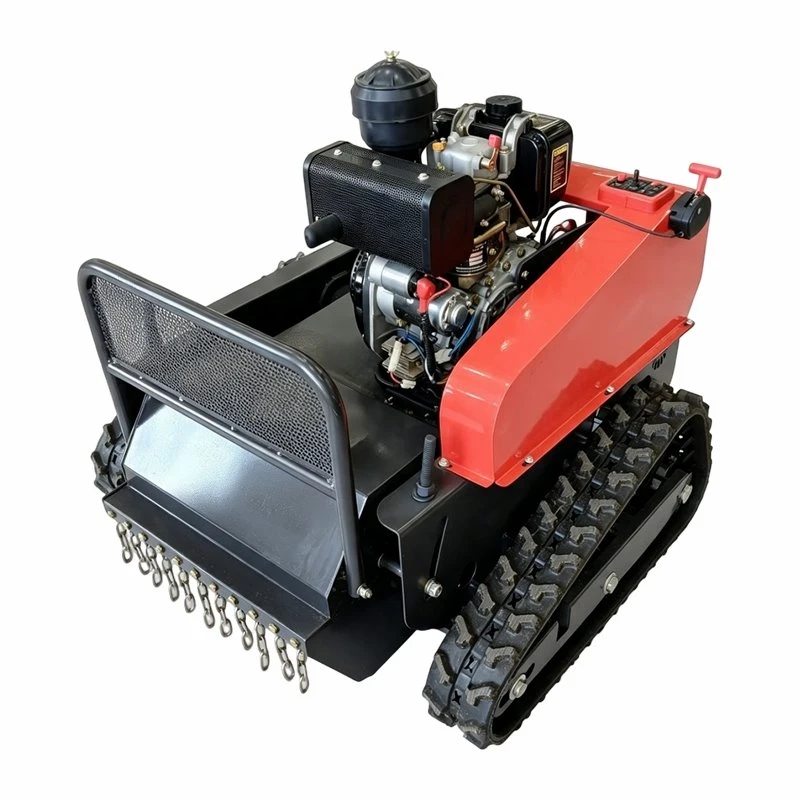

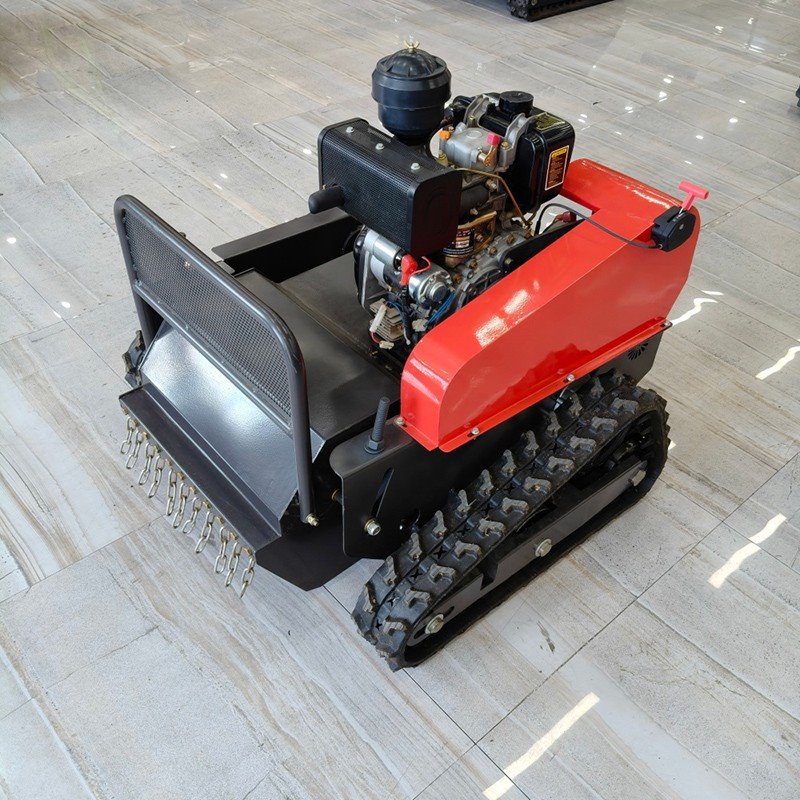

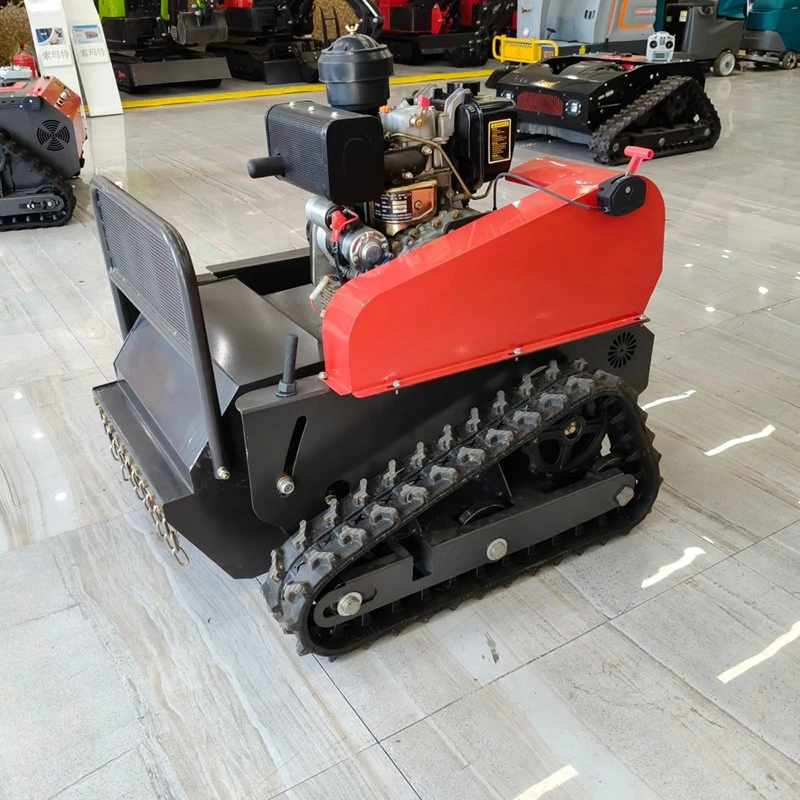

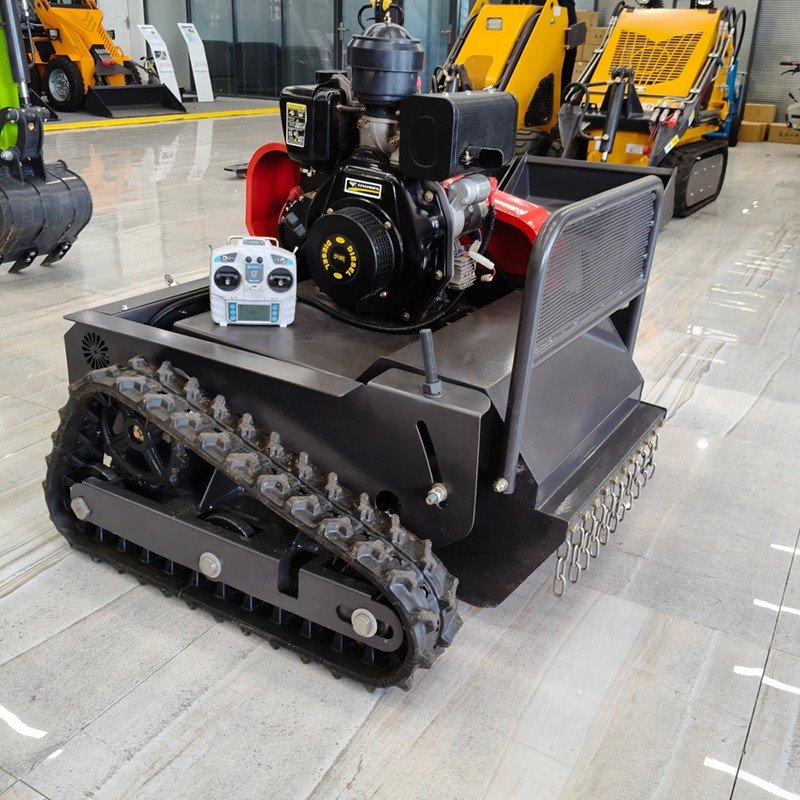

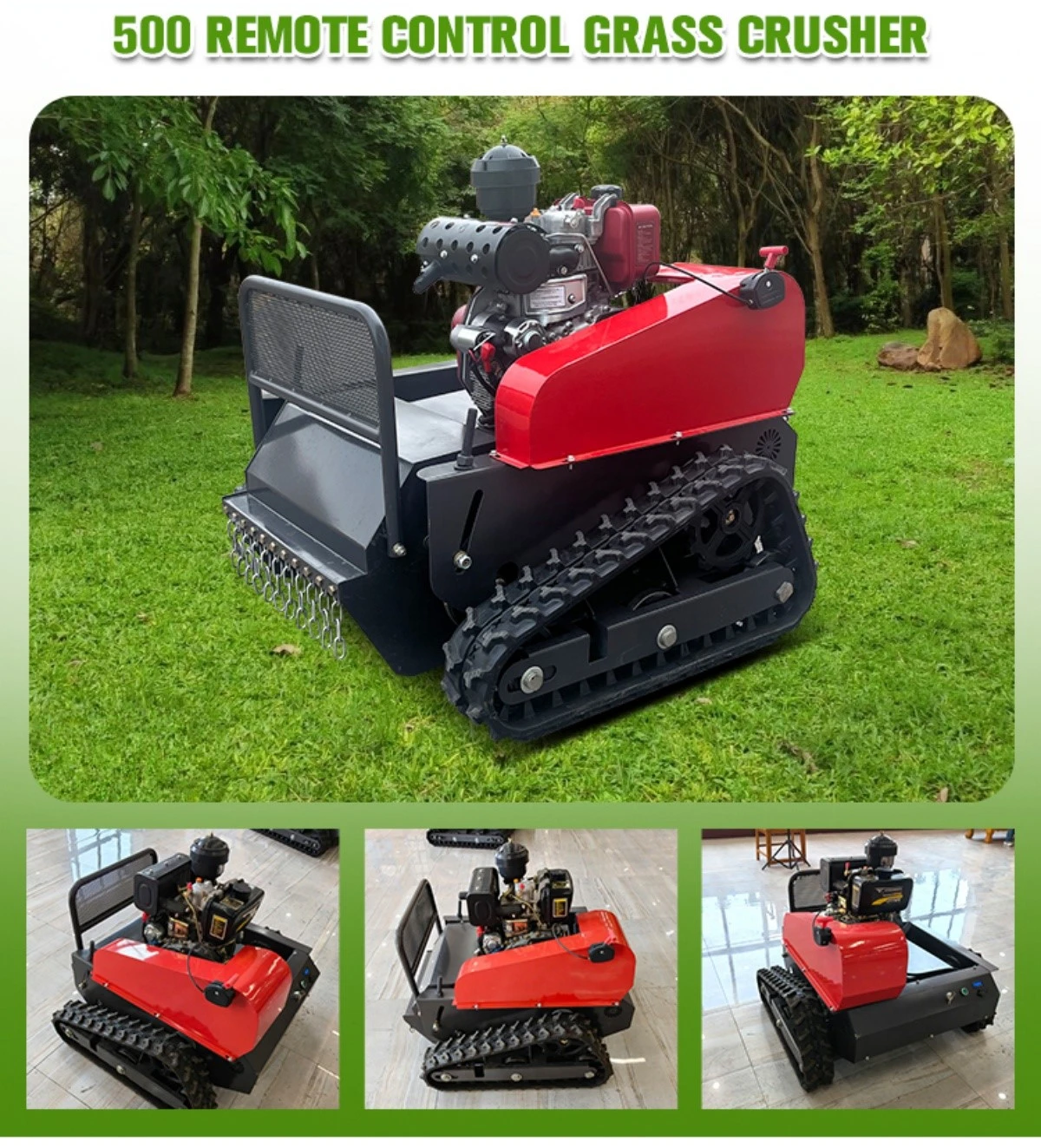

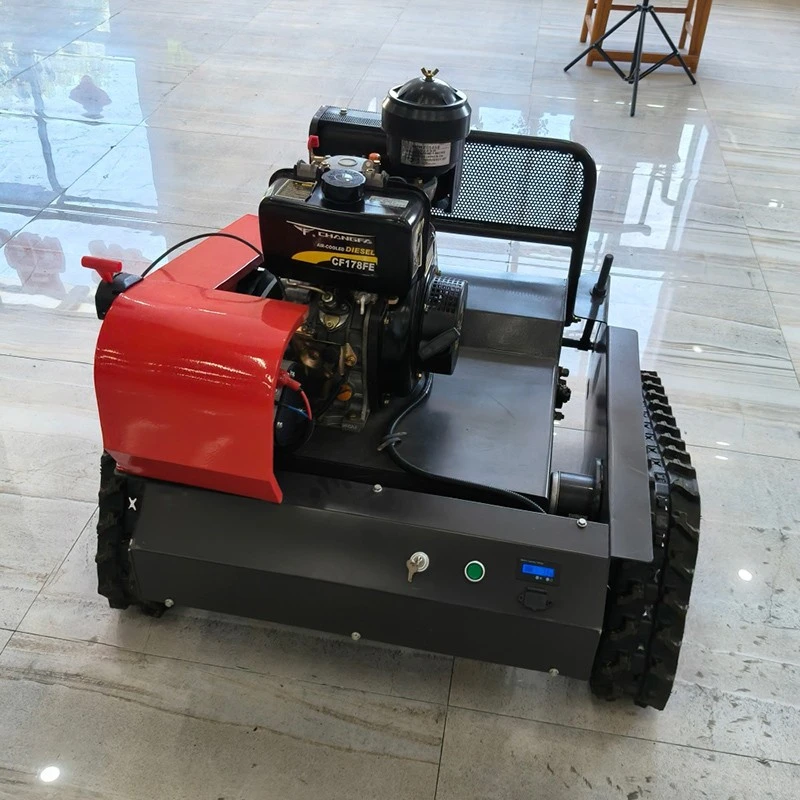

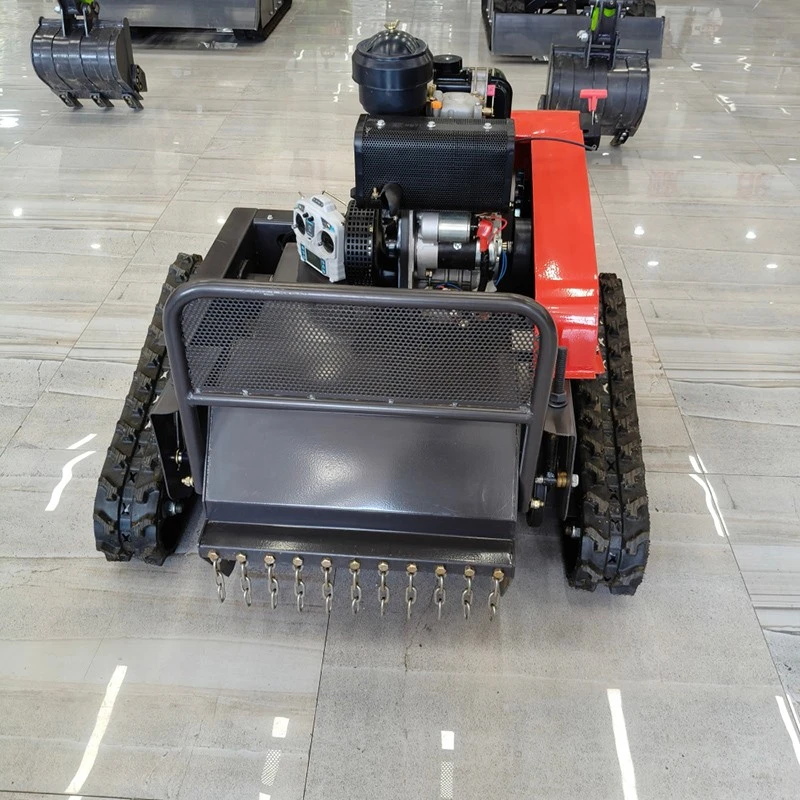

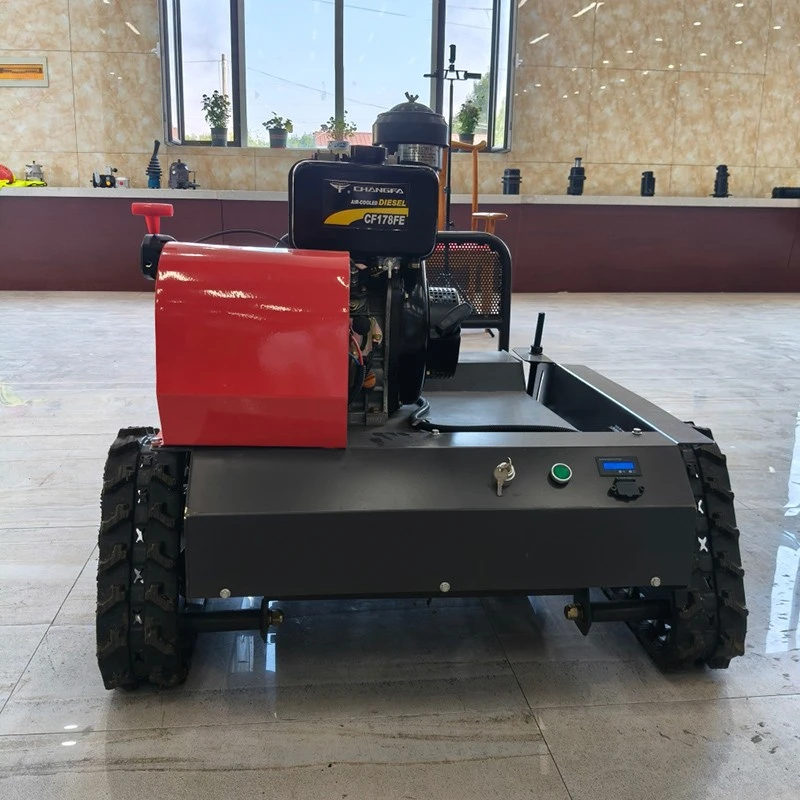

This tracked remote-controlled grass crushing machine adopts oil-electric hybrid power with a reliable 5 HP diesel engine. It is operated wirelessly to complete grass cutting and smashing, keeping operators away from dangerous sloped terrain. Known as the 500 type fully automatic lawn mower, it serves as practical garden weeding equipment and flexible small self-propelled lawn mower. It also works as professional site mowing machinery and compact crawler weeder for scattered plots and narrow working zones. The 500 crawler grass crusher delivers refined crushing results and occupies a small footprint, making it suitable for small orchards, green belts and hilly land maintenance.
Technical Parameters
|
Item |
Specification |
|
Grass Height Retention |
0.3 cm–11 cm |
|
Power Source |
Oil electric hybrid |
|
Engine |
5 HP Changchai 178 diesel engine |
|
Self-generating System |
50A generator |
|
Drive Motor |
350W*2 reduction motor |
|
Chassis |
Engineering rubber track |
|
Built-in Battery |
2 pieces of 12V 12Ah |
|
Start Mode |
Electric start |
|
Max Climbing Angle |
40 degrees |
|
Remote Control Range |
200m, high/low speed adjustable |
|
Travel Speed |
0–4 km/h |
|
Overall Dimension |
10101015850 mm |
|
Blade Quantity |
32 pieces |
Features & Advantages
Compact body design adapts to narrow passages in orchards and garden areas where large mowers cannot pass.
01
Adjustable residual grass height ranges from 0.3cm to 11cm to meet diversified landscaping and farming requirements.
02
Rubber crawler chassis offers strong traction and reduces ground pressure, protecting soil surface from heavy damage.
03
Diesel power brings stable output, and self-generating system supports long continuous operation without frequent charging.
04
Remote control operation avoids direct contact with thorns and steep slopes, effectively improving operator safety.
05
Factory Strength

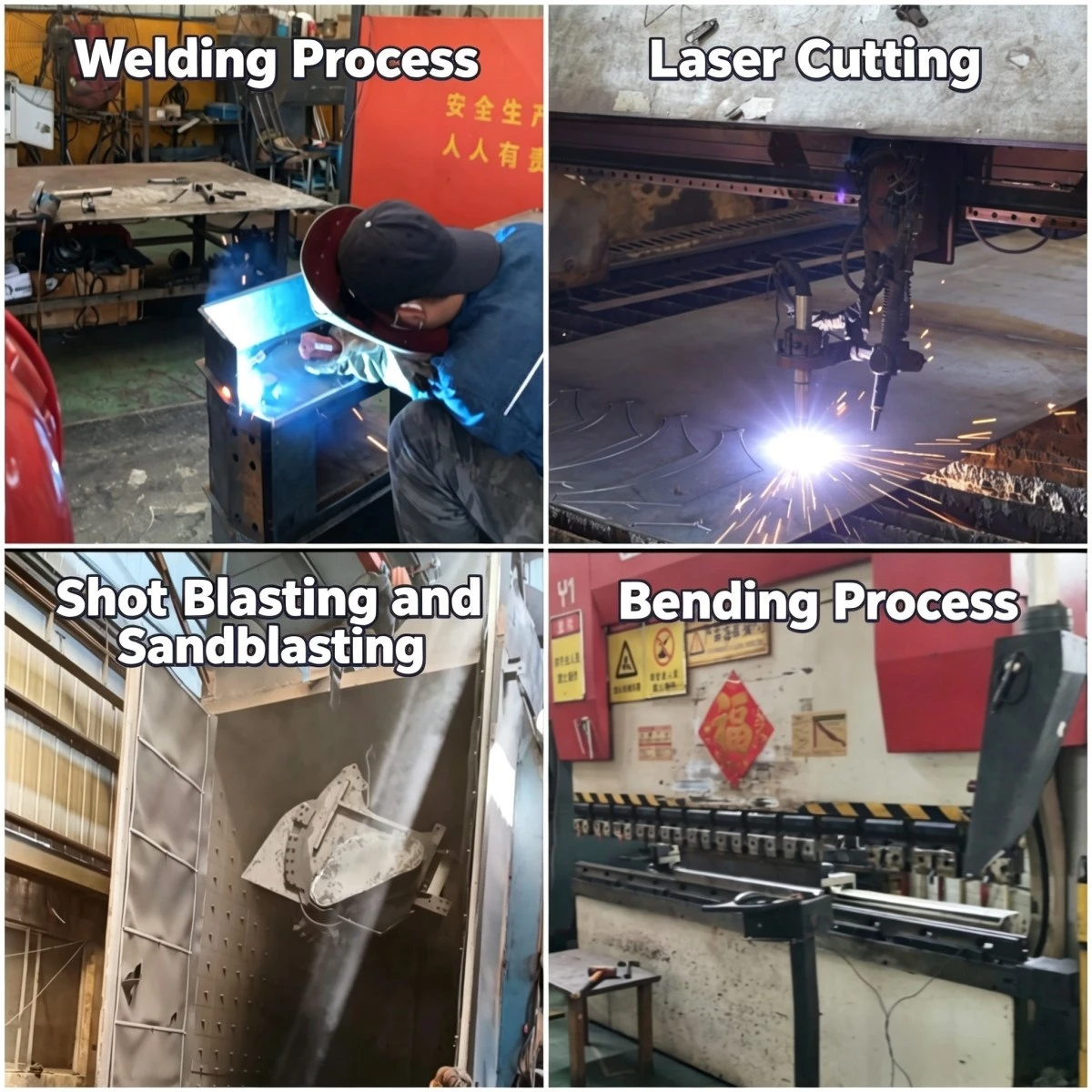

Our factory owns complete production workflows including precision cutting, automatic welding and standardized assembly workshops. All metal frames go through rust removal and anti-corrosion spraying. Each blade receives quenching treatment to enhance wear resistance. Every finished 500 crawler grass crusher undergoes continuous running and remote signal testing before delivery. We accumulate rich experience exporting agricultural machinery and accept reasonable customized adjustments for overseas clients.
Common Fault Solutions
Blades stop rotating suddenly: Shut down the engine and clear tangled weeds; inspect the transmission belt for looseness or damage.
Crawler slips frequently on slopes: Clean mud and grass attached to tracks; adjust track tension to standard tightness.
Remote control signal lag: Replace the remote controller battery; ensure working distance stays within 200 meters.
Difficult diesel engine startup: Check diesel quality; clean air filter and remove carbon deposits on the spark plug.
Machine drifts during travelling: Check if the left and right driving motors have inconsistent speed parameters.
Excessive vibration while crushing: Inspect deformed blades; fasten all loose bolts on the cutter assembly.
Generator fails to charge the battery: Check wiring connectors; avoid long-term operation under excessive load.
Abnormal noise inside track assembly: Remove foreign debris stuck in the crawler; regularly lubricate driving bearings.
