Product Overview

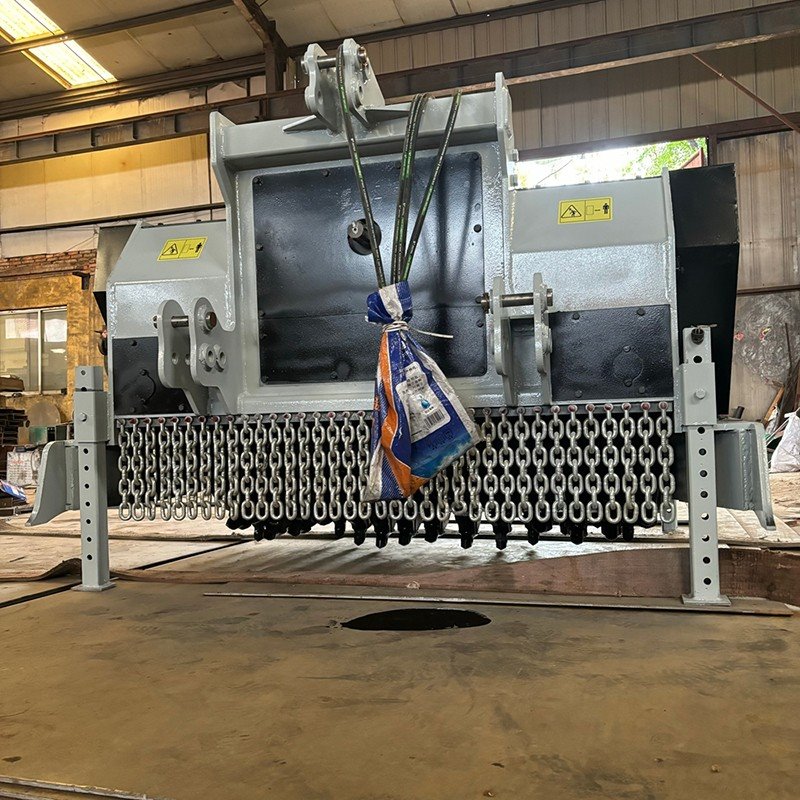

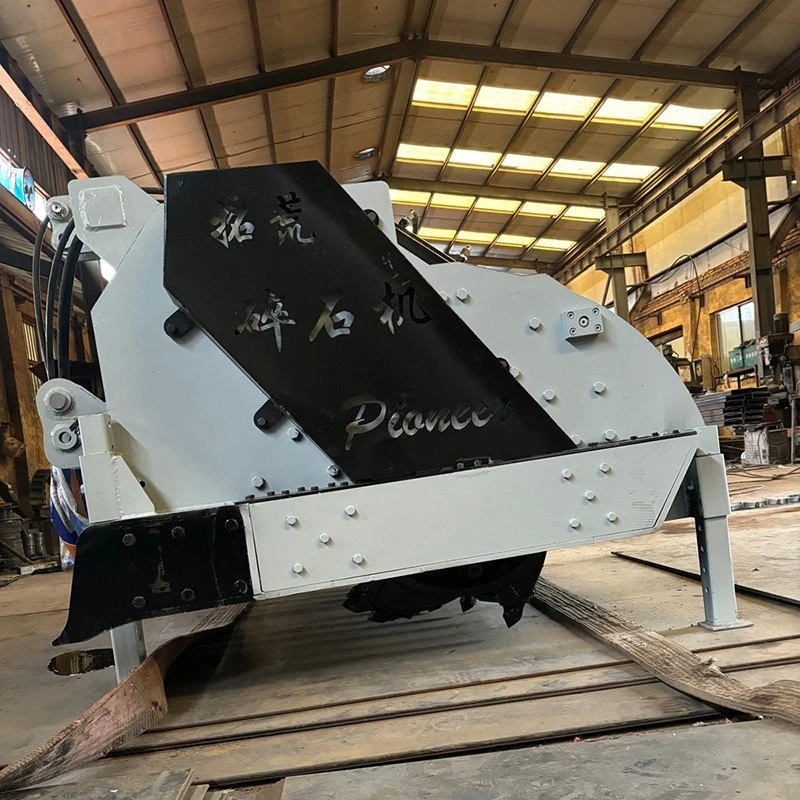

The 2-meter land reclamation stone crusher stands as an industry-leading infrastructure asset engineered for high-intensity rocky soil transformation. Featuring an expanded 2000mm working width, this equipment integrates massive dynamic torque with a specialized internal crushing chamber to pulverize embedded boulders and conditioned terrain simultaneously. Driven by a dual-side heavy transmission system and protected by an automated torque-limiting assembly, it serves as a premiere Rock and soil mixer that homogenizes tough soil strata with gravel on the spot. For contractors demanding exceptional throughput in the most punishing conditions, this pioneer gravel equipment delivers uncompromised ground-clearing performance.
Target Applications
Subsoil Conditioning & Stabilizing
Operates as a heavy-duty Hard soil pulverizer to break up hardpan layers and improve soil permeability for commercial agriculture.
Arable Land Expansion
Serves as a high-capacity Land stone crusher to rapidly reclaim rocky plains, shorelines, and glacial till for high-yield farming.
Greenfield Civil Projects
Acts as indispensable Pioneer gravel equipment for cutting primitive access roads, grading wind farm layouts, and stabilizing remote jobsites.
Forestry Floor Re-engineering
Easily grinds through hidden stumps, roots, and scattered stones to optimize the ground for sustainable replanting.
After-Sales Service by ZHIHAO MACHINERY
At ZHIHAO MACHINERY, we guarantee long-term operational security through our proactive international service ecosystem:
Global Warranty: A full 12-month structural integrity warranty against manufacturing defects on main frames and drive lines of 2-meter land reclamation stone crusher.
Rapid Parts Delivery: We maintain a dedicated export inventory of wear-resistant alloy teeth, custom seals, and drive belts for immediate international dispatch within 48 hours.
Live Engineering Desk: Direct access to ZHIHAO's senior mechanical engineers via video link for setup validation and operational tuning.
OEM Customization: Tailored PTO input speeds, targeted mounting frames, and specific wear-plate layering to match your local geological conditions.
FAQs
Q1: What are the primary tractor requirements to run this 2-meter stone crusher?
A: To maximize the 2-meter working capacity, we recommend a tractor with 160 to 240 HP, a Category 3 three-point linkage, and a 1000 RPM PTO output.
Q2: How deep can this 2-meter land reclamation stone crusher cultivate, and how is that depth maintained?
A: It reaches a maximum working depth of 25 cm. The depth is managed via the heavy rear height-adjustable skids and hydraulic leveling tailboard.
Q3: What makes the ZHIHAO tooth design superior to standard industry teeth?
A: Our teeth utilize a premium forged matrix embedded with ultra-hard carbide inserts, designed specifically to withstand repeated high-impact shearing forces from heavy stones.
Q4: Does the internal chamber feature replaceable wear liners?
A: Yes, the entire internal crushing chamber is lined with bolt-on, highly wear-resistant Hardox-grade steel plates that can be easily swapped out during major overhauls.
Q5: How does the drivetrain prevent damage if the rotor hits an immovable solid rock ledge?
A: The main PTO shaft is fitted with a specialized multi-disc oil-bath slip clutch that instantly disengages torque when a critical resistance threshold is crossed.
Q6: What is the optimal driving speed when operating in heavily rocky fields?
A: For optimal pulverization and safety, the recommended ground speed ranges between 0.5 to 1.5 km/h, depending entirely on stone density and soil moisture.
Q7: Can this unit handle both dry, baked hardpan and damp, clay-heavy soils?
A: Absolutely. The high-velocity rotor design prevents soil packing, allowing the machine to mix dry rocky soils and wet clay effectively without clogging the rear gate.
Q8: How is the product packed to prevent damage during long-distance ocean transit?
A: Every machine is thoroughly coated with anti-rust inhibitors, secured onto a heavy-duty iron pallet base, and wrapped in industrial-grade moisture-proof film inside the container.
