Product Introduction

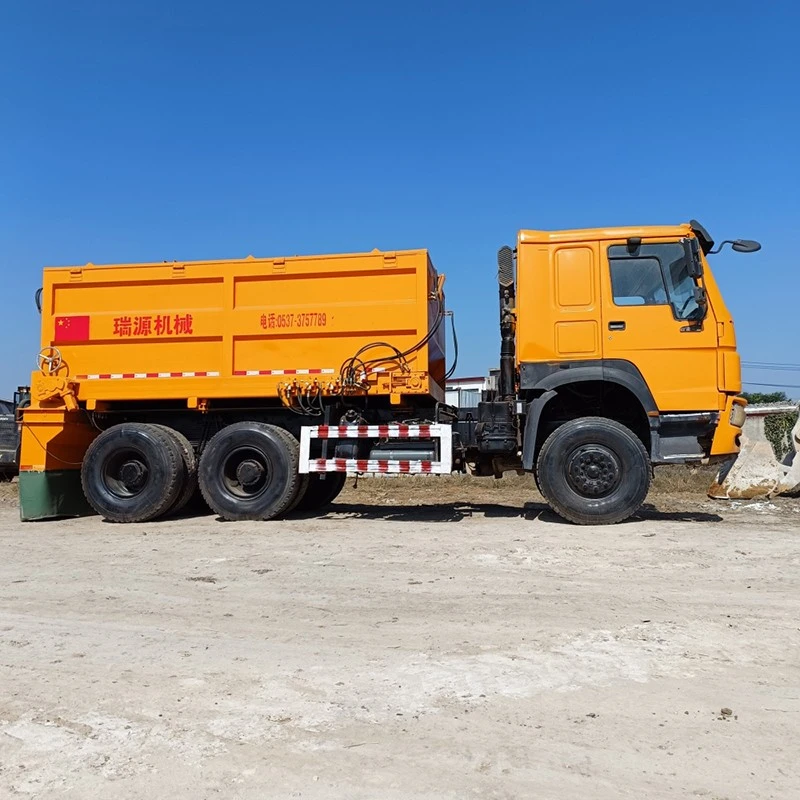

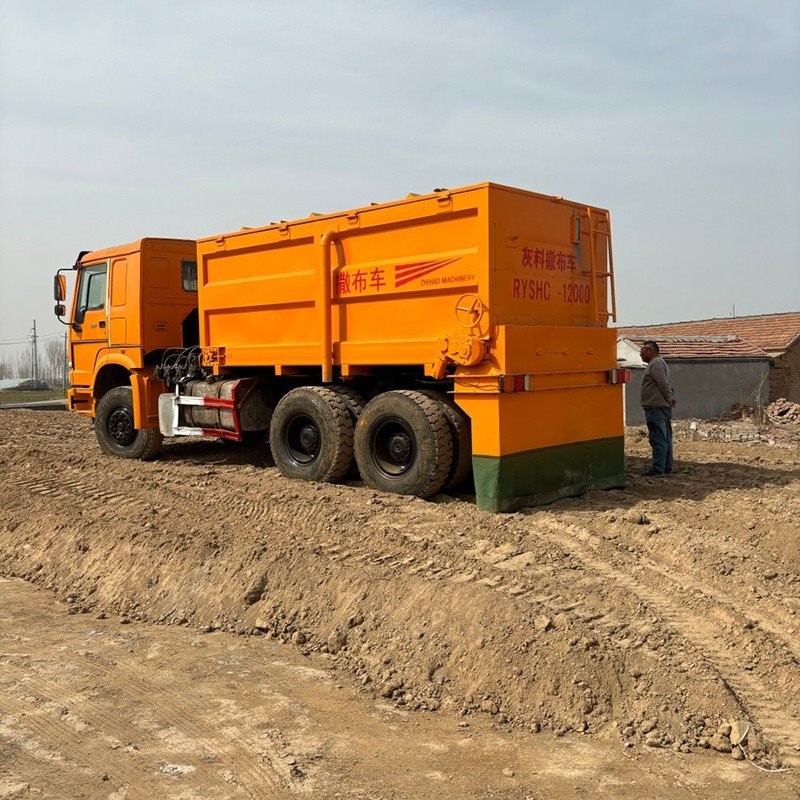

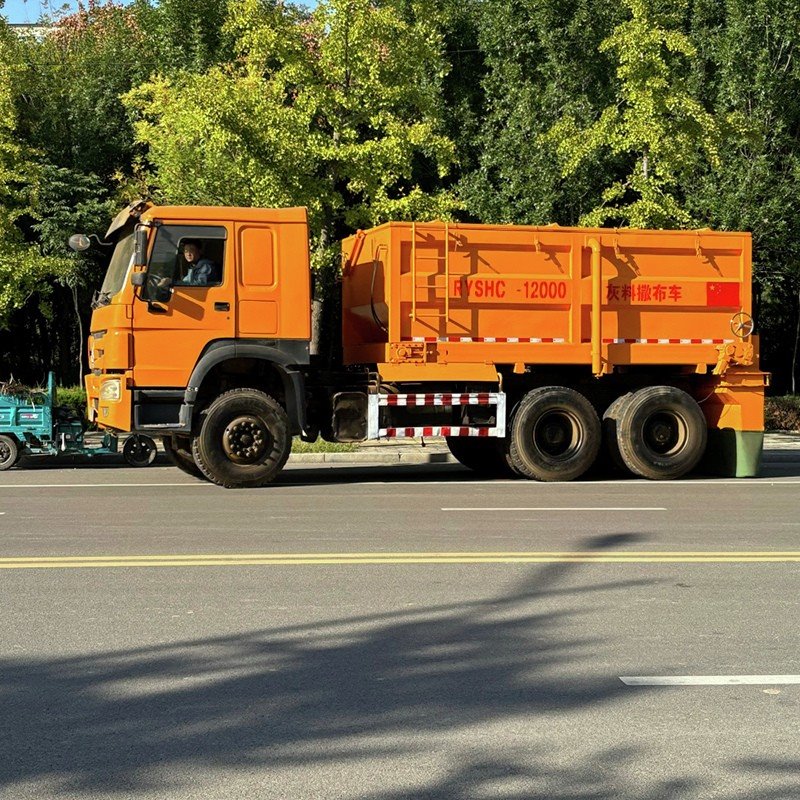

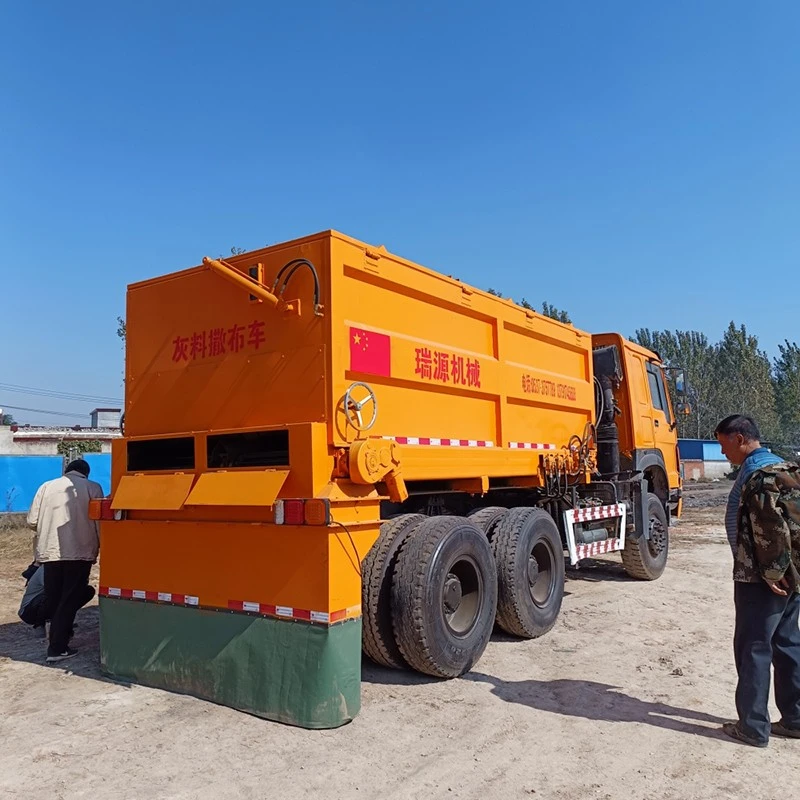

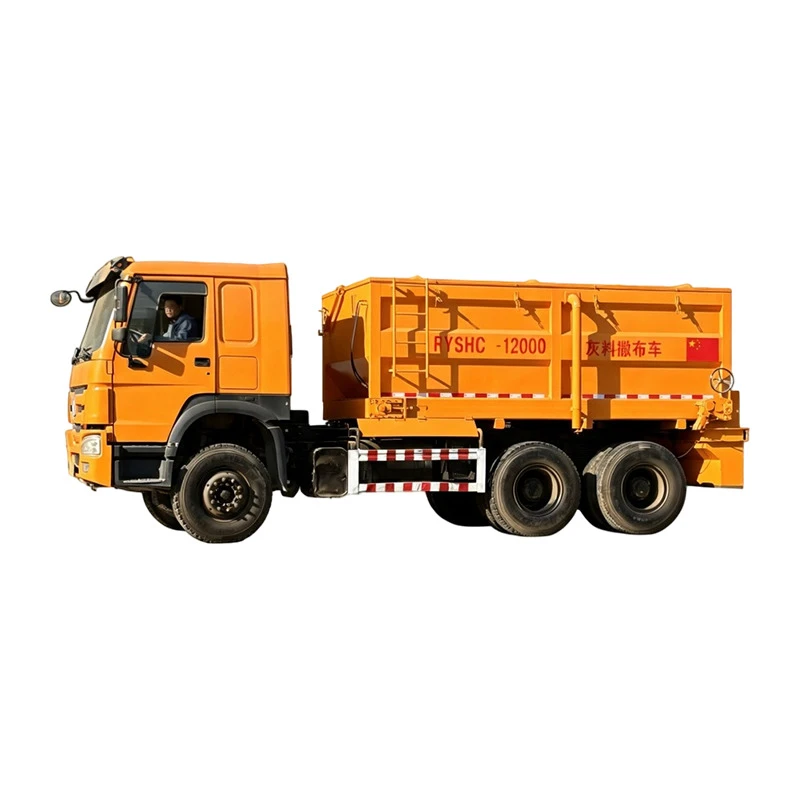

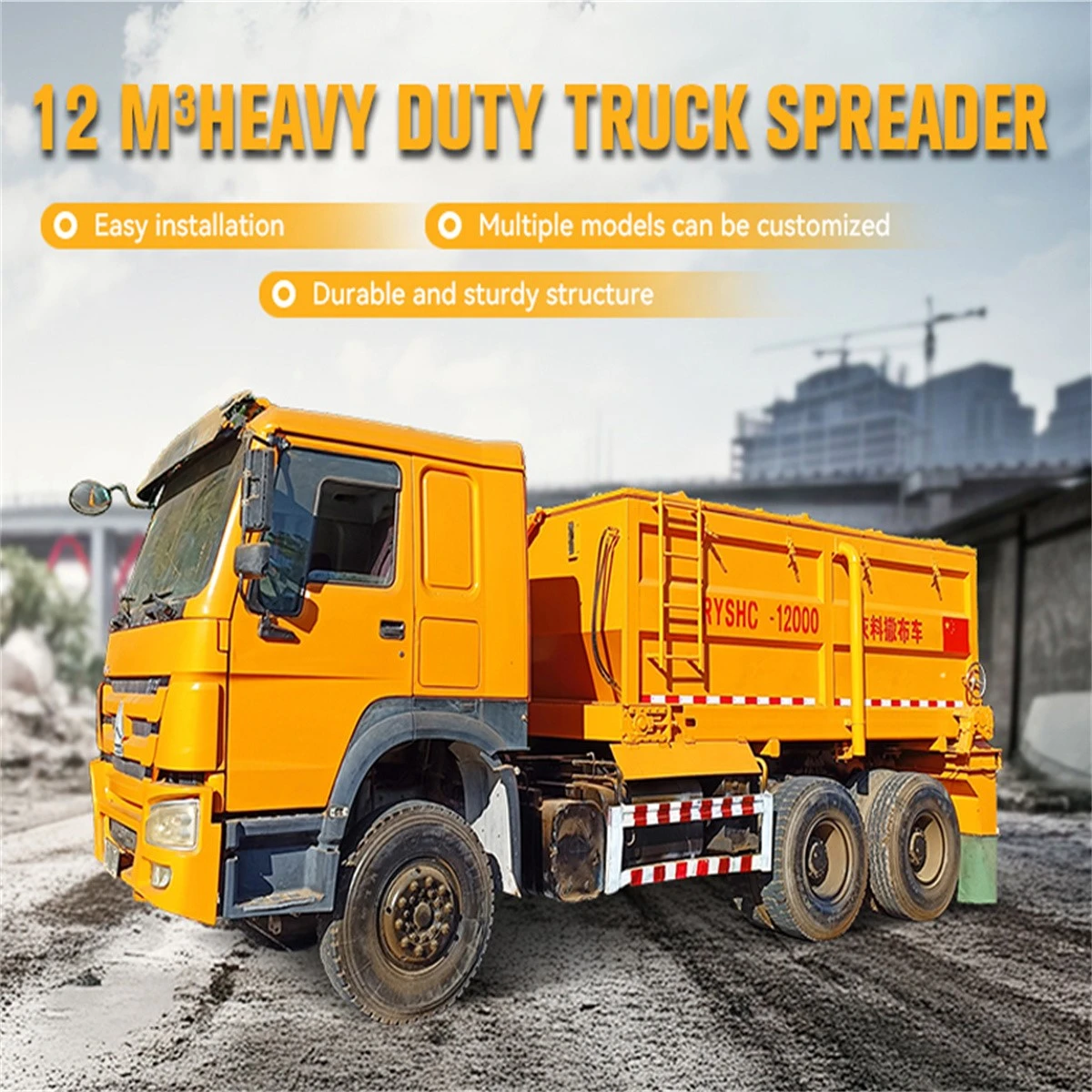

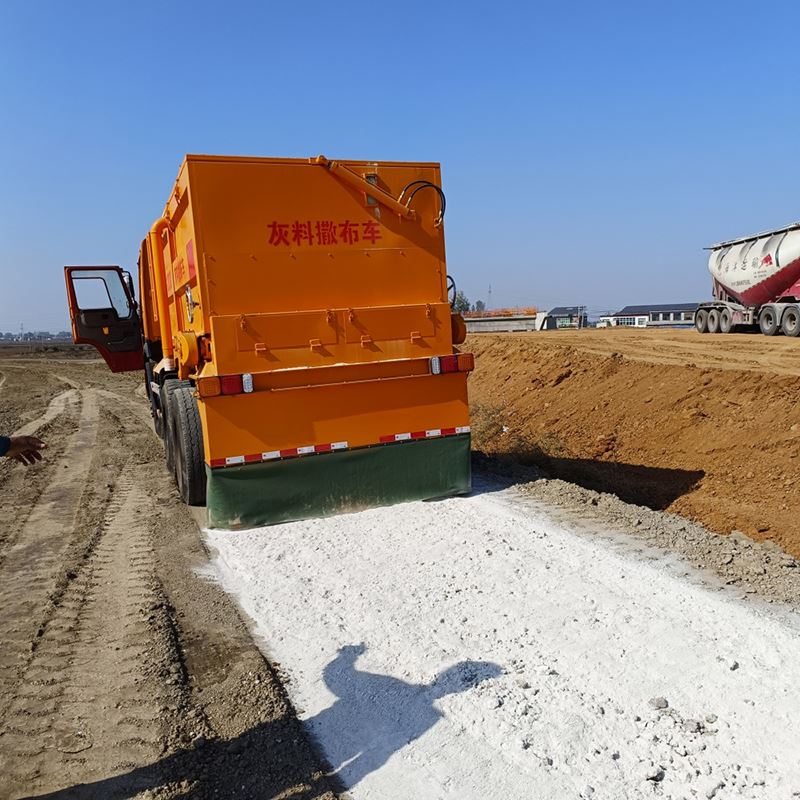

The RYSHC-12000 self propelled spreader is a heavy-duty truck-mounted road construction spreader refitted on dual-rear axle heavy truck chassis, integrating powerful vehicle chassis and proprietary hydraulic spreading system. This series covers multiple customizable volumes including the compact 8m³ self-propelled spreader, 10m³, 12m³, 14m³ and 16m³ models. Serving as a precise quantitative spreader and multi-purpose cement spreading truck, it uniformly distributes quicklime, hydrated lime, cement and other dry powder stabilizers for subgrade stabilization, supporting both dry and wet spreading modes. All control operations are finished inside the cab with preset parameter storage, greatly boosting construction automation and reducing manual operation intensity for highway and municipal projects.

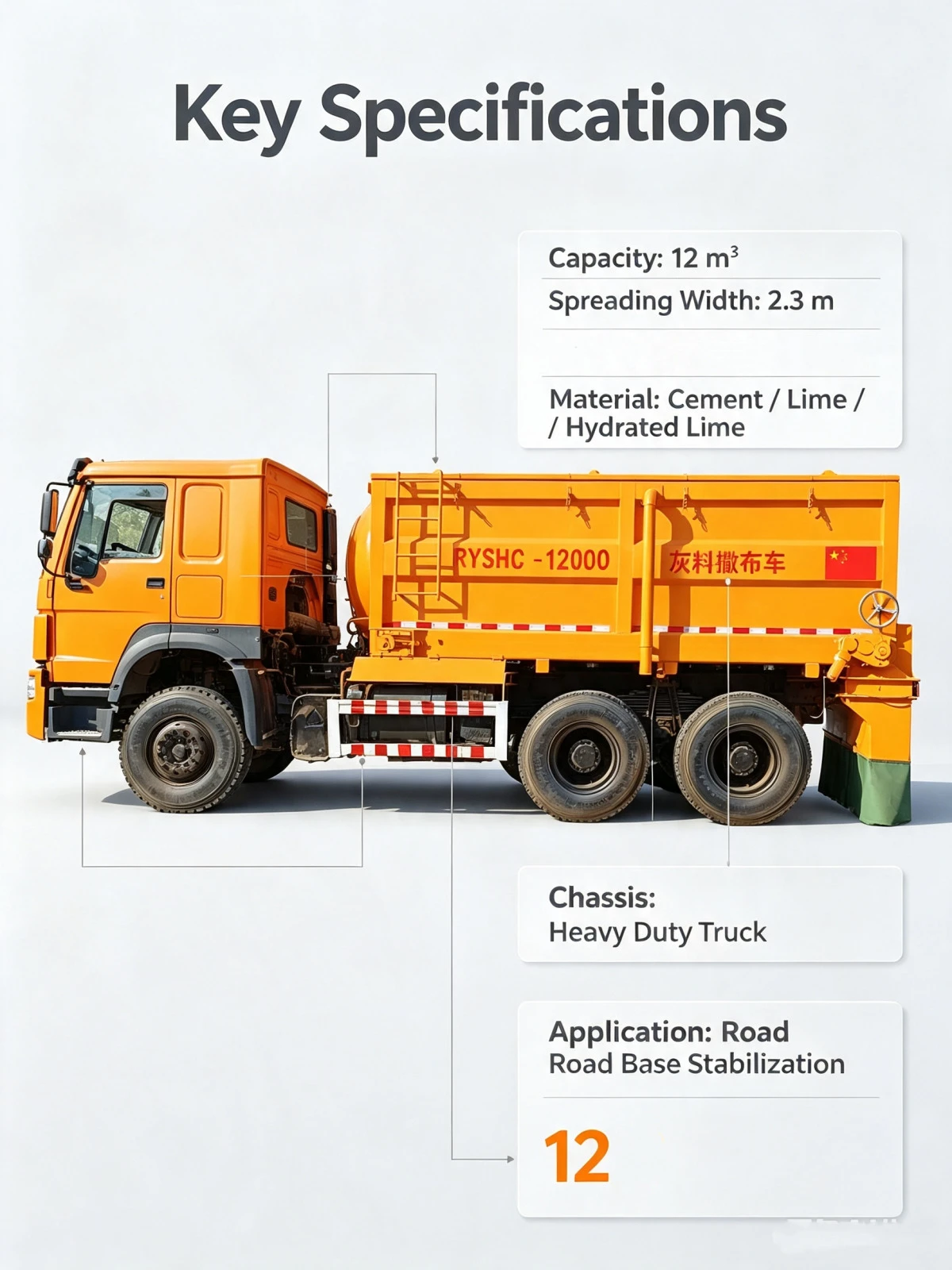

Core Technical Parameter Table
|
Specification Item |
RYSHC-12000 Self Propelled Spreader |
|
Model Number |
RYSHC-12000 |
|
Core Outer Size |
471023501580 mm (1640 mm height with base) |
|
Adjustable Spreading Width |
1000 mm to 2250 mm |
|
Compatible Chassis |
Used dual-rear heavy truck chassis |
|
Discharge Control |
Hydraulic valve single-side independent discharge |
|
Cover & Screen Structure |
Hydraulic lifting cover and filter screen |
|
Drive Configuration |
Double-row chains + dual independent drive motors |
|
Customizable Tank Volume |
8 / 10 / 12 / 14 / 16 cubic meters |
|
Applicable Materials |
Quicklime, hydrated lime, cement, dry & wet dual-use powder |
Core Competitive Advantages
Heavy Truck Chassis Foundation: High load-bearing dual-rear axle chassis delivers strong power and outstanding mud passing performance, free of sinking on rough rural construction sites.
Precise Quantitative Spreading System: As a professional quantitative spreader, dual-chain dual-motor design realizes uniform powder output, eliminating uneven spreading defects of old-fashioned spreaders.
Full In-Cab Intelligent Control: Operators adjust spreading width, discharge volume and single-side discharge mode directly inside the cab, supporting parameter memory for repeated construction sections.
Hydraulic Lifting Dustproof Cover: Automatically lift the screen cover for quick cleaning and maintenance, effectively suppressing powder flying waste.
Multi-Volume Customization: Flexible tank capacity options from 8 cubic meters to 16 cubic meters match small farm roads and large municipal trunk road projects separately.

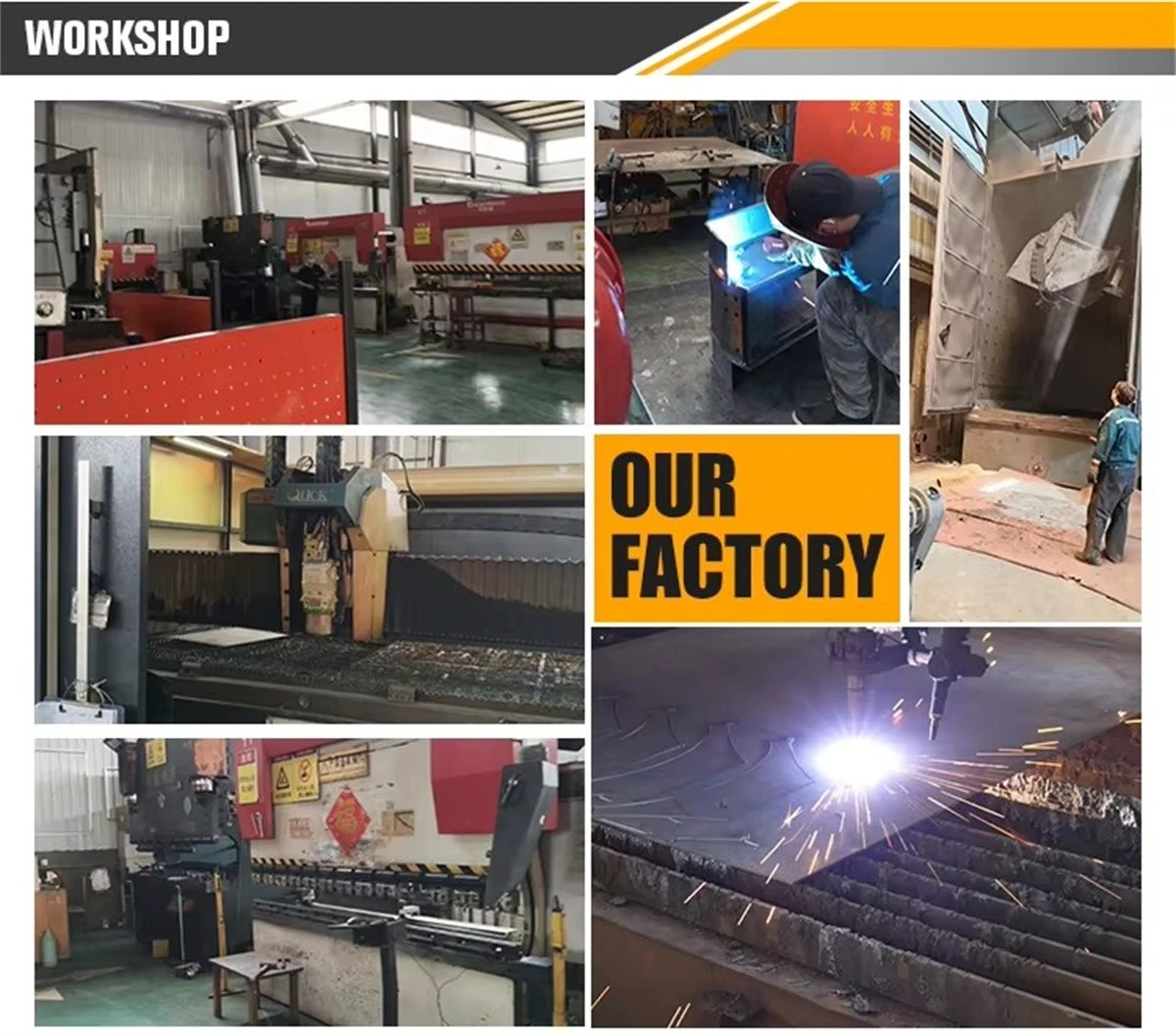

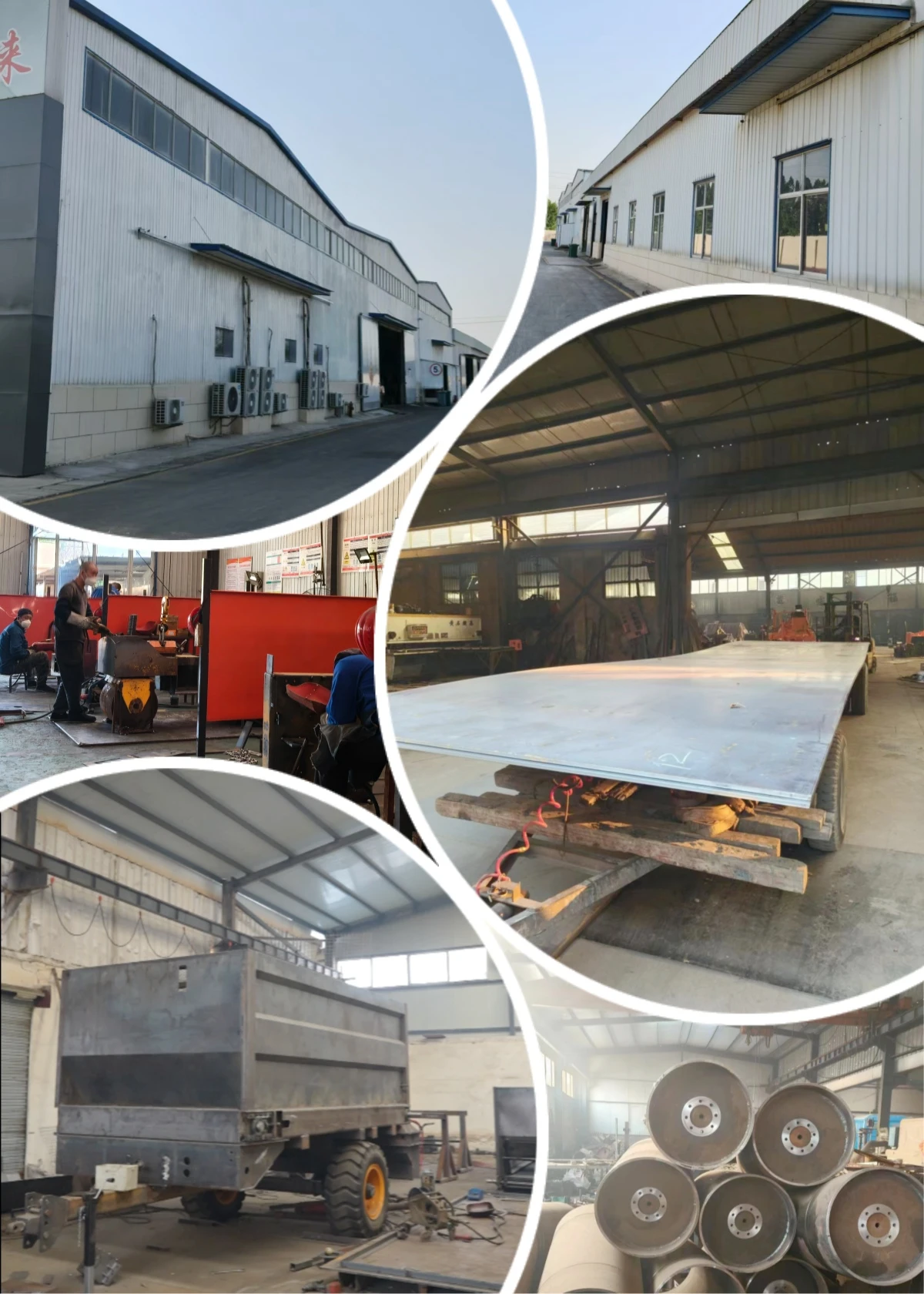

Advanced Manufacturing & Assembly Technology
1.High-strength carbon steel cutting and full penetration welding for the powder storage tank, with anti-corrosion spray coating to resist alkaline lime corrosion.
2.Independent hydraulic loop layout for spreading system, separated from truck chassis oil circuit to avoid power interference.
3.Hot-forged wear-resistant chain plates and alloy discharge teeth, with reinforced tensioners to prevent chain slipping under heavy powder load.
4.Complete pre-delivery debugging: Test hydraulic lifting, single-side discharge and quantitative spreading functions to guarantee stable output before shipment.
Common Customer Fault Solutions
1.Road construction spreader shows inconsistent spreading thickness during cement spreading Solution: Enter cab control panel to reset preset quantitative parameters; clean powder blockages on dual-chain rollers; adjust hydraulic valve opening to balance left and right discharge flow.
2.8m³ self propelled spreader hydraulic cover fails to lift smoothly Solution: Check hydraulic pipeline for oil leakage and air entrapment; replenish dedicated hydraulic oil; adjust tension springs of the screen cover hinge.
3.Cement spreading truck single-side discharge stops suddenly during continuous operation Solution: Inspect the corresponding drive motor circuit and hydraulic valve; clear large lime agglomerates stuck on the unilateral discharge outlet; lubricate chain drive shafts.
4.Quantitative spreader dual chains slip and skip teeth under full tank load Solution: Tighten chain tensioners evenly on both sides; replace overstretched worn chain segments; regularly remove stone debris mixed into the powder material.
