Product Introduction

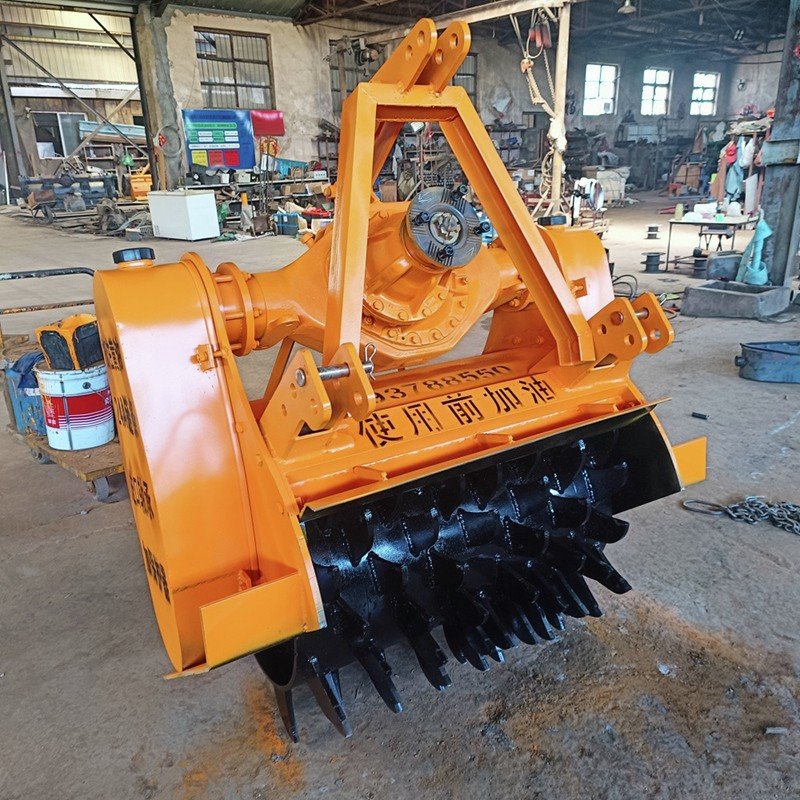

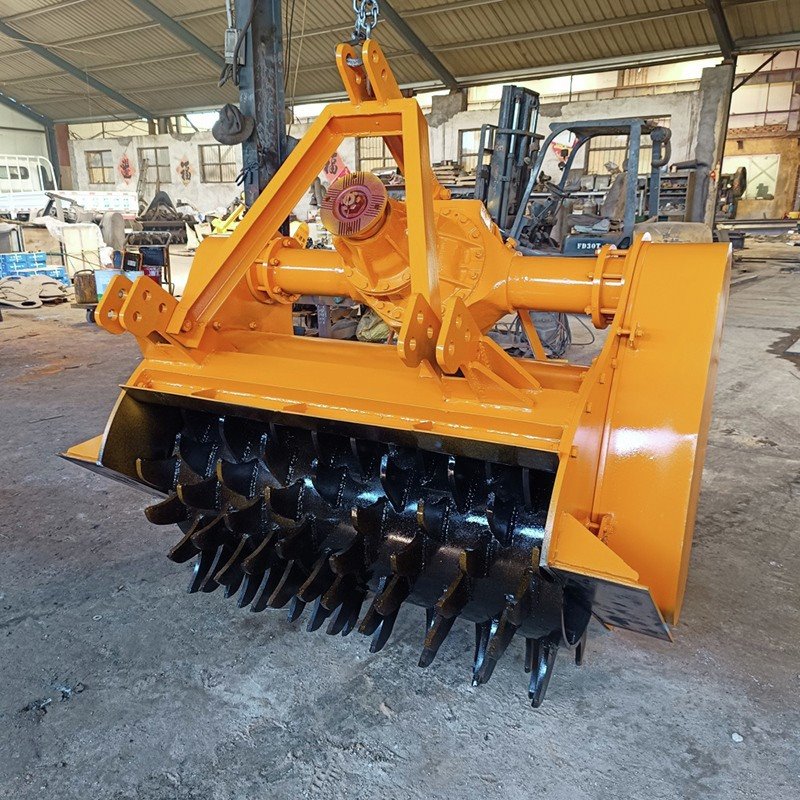

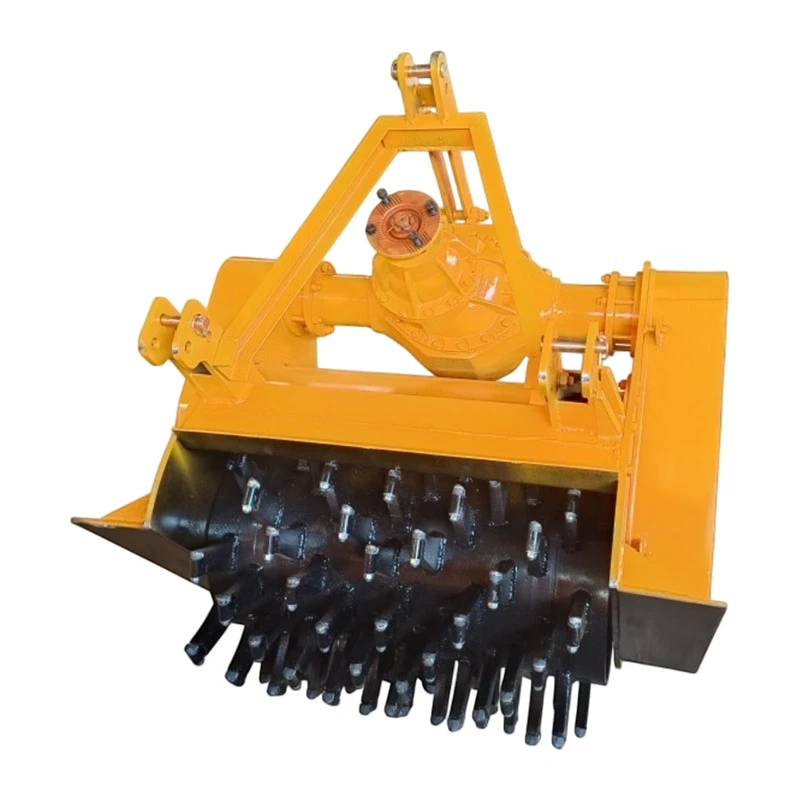

The 14mm fixed blade type tree root crusher is a powerful land-clearing machine designed for professional forestry operations, agricultural development, landscaping projects, and construction site preparation. It is mainly used for crushing tree roots, removing underground obstacles, and processing remaining stumps after tree cutting. With a robust fixed blade structure and high-strength cutting components, this equipment can handle tough wood materials while maintaining stable performance during continuous operation.
Built for demanding working environments, this root crusher provides efficient crushing capability for different types of tree roots and wood residues. The 14mm thick fixed blades are engineered to deliver strong impact resistance and long service life, reducing the frequency of blade replacement and improving overall working efficiency. Whether used for farmland reclamation, forest maintenance, or land leveling projects, this machine helps operators complete difficult clearing tasks with less manual labor.
The equipment can be configured for different working requirements, including compact models similar to a 1m root crusher for smaller areas and larger versions such as a 1.2m root crusher for wider coverage and higher productivity. Its adaptable design allows buyers to select the right working width according to their project scale and machine compatibility.
Specifications
|
Model |
Working Width (m) |
Dimensions |
Weight (kg) |
|
|
Model 800 |
0.8 |
1200*1300*1650mm |
1000 |
|
|
Model 1000 |
1 |
1400*1300*1650mm |
1100 |
|
|
Model 1200 |
1.2 |
1600*1300*1650mm |
1200 |
|
|
Drum Diameter |
508mm |
|||
|
Differential |
Steyr Rear Axle Differential |
|||
|
Spline Shaft |
Model 90 |
|||
|
Optional Blade Plate |
14mm fixed blade plate / 16mm blade holder version / 25mm detachable tip blade version |
|||
Product Advantages
One of the key advantages of the 14mm fixed blade type tree root crusher is its durable cutting system. The fixed blade design provides strong cutting force and reliable contact with hard materials, making it suitable for processing dense roots, buried wood, and stubborn tree remains. Compared with traditional manual removal methods, this machine significantly improves operation speed and reduces labor costs.
The heavy-duty frame structure is manufactured to withstand harsh outdoor conditions, including continuous impact, vibration, and uneven terrain. High-quality materials help extend equipment lifespan while maintaining consistent performance during long working hours. The optimized crushing chamber design also improves material discharge efficiency, preventing excessive blockage during operation.
Another important benefit is operational flexibility. The machine can be used as a professional stump crusher for removing leftover tree bases and preparing land for future planting or construction. It can also function as a reliable stump shredder, breaking large wooden residues into smaller pieces that are easier to handle, transport, or recycle.
For international buyers, maintenance convenience and transportation efficiency are also important considerations. The compact structure allows easier installation and movement between different job sites. Replacement parts are designed for convenient access, helping users reduce downtime and improve project scheduling.
Working Principle
(In-soil pulverization and direct incorporation into the soil)

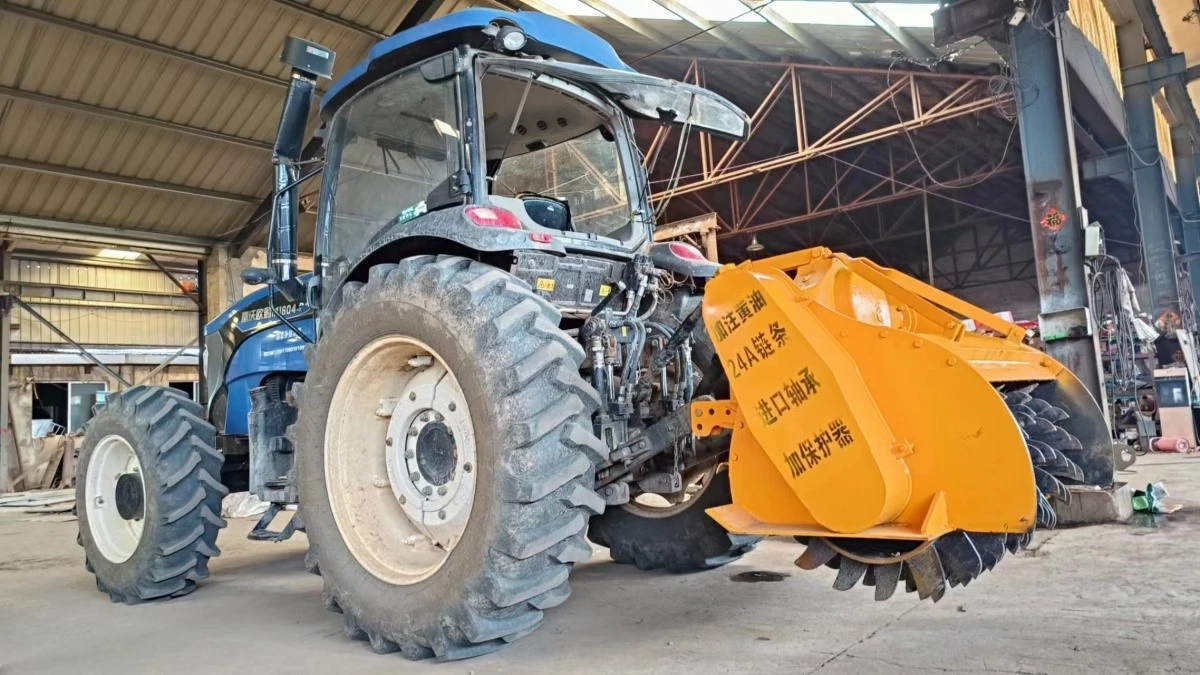

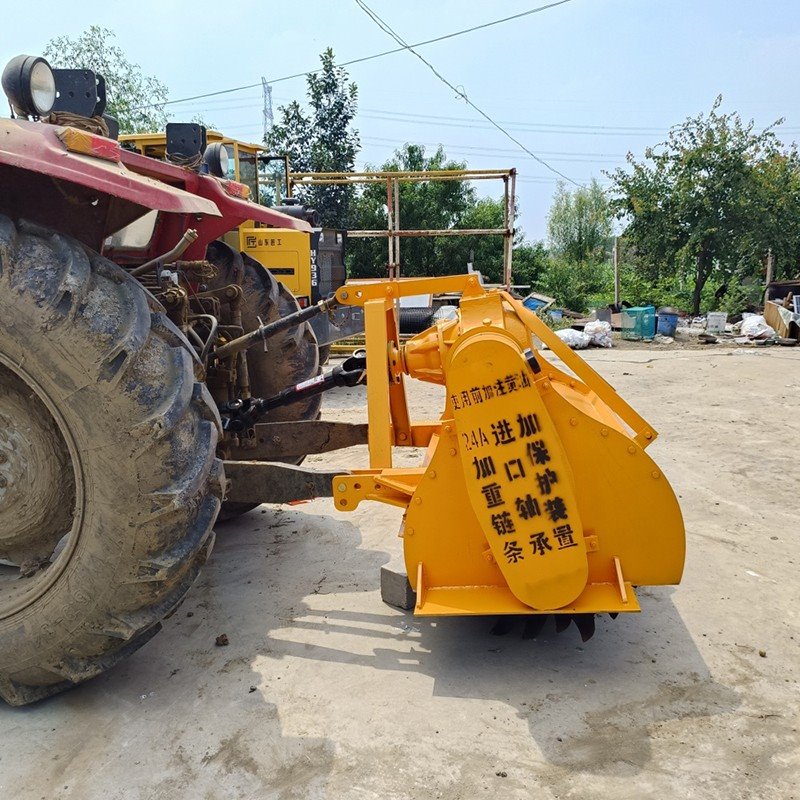

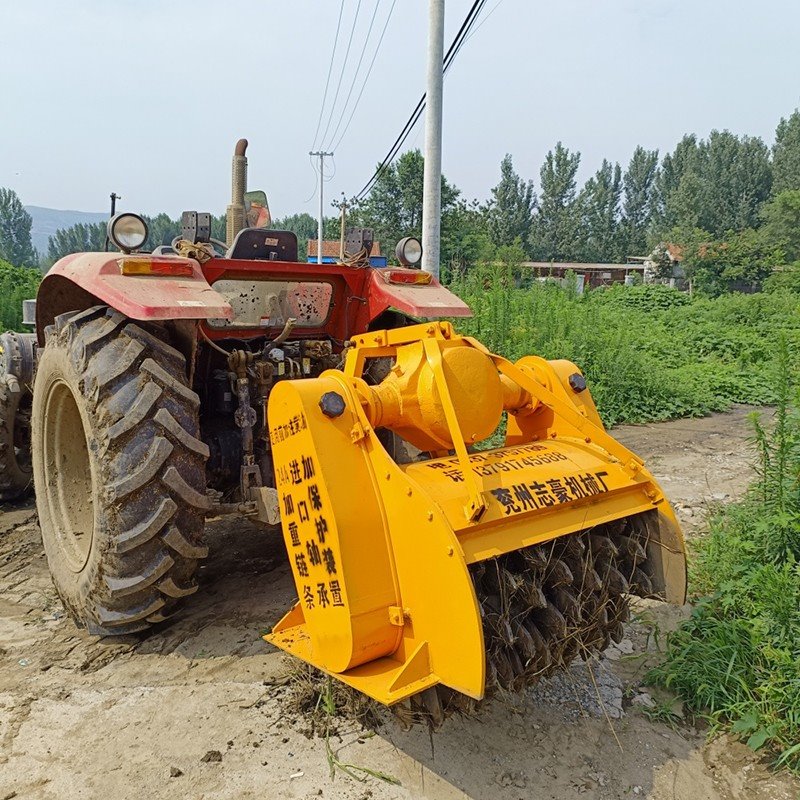

Powered by the tractor's rear three-point hitch and PTO, the cutter shaft rotates at high speed in reverse.
The cutting heads penetrate the soil to a depth of 20–30 cm, pulverizing tree roots, stumps, and lateral roots through a combination of cutting, hammering, and shredding.
The resulting debris is evenly mixed into the soil, enriching it with organic matter and improving soil quality.
The ground remains level after operation, allowing for immediate rotary tilling, seeding, or new seedling planting.
Applications
1. Orchard renovation (apples, pears, peaches, cherries) and converting forest land back to arable land.
2. Stump removal in nurseries, woodlands, and landscaping projects.
3. Root pulverization and land preparation on barren hills, slopes, and tidal flats.
4. Clearing old tree roots and scrub from farmland to restore cultivation.
Company Services
We provide complete support for customers from product selection to after-sales service. Our professional team can recommend suitable equipment specifications based on working conditions, machine requirements, and expected production capacity. Customized solutions are available for customers who need different working widths, configurations, or performance adjustments.
Before shipment, each unit undergoes strict quality inspection to ensure the cutting system, transmission components, and structural parts meet operational standards. We also provide detailed operation guidance, maintenance recommendations, and technical support to help customers achieve stable long-term performance.
For overseas customers, we offer reliable communication, spare parts assistance, and efficient service solutions. Our goal is to help distributors, contractors, and end users reduce operating risks and maximize equipment value throughout the product lifecycle.
Common Problems and Solutions
1. Reduced crushing efficiency
If the machine shows lower cutting performance, the main causes may include worn blades, improper operating speed, or excessive material hardness. Regular inspection of the cutting edge and timely blade maintenance can restore normal performance. Adjusting the working speed according to material conditions also helps improve efficiency.
2. Abnormal vibration during operation
Strong vibration may result from loose components, uneven blade wear, or improper installation. Operators should check fastening parts, inspect blade conditions, and ensure all components are correctly adjusted before continued use.
3. Overheating during long-term operation
Continuous heavy-duty work may increase equipment temperature. Proper lubrication, regular cleaning, and avoiding overload operation can effectively reduce heat accumulation and extend machine service life.
4. Difficulty handling large tree knots
For extremely hard wood sections or thick underground roots, operators should gradually process the material instead of forcing the machine. Choosing the appropriate working speed and maintaining sharp cutting components can improve crushing results.
The 14mm fixed blade type tree root crusher is designed to provide reliable performance, easy maintenance, and strong adaptability for modern land-clearing applications. With durable construction and professional support, it offers an efficient solution for customers seeking a dependable tree knot crusher for demanding outdoor projects.
